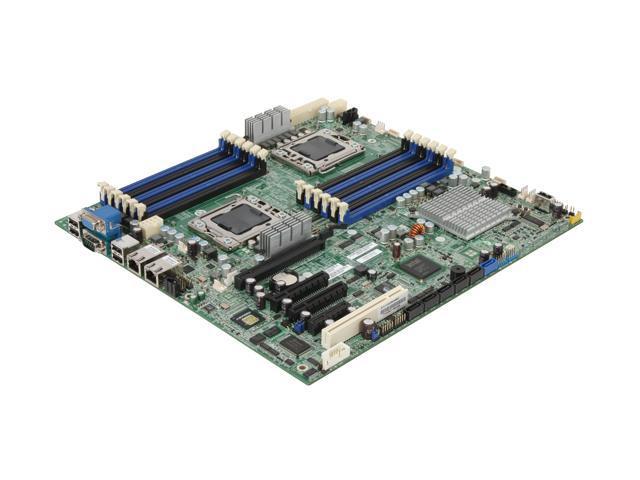

Tyan S7010AGM2NRF Motherboard S7010AGM2NRF
- Standard Memory: 0MB (Removable)
- Maximum Memory: 96GB Reg ECC RDIMMs, 48GB ECC UDIMMs
- Memory Expansion: 6 Sockets (3 Banks of 2) per processor, 12 Sockets Total
- CPU: Intel Xeon 5500/ 5600 Series
- No of Processors: 2
- Chipset: Intel 5520
- Bus Architecture: PCI; PCI Express; USB
- Mfr System P/N: S7010AGM2NRF
- Form Factor: SSI EEB
- Memory Comments: This system supports both ECC and Registered memory. Mixing ECC and Registered modules is not recommended. Due to chipset limitations, DDR3 Quad Rank memory will operate at 1066MHz in the first Triple Channel bank. Adding Quad Rank modules in the second Triple Channel bank will operate at 800MHz. The third memory bank if present must be unpopulated. Any configuration up to 96GB can be reached using any combination of 1, 2, 4 and 8GB ECC Registered modules, or up to 48GB using any combination of 1, 2 and 4GB ECC Unbuffered modules.
Memory Upgrade for Tyan S7010AGM2NRF Motherboard S7010AGM2NRF
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
CT102472BD1339.18FED | Crucial | PC-10600 1333Mhz | 8 GB | ECC Rank 2 | 1.35 | $64.21 | Add to List |
|
NT8GC72C4NB3NJ-CG | Nanya | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.35 | $38.52 | Add to List |
|
M393B1K73DH0-CH9 | Samsung | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $43.94 | Add to List |
|
M391B1G73BH0-CH9 | Samsung | PC-10600 1333Mhz | 8 GB | ECC Rank 2 | 1.5 | $64.43 | Add to List |
|
HMT31GR7BFR8A-H9 | Hynix | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 4 | 1.35 | $38.52 | Add to List |
Memory Upgrade for Tyan S7010AGM2NRF Motherboard S7010AGM2NRF
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D355R4936-24G | 3D Memory | PC-8500 1066Mhz | 24 GB | Registered ECC Rank 4 | 1.5 | $109.78 | Add to List |
|
3D-13D328R2890-24G | 3D Memory | PC-10600 1333Mhz | 24 GB | Registered ECC Rank 2 | 1.5 | $109.78 | Add to List |
|
|
3D-13D355R4935-16G | 3D Memory | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $73.18 | Add to List |
|
|
3D-13D328R2887-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $73.18 | Add to List |
|
|
3D-13D355R4934-8G | 3D Memory | PC-8500 1066Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $36.59 | Add to List |
Accessories Upgrade for Tyan S7010AGM2NRF Motherboard S7010AGM2NRF
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
E5645 | LGA 1366 | E5645 | 6 | 2.40 GHz | $148.81 | Add to List | |
|
L5518 | LGA 1366 | L5518 | 4 | 2.13 GHz | $67.75 | Add to List | |
|
L5638 | LGA 1366 | L5638 | 6 | 2.00 GHz | $113.81 | Add to List | |
|
E5504 | LGA 1366 | E5504 | 4 | 2.00 GHz | $102.05 | Add to List | |
|
L5618 | LGA 1366 | L5618 | 4 | 1.87 GHz | $226.11 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
WG82574L Intel 82574L Single-Port RJ-45 1Gbps Ethernet Controller$58.18
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
SSDSC2KW010X6 | Intel | SATA 6.0 Gbps | 1 TB | 2.5-inch | Triple Level Cell (TLC) | $450.82 | Add to List |
|
THNSNJ1T02CSX | Toshiba | SATA 6.0 Gbps | 1 TB | 2.5-inch | Multi-level Cell (MLC) | $267.33 | Add to List |
|
MTFDDAK1T0MBF | Micron | SATA 6.0 Gbps | 1 TB | 2.5-inch | Multi-level Cell (MLC) | $267.33 | Add to List |
|
SD7SB7S-960G | SanDisk | SATA 6.0 Gbps | 960 GB | 2.5-inch | Triple Level Cell (TLC) | $332.43 | Add to List |
|
MZ-7WD960T/003 | Samsung | SATA 6.0 Gbps | 960 GB | 2.5-inch | Multi-level Cell (MLC) | $267.36 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
WD4000FYYZ-01UL1B2 | Western Digital | SATA 6.0 Gbps | 4 TB | 3.5-inch | 64 MB | 7200 RPM | $225.21 | Add to List |
|
ST8000NC0002 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $434.06 | Add to List |
|
ST4000NM0024 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $192.00 | Add to List |
|
WD4003FZEX | Western Digital | SATA 6.0 Gbps | 4 TB | 3.5-inch | 64 MB | 7200 RPM | $225.21 | Add to List |
|
ST4000NM0033 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $208.55 | Add to List |
