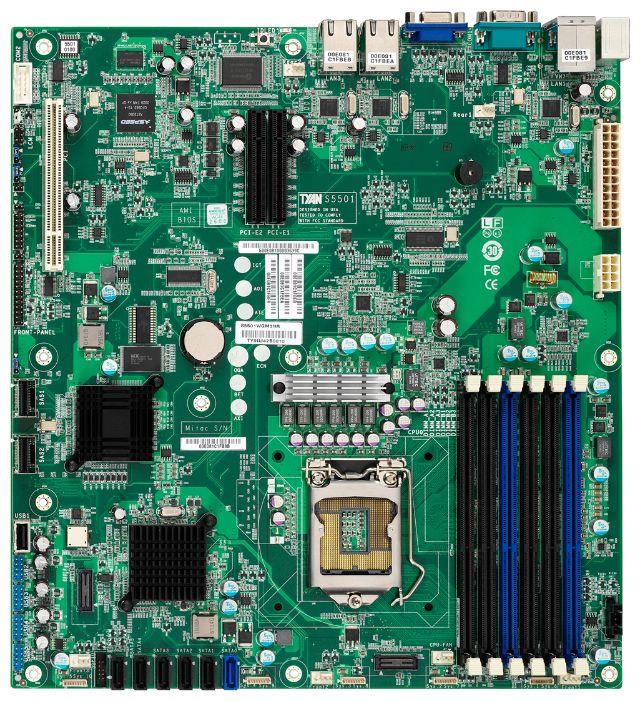

Tyan S5501WGM3NR Motherboard S5501WGM3NR
- Standard Memory: 0GB (Removable)
- Maximum Memory: 32GB Reg ECC RDIMMs or 16GB ECC UDIMMs
- Memory Expansion: 6 Sockets (3 Banks of 2)
- CPU: Intel Xeon 3400 Series
- No of Processors: 1
- Chipset: Intel 3420
- Bus Architecture: PCI; PCI Express; SSD SATA 2.5-inch; USB
- Mfr System P/N: S5501WGM3NR
- Form Factor: ATX
- Memory Comments: This system supports both ECC Unbuffered and Registered memory. Mixing ECC Unbuffered and Registered modules is not recommended. System does not support Non-ECC Unbuffered memory. DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on which Intel Xeon model is used and the number of modules installed. Due to Intel chipset limitations, DDR3 Quad Rank memory will operate at 1066MHz in the first Dual Channel bank. Adding Quad Rank modules in the second Dual Channel bank will operate at 800MHz. System supports 2 quad-rank DIMMs per channel (4 total). Per Tyan specification, system limited to one DIMM per Channel for 1333MHz memory speed. 8GB modules supported up to two DIMMs per Channel (four total). Any configuration up to 32GB can be reached using any combination of 1GB, 2GB, 4GB and 8GB Registered modules, or up to 16GB using any combination of 1GB, 2GB and 4GB ECC Unbuffered modules.
Memory Upgrade for Tyan S5501WGM3NR Motherboard S5501WGM3NR
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
M393B1K73DH0-CH9 | Samsung | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $43.94 | Add to List |
|

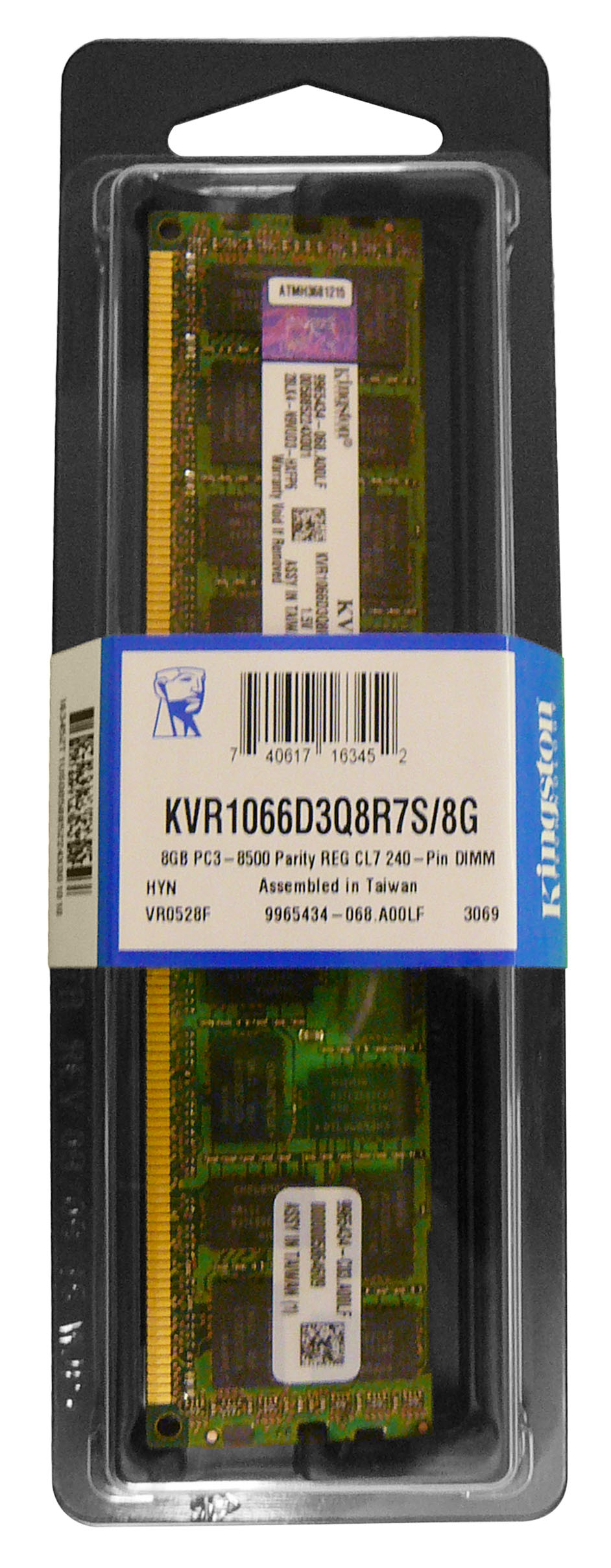

KVR1066D3Q8R7S/8G | Kingston | PC-8500 1066Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $43.94 | Add to List |
|
M393B5173FHD-CF8 | Samsung | PC-8500 1066Mhz | 4 GB | Registered ECC Rank 4 | 1.5 | $42.52 | Add to List |
|

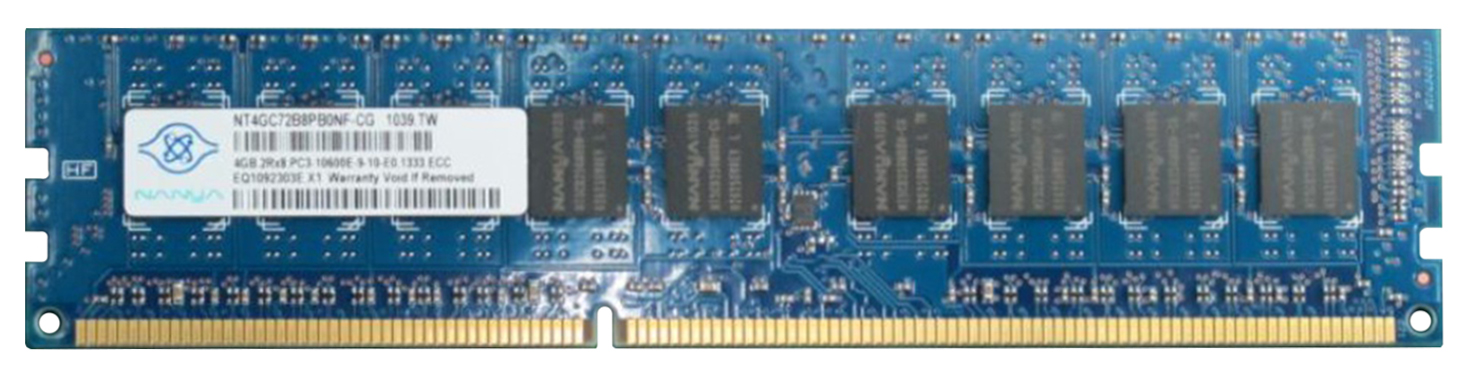

NT4GC72B8PB0NF-CG | Nanya | PC-10600 1333Mhz | 4 GB | ECC Rank 2 | 1.5 | $46.09 | Add to List |
|

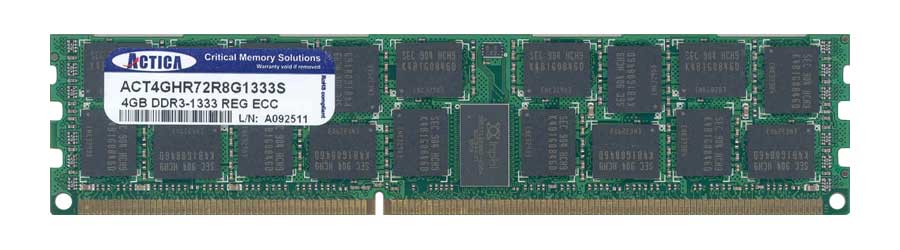

ACT4GHR72R8G1333S | ACTICA | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 4 | 1.5 | $38.27 | Add to List |
Memory Upgrade for Tyan S5501WGM3NR Motherboard S5501WGM3NR
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D347R0827-16G | 3D Memory | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $73.18 | Add to List |
|
3D-15D332R25939-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.5 | $76.54 | Add to List |
|
3D-13D347N721074-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | ECC Rank 2 | 1.5 | $76.77 | Add to List |
|
|
3D-13D347R0815-8G | 3D Memory | PC-8500 1066Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $36.59 | Add to List |
|
3D-15D332R25941-4G | 3D Memory | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 2 | 1.35 | $37.94 | Add to List |
Accessories Upgrade for Tyan S5501WGM3NR Motherboard S5501WGM3NR
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
X3480 | LGA 1156 | X3480 | 4 | 3.06 GHz | $147.84 | Add to List | |
|

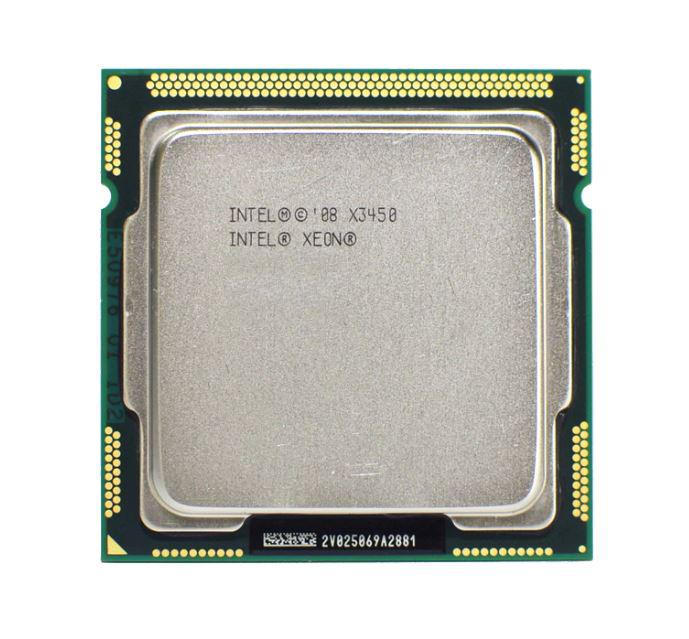

X3450 | LGA 1156 | X3450 | 4 | 2.66 GHz | $121.00 | Add to List | |
|

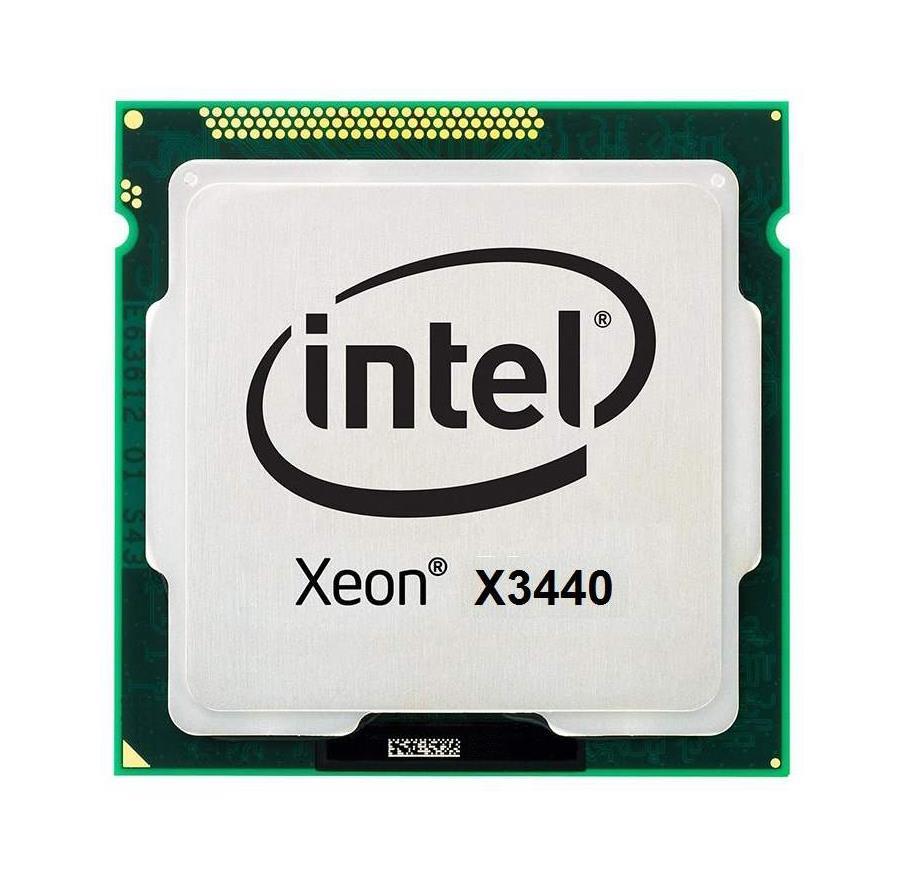

X3440 | LGA 1156 | X3440 | 4 | 2.53 GHz | $121.00 | Add to List | |
|

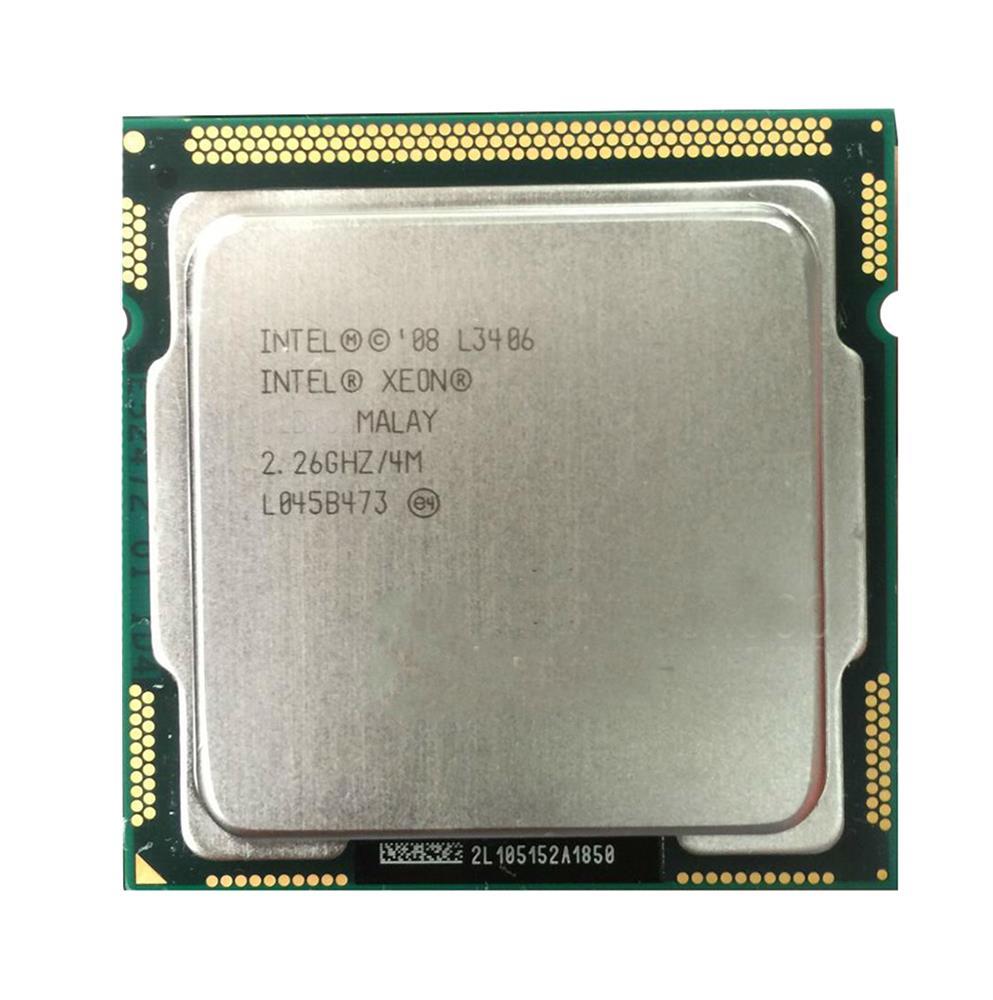

L3406 | LGA 1156 | L3406 | 2 | 2.26 GHz | $316.42 | Add to List | |
|

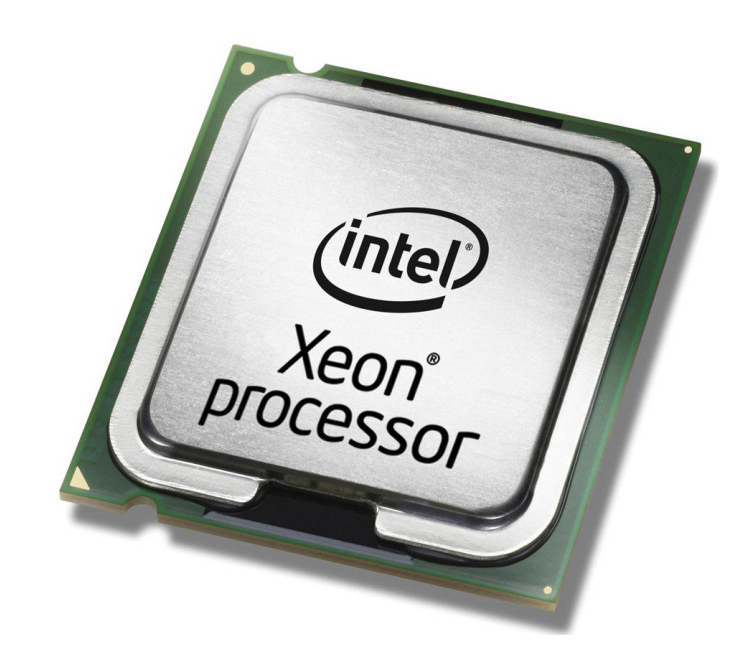

L3403 | LGA 1156 | L3403 | 2 | 2.00 GHz | $68.37 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
WG82574L Intel 82574L Single-Port RJ-45 1Gbps Ethernet Controller$58.18
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
MTFDDAK1T0MBF-1AN1ZABYY | Micron | SATA 6.0 Gbps | 1 TB | 2.5-inch | Multi-level Cell (MLC) | $267.33 | Add to List |
|
SSDSC2KI010X601 | Intel | SATA 6.0 Gbps | 1 TB | 2.5-inch | Triple Level Cell (TLC) | $450.82 | Add to List |
|
THNSNJ1T02CSX | Toshiba | SATA 6.0 Gbps | 1 TB | 2.5-inch | Multi-level Cell (MLC) | $267.33 | Add to List |
|
SD7SB2Q-010T | SanDisk | SATA 6.0 Gbps | 1 TB | 2.5-inch | Multi-level Cell (MLC) | $267.33 | Add to List |
|
TS1TSSD370 | Transcend | SATA 6.0 Gbps | 1 TB | 2.5-inch | Multi-level Cell (MLC) | $267.33 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST8000NC0002 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $434.06 | Add to List |
|
HUS724040ALS640 | Hitachi | SAS 6.0 Gbps | 4 TB | 3.5-inch | 64 MB | 7200 RPM | $132.70 | Add to List |
|
HMS5C4040ALE640 | Hitachi | SATA 6.0 Gbps | 4 TB | 3.5-inch | 64 MB | 5700 RPM | $132.69 | Add to List |
|
ST4000NM0023 | Seagate | SAS 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $131.18 | Add to List |
|
ST4000NM0033 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $208.55 | Add to List |
