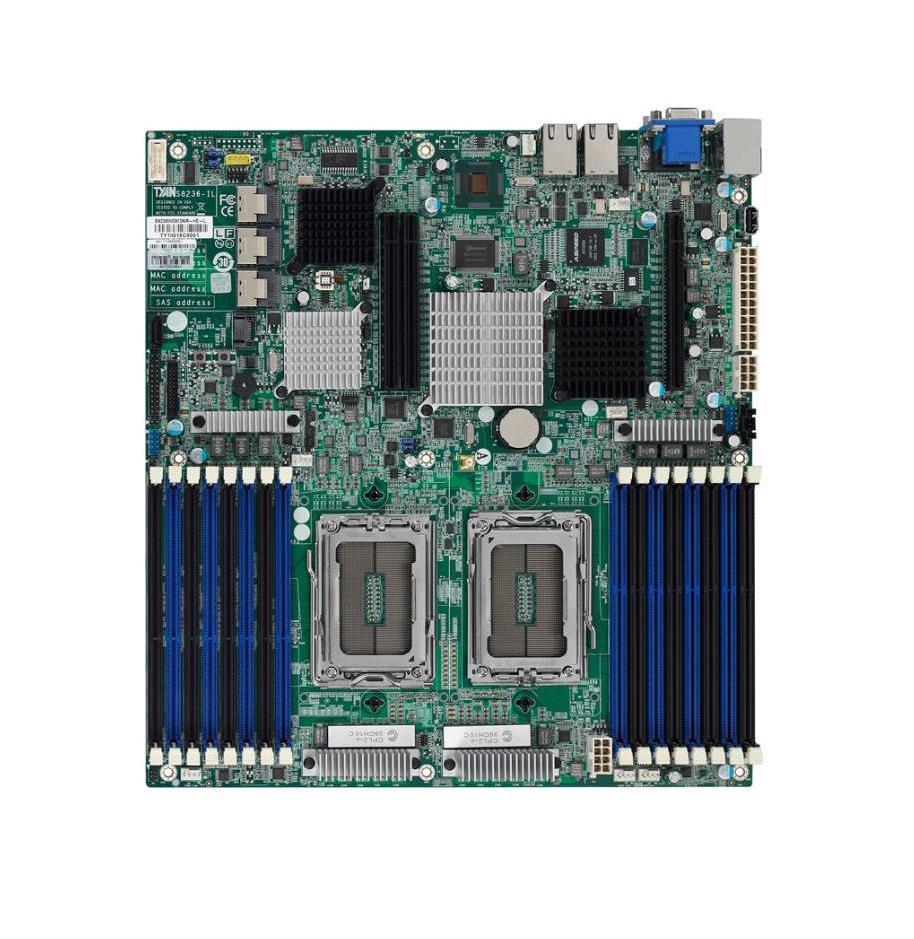

S8236GM3NR-IL Tyan S8236 Socket G34 AMD SR5690 + SP5100 Chipset AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors Support DDR3 16x DIMM 3xGbE 2x SATA 1x Mini-SAS 3.0Gb/s EEB Server Motherboard (Refurbished)
Mfg Part No:
S8236GM3NR-IL
Looking for a large quantity of S8236GM3NR-IL? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for S8236GM3NR-IL
| General Information | |
| Manufacturer Part Number | S8236GM3NR-IL |
| Brand Name | Tyan |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Total Processor Supported | 2 |
| Processor Socket | Socket G34 LGA-1944 |
| Processor Supported |
Opteron Hexadeca-core Opteron Dodeca-core Opteron Octa-core Opteron |
| Memory | |
| Number of Memory Slots | 16 |
| Memory Form Factor |
RDIMM UDIMM |
| Maximum Memory | 256 GB |
| Memory Speed Supported |
1.87 GHz 1.60 GHz 1.33 GHz 1.07 GHz 800 MHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 1+0 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2050 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Total Number of Onboard USB Ports | 4 |
| Physical Characteristics | |
| Form Factor | SSI EEB |
| Width | 13" |
| Depth | 12" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
RoHS-6 WEEE |
Request for Quote: S8236GM3NR-IL
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no S8236GM3NR-IL. Or Request a Quote below:
