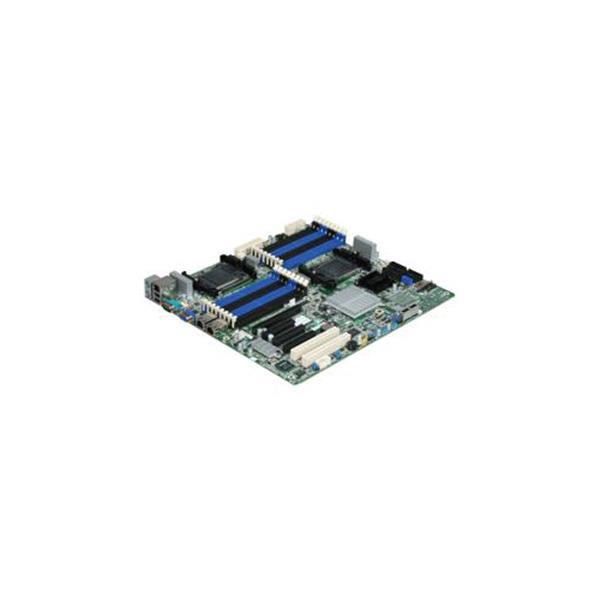

S8212WGM3NR Tyan S8212 Socket LGA 1207 AMD SR5670 + SP5100 / AMD SR5690 + SP5100 Chipset AMD 45nm Quad-Core Opteron 2300/2400 Series Processors Support DDR2 16x DIMM 3xGbE 6x SATA 8x SAS 3.0Gb/s EATX Server Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
S8212WGM3NR
Global Part Number (GPN):
1444973050
Looking for a large quantity of S8212WGM3NR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for S8212WGM3NR
| General Information | |
| Manufacturer Part Number | S8212WGM3NR |
| Brand Name | Tyan |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Total Processor Supported | 2 |
| Processor Socket | Socket F LGA-1207 |
| Processor Supported | Opteron Quad-Core |
| Memory | |
| Number of Memory Slots | 16 |
| Maximum Memory | 128 GB |
| Memory Speed Supported |
800 MHz 667 MHz 533 MHz |
| Memory Technology | DDR2 SDRAM |
| I/O Controller | |
| Controller Type |
Serial Attached SCSI (SAS) Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels |
0 1 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2050 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 6 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x8 Slots | 4 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of SAS Interfaces | 8 |
| Total Number of Onboard USB Ports | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 13" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS-6 |
