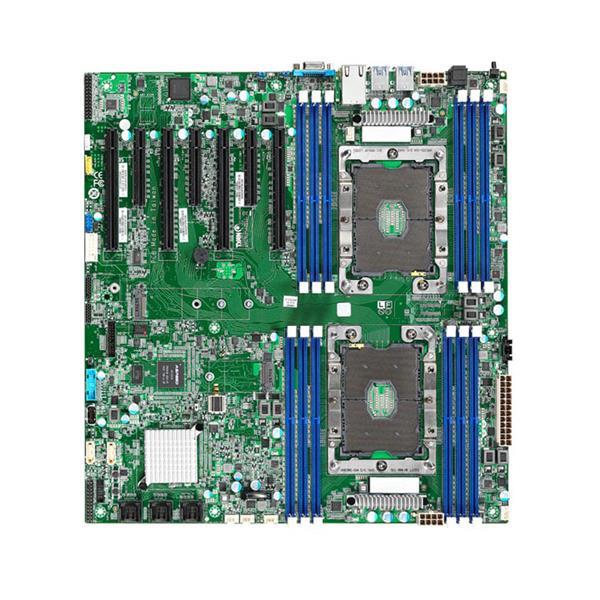

S7100GM2NR Tyan Socket LGA 3647 Intel C622 Chipset Xeon Scalable Processor Support DDR4 12 xDIMM 14x SATA 6.0Gb/s 2x NVMe SSI CEB Server Motherboard (Refurbished)
Mfg Part No:
S7100GM2NR
Looking for a large quantity of S7100GM2NR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for S7100GM2NR
| General Information | |
| Manufacturer Part Number | S7100GM2NR |
| Brand Name | Tyan |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 12 |
| Memory Form Factor |
DIMM LRDIMM RDIMM |
| Maximum Memory | 1.50 TB |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Intel RSTe | Yes |
| RAID Supported | Yes |
| RAID Levels |
10 5 1 0 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 7 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of Mini-SAS Interfaces | 3 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | SSI EEB |
| Width | 13" |
| Depth | 12" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
RoHS-6 WEEE |
| Country of Origin | Taiwan |
