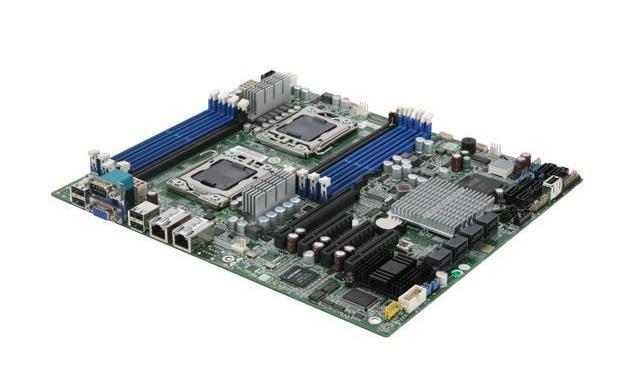

S7002WGM2NR Tyan S7002 Socket LGA 1366 Intel 5520/ICH10R Chipset Intel Xeon 5500/5600 Series Processors Support DDR3 8x DIMM 6x SATA 3.0Gb/s CEB Server Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
S7002WGM2NR
Global Part Number (GPN):
1444972840
Looking for a large quantity of S7002WGM2NR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for S7002WGM2NR
| General Information | |
| Manufacturer Part Number | S7002WGM2NR |
| Brand Name | Tyan |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 2 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM |
| Maximum Memory | 64 GB |
| Memory Speed Supported |
1.33 GHz (O.C.) 1.07 GHz 800 MHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/300 3Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 1+0 1E |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2050 |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of SAS Interfaces | 8 |
| Total Number of Onboard USB Ports | 5 |
| Physical Characteristics | |
| Form Factor | SSI CEB |
| Width | 12" |
| Depth | 10.5" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Request for Quote: S7002WGM2NR
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no S7002WGM2NR. Or Request a Quote below:
