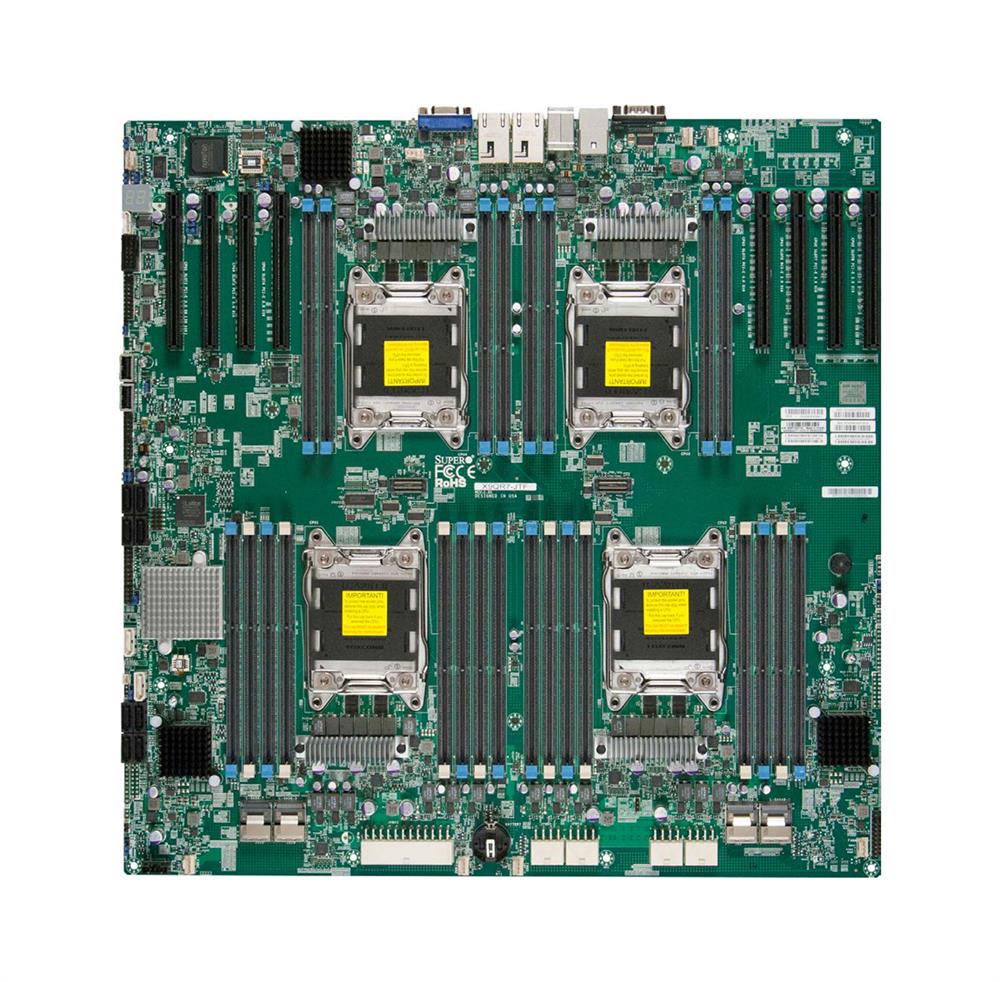

SuperMicro X9QR7-TF-JBOD Motherboard MBD-X9QR7-TF-JBOD-B
- Standard Memory: 0GB (Removable)
- Maximum Memory: 768GB using ECC Load Reduced DIMMs, 768GB Registered DIMMs, 192GB ECC Unbuffered DIMMs
- Memory Expansion: 8 Sockets (2 bank of 4) for 1 and 2, 4 Sockets (2 Banks of 2) for CPU 3 and 4, 24 Sockets (12 Banks of 2) using four CPUs
- CPU: Intel Xeon
- Chipset: Intel C600 Series
- Bus Architecture: PCI Express; SSD SATA 2.5-inch 9.5mm
- Mfr System P/N: MBD-X9QR7-TF-JBOD-B
- Memory Comments: DDR3 modules automatically clock down depending on which Intel Xeon processor is used and the number of modules installed. Due to chipset limitations Quad Rank memory will operate at 1066MHz with 1 DIMM per Channel or 800MHz with 2 DIMMs per Channel. Modules of different memory types CANNOT be mixed within the same system. Please refer to the manual for additional memory instructions. Using LRDIMMs: Any configuration up to 768GB Can be reached using any combination 16GB and 32GB modules in groups of four. Using ECC Registered DIMMs: Any configuration up to 768GB can be reached using any combination 2GB, 4GB, 8GB, 16GB and 32GB modules in Group of four. Using ECC Unbuffered DIMMs: Any configuration up to 64GB can be reached using 2GB, 4GB and 8GB modules in Group of four.
Memory Upgrade for SuperMicro X9QR7-TF-JBOD Motherboard MBD-X9QR7-TF-JBOD-B
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
M386B4G70DM0-YK03 | Samsung | PC-12800 1600Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $101.83 | Add to List |
|
M386B4G70DM0-CMA4 | Samsung | PC-14900 1866Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.5 | $46.14 | Add to List |
|
M386B4G70BM0-YH90 | Samsung | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $101.78 | Add to List |
|
M393B4G70BM0-YH9 | Samsung | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $173.81 | Add to List |
|
M393B2G70DB0-CMA | Samsung | PC-14900 1866Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $79.94 | Add to List |
Memory Upgrade for SuperMicro X9QR7-TF-JBOD Motherboard MBD-X9QR7-TF-JBOD-B
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-14D358R5250-128G | 3D Memory | PC-10600 1333Mhz | 128 GB | Load Reduced ECC Rank 4 | 1.35 | $596.72 | Add to List |
|
3D-14D358R25367-64G | 3D Memory | PC-12800 1600Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $312.93 | Add to List |
|
3D-14D358R25325-64G | 3D Memory | PC-10600 1333Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $312.93 | Add to List |
|
3D-14D358R5268-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $288.85 | Add to List |
|
|
3D-14D358R5248-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.35 | $149.18 | Add to List |
Accessories Upgrade for SuperMicro X9QR7-TF-JBOD Motherboard MBD-X9QR7-TF-JBOD-B
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|

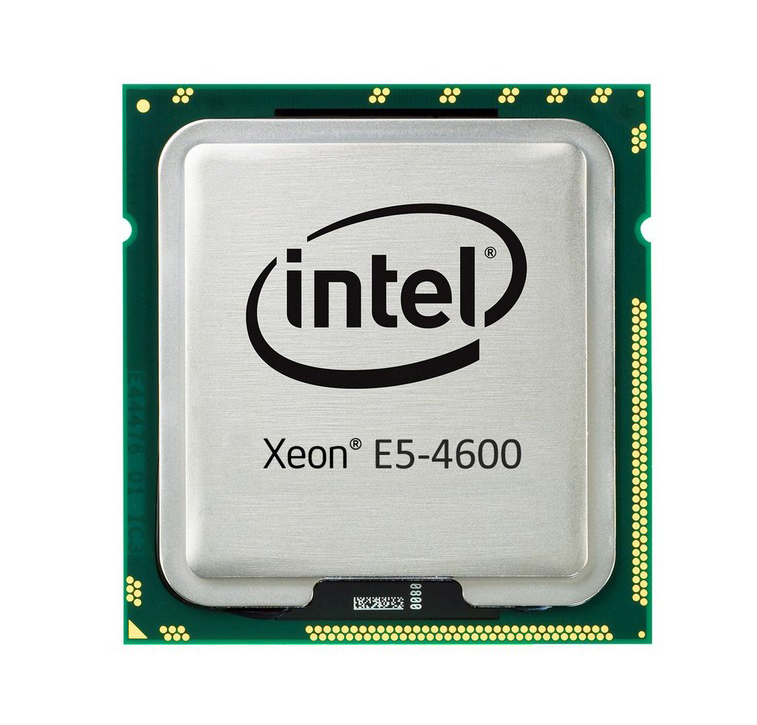

CM8062101190400 | LGA 2011 | E5-4603 | 4 | 2.00 GHz | $67.11 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
X540-T2 Intel Dual-Ports RJ-45 10Gbps 10GBase-T 10 Gigabit Ethernet PCI Express 2.1 x8 Converged Network Adapter$86.45
Power Supplies / Power Protection
Power Supplies
-
Add to List
PWS-1K62P-1R SuperMicro 1620-Watts 220V 1U Redundant 80 Plus Platinum AC Power Supply$120.05
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
SDLLOCDR-038T-5C | SanDisk | SAS 6.0 Gbps | 4 TB | 2.5-inch | Enterprise MLC (eMLC) | $316.09 | Add to List |
|
MZ7LM3T8HCJM-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,207.15 | Add to List |
|
MZ7LM3T8HMLP-00005 | Samsung | SATA 6.0 Gbps | 3.84 TB | 2.5-inch | Triple Level Cell (TLC) | $1,207.15 | Add to List |
|
SDLLOCDR-020T-5C | SanDisk | SAS 6.0 Gbps | 2 TB | 2.5-inch | Enterprise MLC (eMLC) | $250.88 | Add to List |
|
SDLLOC6R-020T-5CA1 | SanDisk | SAS 6.0 Gbps | 2 TB | 2.5-inch | Enterprise MLC (eMLC) | $591.70 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0086 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
ST10000NM0016 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
HUH721010ALE604 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
HUH721010ALE600 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
ST8000NM0206 | Seagate | SATA 6.0 Gbps | 8 TB | 3.5-inch | 256 MB | 7200 RPM | $434.06 | Add to List |
