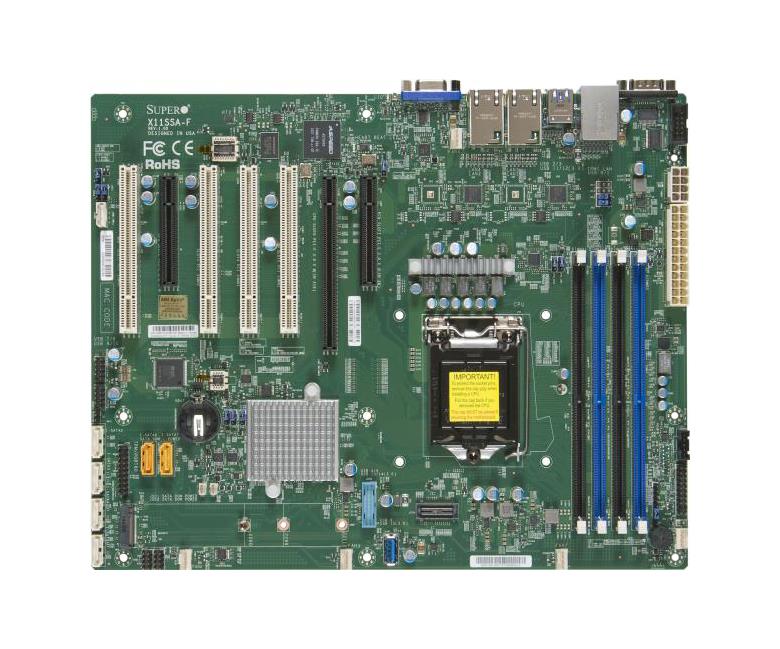

SuperMicro X11SSA-F Motherboard
- Standard Memory: 0GB (Removable)
- Maximum Memory: 64GB
- Memory Expansion: 4 Sockets
- CPU: Intel Xeon E3-1200 v5. Intel Core i3 6th Gen
- No of Processors:
- Chipset: Intel C236
- Bus Architecture: PCI Express; SSD M.2 (TBD); SSD SATA 2.5-inch 9.5mm; USB 2.0/3.x Type-A
- Mfr System P/N: MBD-X11SSA-F-B
- Youtube Link:
- Memory Comments: Modules must be ordered and installed in pairs for Dual Channel mode. If 4GB is installed, the recognized memory may be reduced to 3.5GB or less (depending on system configuration and memory allocation). Maximum configurations require a 64-bit operating system. Depending on which processor you install, different memory modules can be utilized. Intel Xeon and some Intel Core I processors can use ECC or non-ECC UDIMMs. Other Intel Core i processors can only utilize non-ECC UDIMMs. Any configuration up to 64GB can be reached using 4GB, 8GB and 16GB modules.
Memory Upgrade for SuperMicro X11SSA-F Motherboard
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
M391A2K43BB1-CRC | Samsung | PC-19200 2400Mhz | 16 GB | ECC Rank 2 | 1.2 | $242.36 | Add to List |
|
M391A2K43BB1-CPB | Samsung | PC-17000 2133Mhz | 16 GB | ECC Rank 2 | 1.2 | $257.60 | Add to List |
|
M391A1G43EB1-CRC | Samsung | PC-19200 2400Mhz | 8 GB | ECC Rank 2 | 1.2 | $129.15 | Add to List |
|
M391A1G43DB0-CPB | Samsung | PC-17000 2133Mhz | 8 GB | ECC Rank 2 | 1.2 | $129.15 | Add to List |
Memory Upgrade for SuperMicro X11SSA-F Motherboard
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|

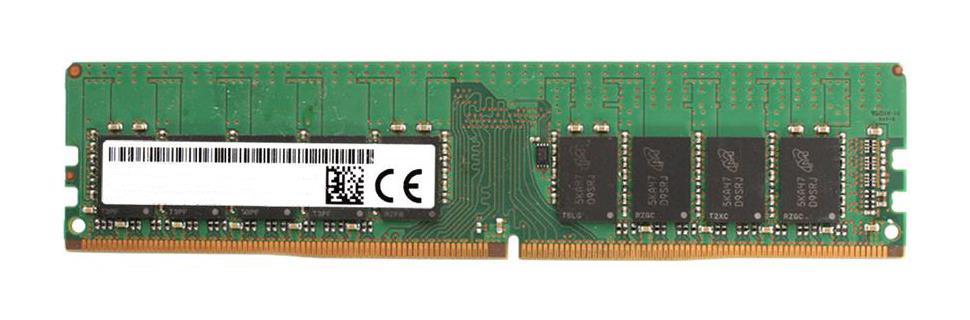

3D-1530N729055-16G | 3D Memory | PC-19200 2400Mhz | 16 GB | ECC Rank 2 | 1.2 | $394.78 | Add to List |
|

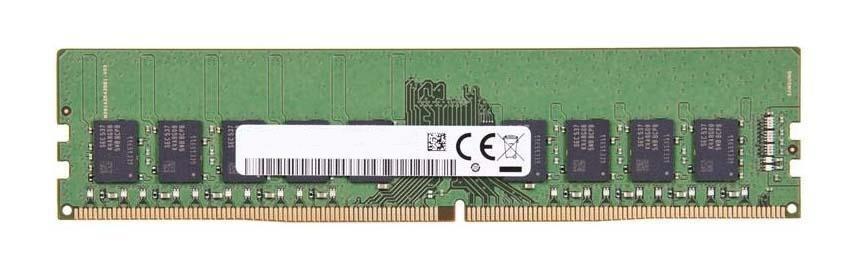

3D-1522N727756-16G | 3D Memory | PC-17000 2133Mhz | 16 GB | ECC Rank 2 | 1.2 | $394.78 | Add to List |
|

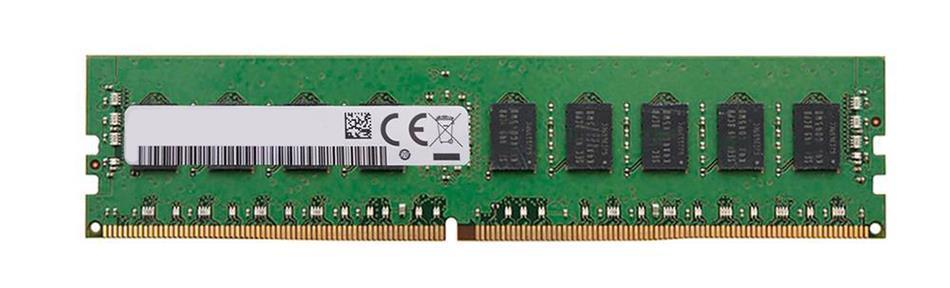

3D-1530N729060-8G | 3D Memory | PC-19200 2400Mhz | 8 GB | ECC Rank 1 | 1.2 | $199.05 | Add to List |
|

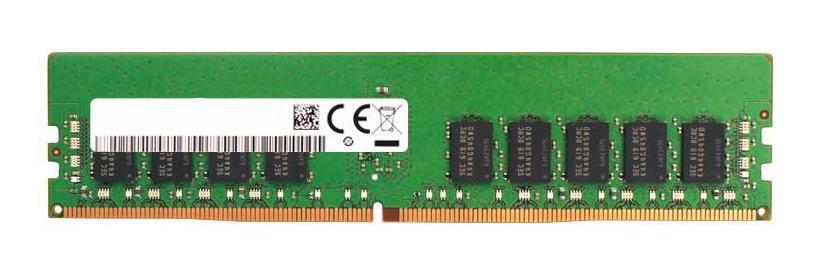

3D-1522N727758-8G | 3D Memory | PC-17000 2133Mhz | 8 GB | ECC Rank 2 | 1.2 | $185.73 | Add to List |
|
|
3D-1530N729057-4G | 3D Memory | PC-19200 2400Mhz | 4 GB | ECC Rank 1 | 1.2 | $71.34 | Add to List |
Accessories Upgrade for SuperMicro X11SSA-F Motherboard
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
CM8067702870931 | LGA 1151 | E3-1275 v6 | 4 | 3.80 GHz | $232.29 | Add to List | |
|
CM8067702870932 | LGA 1151 | E3-1245 v6 | 4 | 3.70 GHz | $121.00 | Add to List | |
|
CM8067702870649 | LGA 1151 | E3-1240 v6 | 4 | 3.70 GHz | $121.00 | Add to List | |
|

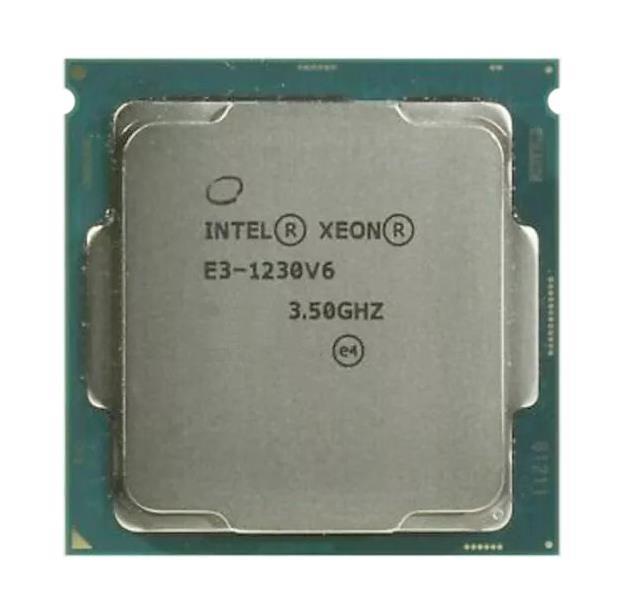

CM8067702870650 | LGA 1151 | E3-1230 v6 | 4 | 3.50 GHz | $121.00 | Add to List | |
|
CM8067702871024 | LGA 1151 | E3-1225 v6 | 4 | 3.30 GHz | $121.00 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
AOC-STGN-I1S SuperMicro Single-Port SFP+ 10Gbps PCI Express 2.0 x8 Gigabit Ethernet Network Adapter (Refurbished)$85.47 -
Add to List
AOC-SGP-I4 SuperMicro Quad-Ports PCI Express 2.1 x4 Gigabit Ethernet Network Adapter$185.13 -
Add to List
AOC-CGP-I2 SuperMicro Dual-Ports 1Gbps PCI Express 2.1 x4 Gigabit MicroLP Network Adapter$121.10 -
Add to List
AOC-STG-I2T SuperMicro Intel X540 Dual-Ports 10Gbps 10GBase-T Network Adapter$95.34
Power Supplies / Power Protection
Power Supplies
-
Add to List
PWS-1K25P-PQ SuperMicro 1200-Watts ATX Multi-Output High-Efficiency 80 Plus Platinum Power Supply$250.41
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
MZ7LM1T9HCJM-00005 | Samsung | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Triple Level Cell (TLC) | $951.87 | Add to List |
|
MTFDDAK1T9TCC-1AR1ZABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
|
MTFDDAK1T9TBY-1AR16ABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
|
MTFDDAK1T9TBY-1AR1ZABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
|
MTFDDAK1T9TCB-1AR16ABYY | Micron | SATA 6.0 Gbps | 1.92 TB | 2.5-inch | Enterprise TLC (eTLC) | $530.99 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0086 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
0F27606 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
0F27604 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
ST10000NM0016 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
HUH721010ALE604 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
