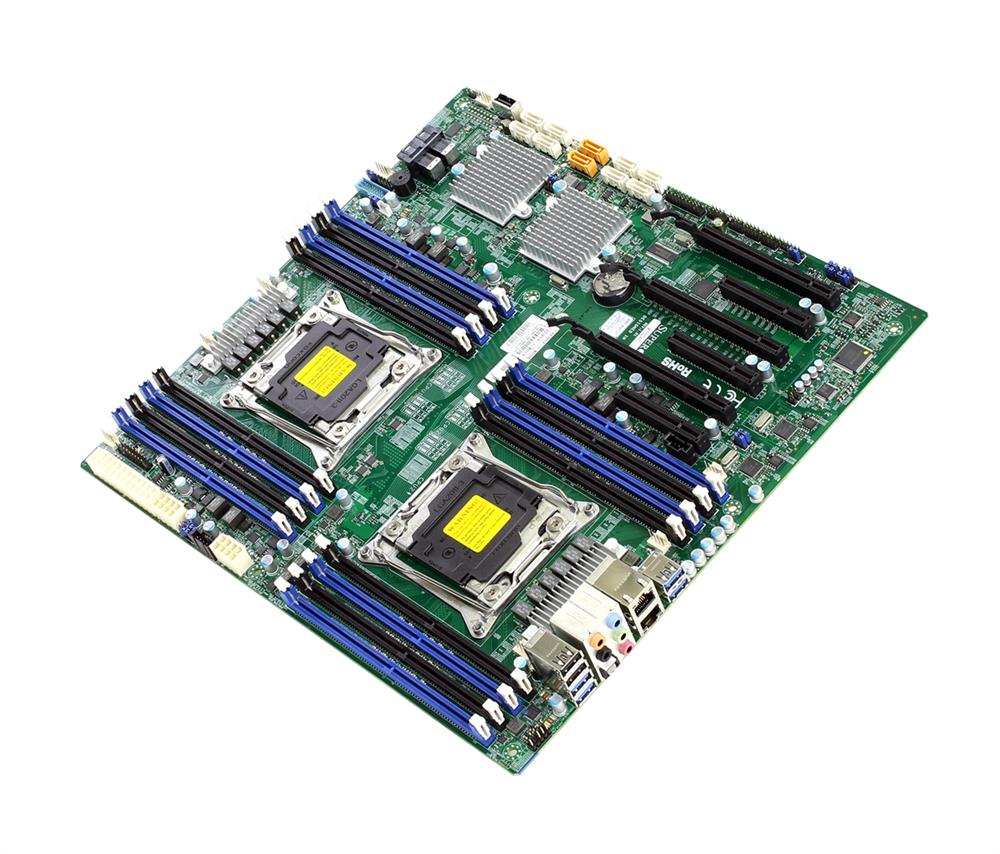

SuperMicro X10DAC Motherboard
- Standard Memory: 0GB (Removable)
- Maximum Memory: 1TB LRDIMMs, 512GB Reg ECC RDIMMs
- Memory Expansion: 8 Sockets per CPU, 16 Sockets with two CPUs
- CPU: Intel Xeon E5-2600 v4/v3 Series
- No of Processors: 2
- Chipset: Intel C610 Series
- Bus Architecture: PCI Express; SSD SATA 2.5-inch 9.5mm; USB
- Mfr System P/N: MBD-X10DAC-B; MBD-X10DAC-O
- Memory Comments: Memory will clock down to run at optimal speed and voltage depending on processor model and number of modules installed. Registered DIMM and Load Reduced DIMM memory modules cannot be mixed within the same system.
Memory Upgrade for SuperMicro X10DAC Motherboard
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
M386A8K40BM1-CRC4Q | Samsung | PC-19200 2400Mhz | 64 GB | Load Reduced ECC Rank 4 | 1.2 | $507.52 | Add to List |
|
M393A8K40B21-CTC | Samsung | PC-19200 2400Mhz | 64 GB | Registered ECC Rank 4 | 1.2 | $759.27 | Add to List |
|
M386A8K40BM1-CPB | Samsung | PC-17000 2133Mhz | 64 GB | Load Reduced ECC Rank 4 | 1.2 | $505.24 | Add to List |
|
M393A8G40D40-CRB | Samsung | PC-17000 2133Mhz | 64 GB | Registered ECC Rank 4 | 1.2 | $967.26 | Add to List |
|
MTA36ASF4G72PZ-2G6H1R | Micron | PC-21300 2666MHz | 32 GB | Registered ECC Rank 2 | 1.2 | $538.29 | Add to List |
Memory Upgrade for SuperMicro X10DAC Motherboard
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-1528R1428-128G | 3D Memory | PC-19200 2400Mhz | 128 GB | Load Reduced ECC Rank 4 | 1.2 | $1,975.09 | Add to List |
|
3D-1518R27953-128G | 3D Memory | PC-19200 2400Mhz | 128 GB | Registered ECC Rank 2 | 1.2 | $1,495.92 | Add to List |
|

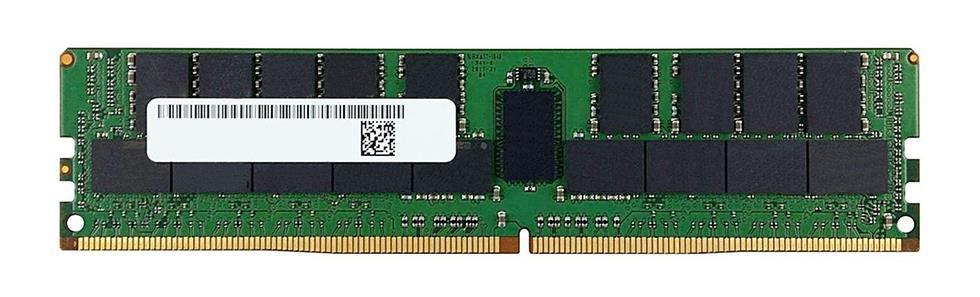

3D-1521R3636-64G | 3D Memory | PC-19200 2400Mhz | 64 GB | Load Reduced ECC Rank 4 | 1.2 | $745.95 | Add to List |
|

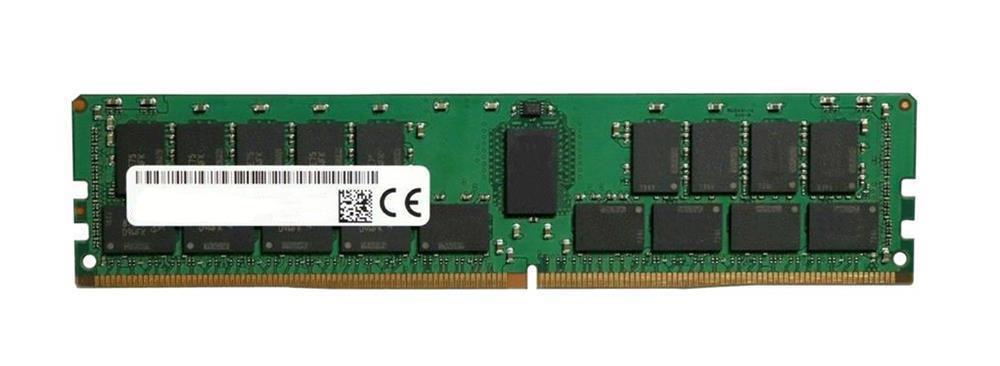

3D-1528R1425-32G | 3D Memory | PC-19200 2400Mhz | 32 GB | Load Reduced ECC Rank 4 | 1.2 | $493.77 | Add to List |
|

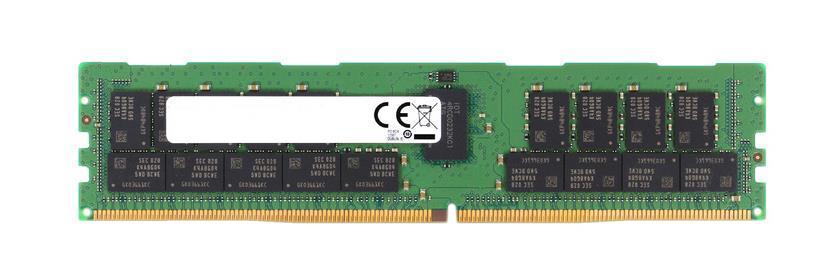

3D-1528R21423-32G | 3D Memory | PC-19200 2400Mhz | 32 GB | Load Reduced ECC Rank 2 | 1.2 | $493.79 | Add to List |
Accessories Upgrade for SuperMicro X10DAC Motherboard
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|
CM8066003197800 | LGA 2011-3 | E5-2699A v4 | 22 | 2.40 GHz | $222.30 | Add to List | |
|
CM8066002044801 | LGA 2011-3 | E5-2658 v4 | 14 | 2.30 GHz | $148.81 | Add to List | |
|
CM8066003216500 | LGA 2011-3 | E5-2699R v4 | 22 | 2.20 GHz | $318.65 | Add to List | |
|
CM8064402331600 | LGA 2011-3 | E5-2658A v3 | 12 | 2.20 GHz | $148.81 | Add to List | |
|
CM8066002189001 | LGA 2011-3 | E5-2648L v4 | 14 | 1.80 GHz | $143.97 | Add to List |
Network & Accessories
Network Adapters
-
Add to List
AOC-STG-B4S SuperMicro Quad-Ports 10Gbps PCI Express 3.0 x8 Gigabit Ethernet Low-Profile Network Adapter$232.81 -
Add to List
AOC-SGP-I2 SuperMicro Dual-Ports 1Gbps PCI Express 2.1 X4 Low-Profile Network Adapter$64.04 -
Add to List
AOC-STGN-I1S SuperMicro Single-Port SFP+ 10Gbps PCI Express 2.0 x8 Gigabit Ethernet Network Adapter (Refurbished)$85.47 -
Add to List
MCX353A-FCBT Mellanox ConnectX-3 VPI FDR Single-Port QSFP 56Gbps PCI Express 3.0 x8 Network Adapter$88.88 -
Add to List
MCX354A-FCBT Mellanox ConnectX-3 Dual-Ports 56Gbps QSFP+ 10 Gigabit Ethernet PCI Express 3.0 x8 Network Adapter with VPI$110.31
Power Supplies / Power Protection
Power Supplies
-
Add to List
PWS-741P-1R SuperMicro 740-Watts 1U Redundant 80 Plus Platinum Power Supply Module$119.92 -
Add to List
PWS-1K11P-1R SuperMicro 850 / 1010-Watts 48V 1U Redundant DC Power Supply$138.11
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
SDLLOCDR-038T-5C | SanDisk | SAS 6.0 Gbps | 4 TB | 2.5-inch | Enterprise MLC (eMLC) | $316.09 | Add to List |
|

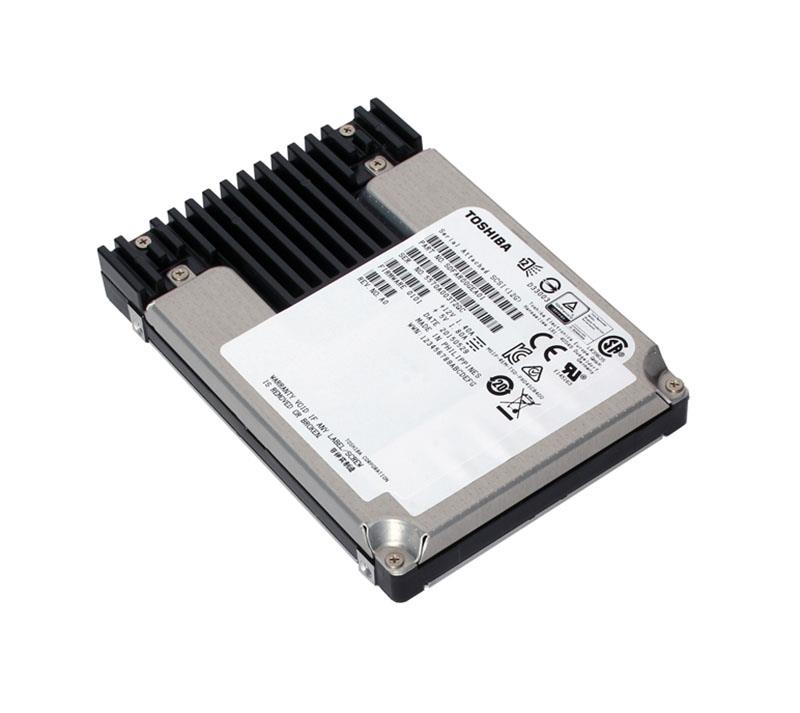

PX04SVB384 | Toshiba | SAS 12.0 Gbps | 3.84 TB | 2.5-inch | Multi-level Cell (MLC) | $1,540.65 | Add to List |
|
PX04SRB384 | Toshiba | SAS 12.0 Gbps | 3.84 TB | 2.5-inch | Multi-level Cell (MLC) | $1,064.86 | Add to List |
|
ST3840FM0003 | Seagate | SAS 12.0 Gbps | 3.84 TB | 2.5-inch | Enterprise MLC (eMLC) | $450.36 | Add to List |
|

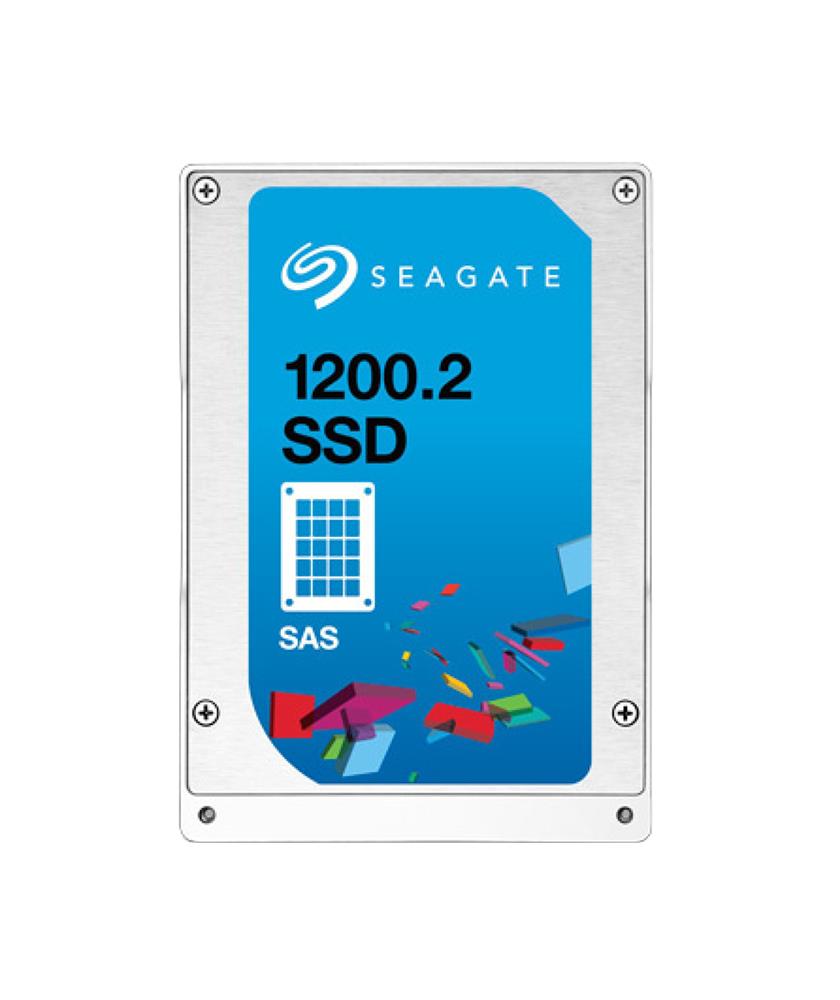

ST3840FM0043 | Seagate | SAS 12.0 Gbps | 3.84 TB | 2.5-inch | Enterprise MLC (eMLC) | $991.88 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST10000NM0206 | Seagate | SAS 12.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $328.96 | Add to List |
|

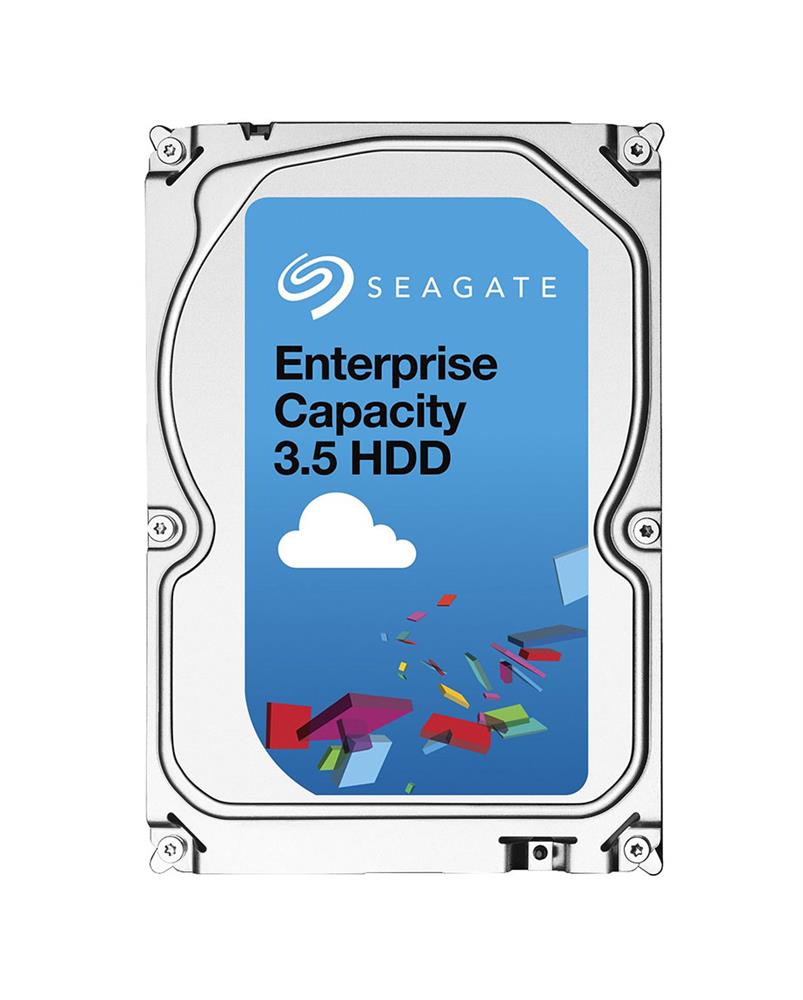

ST10000NM0096 | Seagate | SAS 12.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $328.96 | Add to List |
|
ST10000NM0086 | Seagate | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
0F27606 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
|
0F27604 | Hitachi | SATA 6.0 Gbps | 10 TB | 3.5-inch | 256 MB | 7200 RPM | $389.49 | Add to List |
