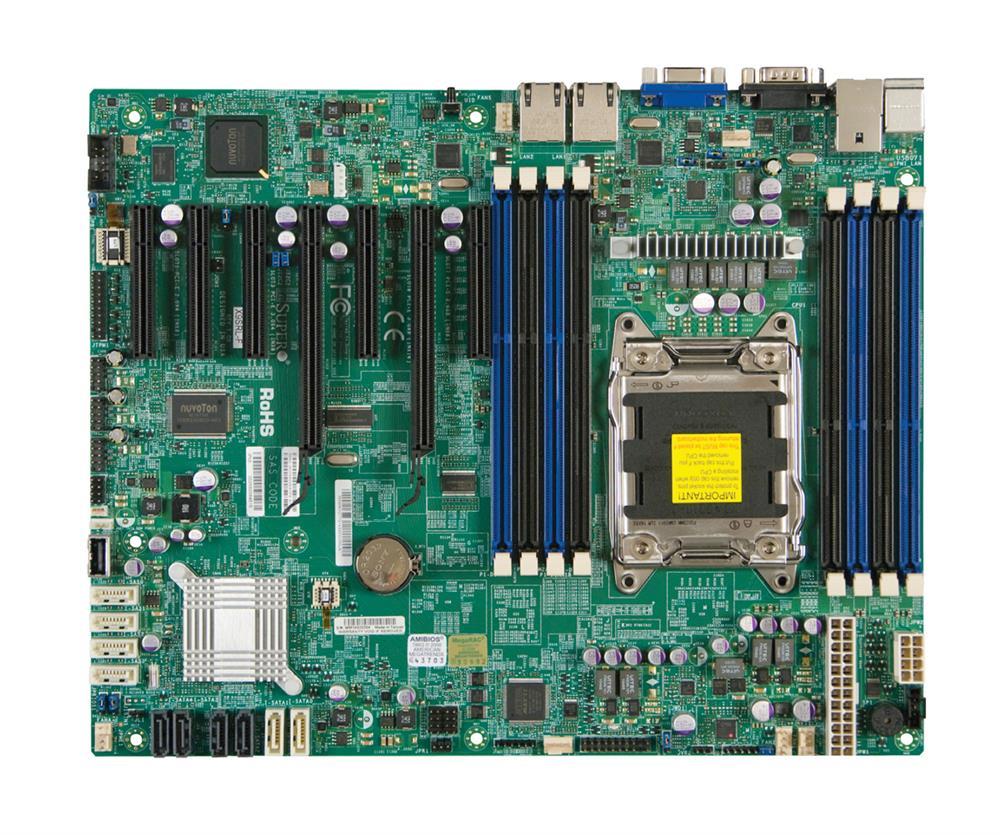

X9SRL SuperMicro Socket LGA 2011 Intel C602 Chipset Intel Xeon E5-2600/1600 & E5-2600/1600 v2 Processors Support DDR3 8x DIMM 2x SATA3 6.0Gb/s ATX Server Motherboard (Refurbished)

Mfg Part No:

X9SRL

Global Part Number (GPN):

1475626822

$509.01 $1,131.13 You Save: $622.12 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of X9SRL? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for X9SRL

Model
Manufacturer	SuperMicro
Manufacturer Part #	X9SRL
Performance
Product Type	Server System Board
Form Factor	ATX
CPU Socket Type	LGA 2011
Supported CPU(s)	Intel Xeon Processor
Supported CPU Technologies	64-bit AES New Instructions Demand Based Switching Enhanced Intel Speedstep Technology Execute Disable Bit Idle States Intel 64 Architecture Intel Trusted Execution Technology Intel Virtualization Technology Thermal Monitoring Technologies
Chipset	Intel C602
Number of Memory Slot(s)	8
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-6400 (DDR3-800) PC3-8500 (DDR3-1066)
Maximum Installed Memory	512 GB
Expansion Slots	PCI Express x4 PCI Express x8
Expansion Slots Details	2 (x8) PCI-E 3.0 (in x16) slots 2 (x8) PCI-E 3.0 slots 2 (x4) PCI-E 3.0 (in x8) slots 1 (x4) PCI-E 2.0 (in x8) slot
Storage Controller	Serial-ATA 3.0 Gbps Serial-ATA 6.0 Gbps
Storage Controller Details	2 SATA 3.0 ports (6Gb/s) 4 SATA 2.0 ports (3Gb/s) 4 SATA ports (3Gb/s) via SCU
On-Board Video Controller	Matrox G200eW
Network	Gigabit Ethernet
Connectors/Ports	RJ-45 (Ethernet) USB 2.0
Connectors/Ports Details	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port 9 USB 2.0 ports total (2 rear + 6 via header + 1 Type A) 1 VGA port 2 PS/2 Keyboard/Mouse ports 1 serial port (rear) and 1 serial header (side) 1 DOM (Disk on Module) power connector 1 TPM Header

Request for Quote: X9SRL

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no X9SRL. Or Request a Quote below:

Quantity

How soon you need it?

General Information

X9SRL SuperMicro Socket LGA 2011 Intel C602 Chipset Intel Xeon E5-2600/1600 & E5-2600/1600 v2 Processors Support DDR3 8x DIMM 2x SATA3 6.0Gb/s ATX Server Motherboard (Refurbished)
