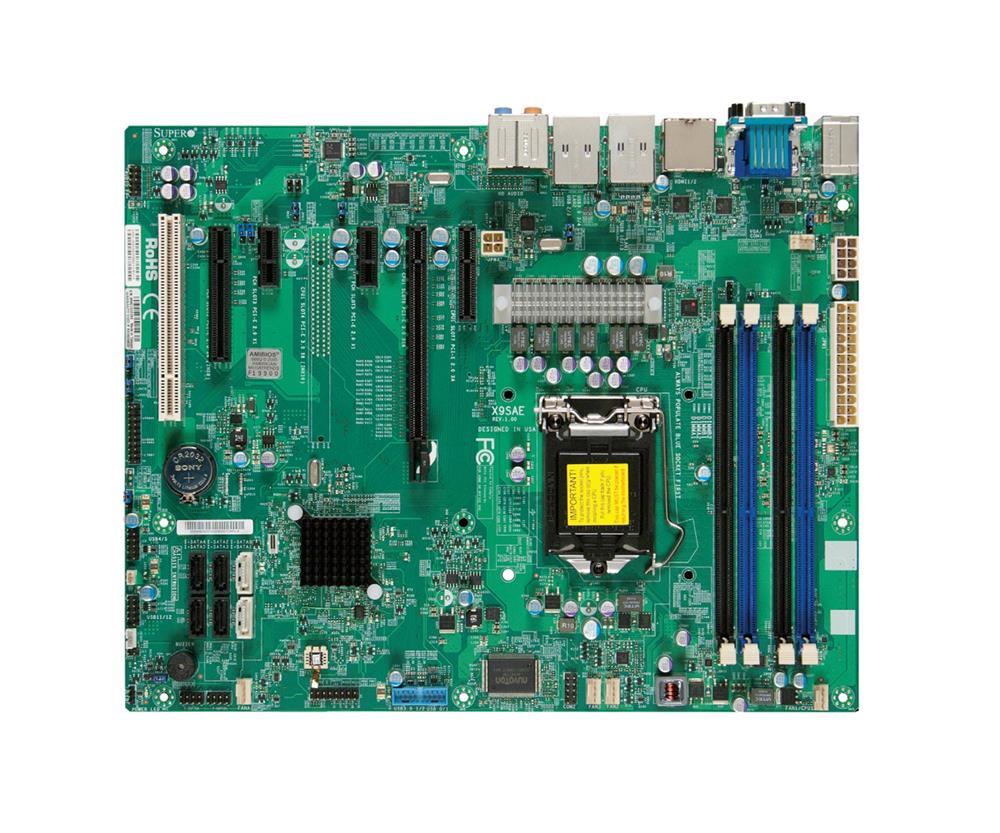

X9SAE SuperMicro Socket LGA 1155 Intel C216 Express Chipset Intel Xeon E3-1200 v2/ Intel Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Server Motherboard (Refurbished)

Mfg Part No:

X9SAE

Global Part Number (GPN):

1488631770

$418.93 $930.96 You Save: $512.03 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of X9SAE? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for X9SAE

Model
Manufacturer	SuperMicro
Manufacturer Part #	X9SAE
Performance
Product Type	Server System Board
Form Factor	ATX
Supported CPU(s)	Intel Celeron Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor Intel Xeon Processor
Supported CPU Technologies	64-bit AES New Instructions Demand Based Switching Enhanced Intel Speedstep Technology Execute Disable Bit Hyper-Threading Technology Idle States Intel 64 Architecture Intel Trusted Execution Technology Intel Turbo Boost Technology Intel Virtualization Technology Thermal Monitoring Technologies
Chipset	Intel C216
Number of Memory Slot(s)	4
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600)
Maximum Installed Memory	32GB
Expansion Slots	PCI Express x1 PCI Express x4 PCI Express x8
Expansion Slots Details	1x PCI-E 3.0 x16 slot 2x PCI-E 2.0 x4 (1 in x8) 2x PCI-E 2.0 x1 & 1x PCI-32bit 5V slots
Storage Controller	Serial-ATA 3.0 Gbps Serial-ATA 6.0 Gbps
Storage Controller Details	2 SATA 3.0 ports (6Gbps) 4 SATA 2.0 ports (3Gbps)
Network	Gigabit Ethernet
Connectors/Ports	RJ-45 (Ethernet) USB 2.0 USB 3.0
Connectors/Ports Details	2 RJ45 Gigabit Ethernet LAN ports 4 USB 3.0 ports total (2 rear, 2 via header) 8 USB 2.0 ports total (4 rear, 4 via header) 7.1 HD Audio ports with optical S/PDIF 1 VGA and 2 HDMI ports (Dual Display) 2x serial ports (1 rear, 1 header) 1x DOM (Disk on Module) power connector

Request for Quote: X9SAE

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no X9SAE. Or Request a Quote below:

Quantity

How soon you need it?

General Information

X9SAE SuperMicro Socket LGA 1155 Intel C216 Express Chipset Intel Xeon E3-1200 v2/ Intel Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Server Motherboard (Refurbished)
