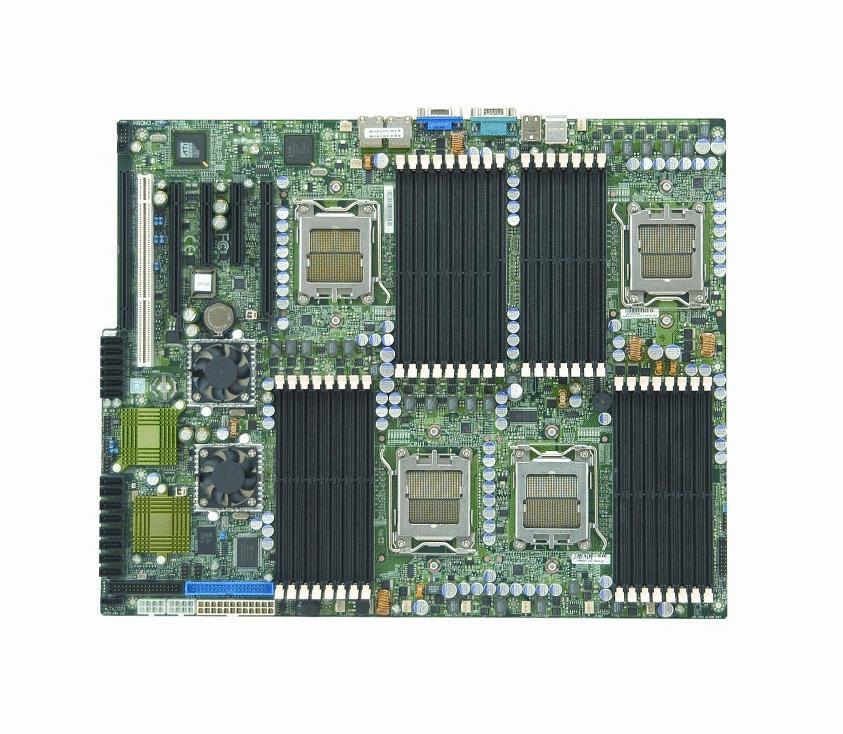

MBD-H8QM3-2-B SuperMicro Quad Socket 1207 Nvidia MCP55 Pro Chipset AMD Opteron 8000 Series Processors Support DDR2 32x DIMM 6x SATA2 3.0Gb/s Proprietary Server Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
MBD-H8QM3-2-B
Global Part Number (GPN):
1438235587
Looking for a large quantity of MBD-H8QM3-2-B? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for MBD-H8QM3-2-B
| General Information | |
| Manufacturer Part Number | MBD-H8QM3-2-B |
| Brand Name | Supermicro |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Total Processor Supported | 4 |
| Processor Socket | Socket F (1207) |
| Processor Supported |
Opteron Dual-Core Opteron Quad-Core |
| Memory | |
| Number of Memory Slots | 32 |
| Maximum Memory | 128 GB |
| Memory Speed Supported |
667 MHz 533 MHz 400 MHz |
| Memory Technology | DDR2 SDRAM |
| I/O Controller | |
| Controller Type |
Floppy Controller Serial Attached SCSI (SAS) Serial ATA/300 Ultra ATA/133 (ATA-7) |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 0+1 JBOD |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ATI |
| Graphics Controller Model | ES1000 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 5 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of SAS Interfaces | 8 |
| Total Number of Onboard USB Ports | 1 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 16.4" |
| Depth | 13" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Request for Quote: MBD-H8QM3-2-B
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no MBD-H8QM3-2-B. Or Request a Quote below:
