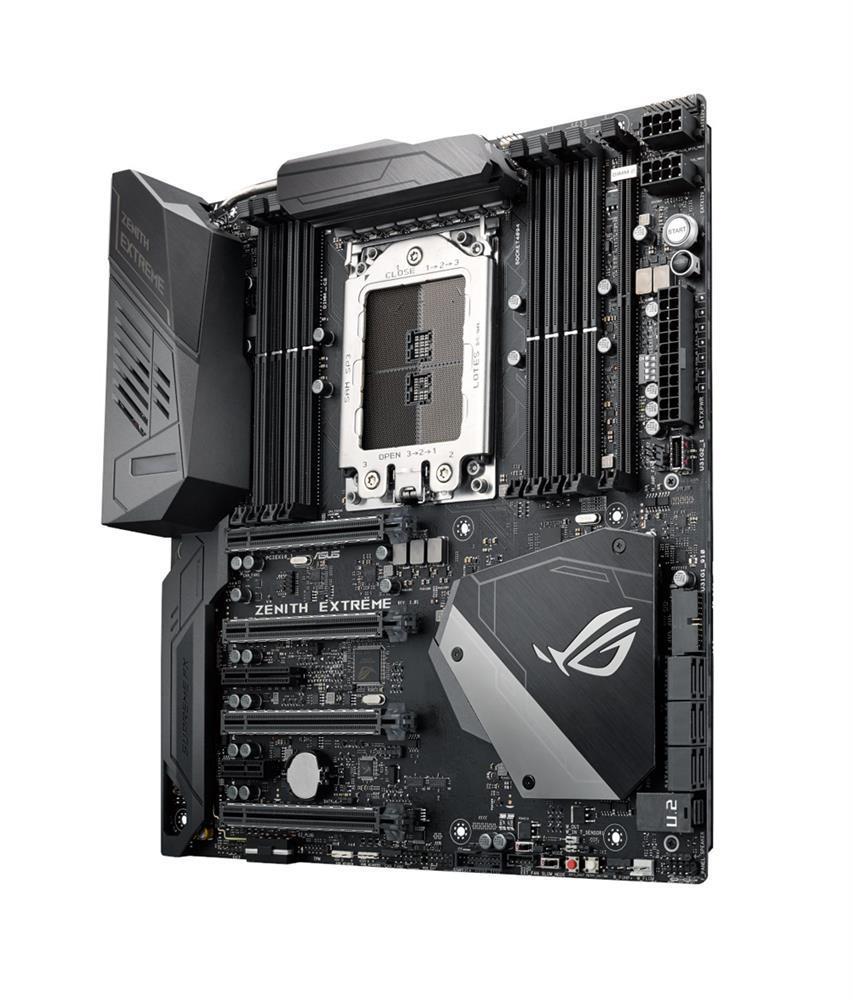

90MB0UV0-M0EAY0 ASUS ROG ZENITH EXTREME Socket TR4 AMD X399 Chipset AMD Ryzen Threadripper Processors Support DDR4 8x DIMM 6x SATA 6.0Gb/s Extended ATX Motherboard (Refurbished)

Mfg Part No:

90MB0UV0-M0EAY0

$1,351.98 $1,931.40 You Save: $579.42 (30% Autumn Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of 90MB0UV0-M0EAY0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90MB0UV0-M0EAY0

Model
Manufacturer	MSI
Manufacturer Part #	90MB0UV0-M0EAY0
Performance
Product Type	System Board
Form Factor	E-ATX
CPU Socket Type	Socket TR4
Supported CPU(s)	AMD Ryzen Processor
Chipset	AMD X399
Number of Memory Slot(s)	8
Number of Memory Channel(s)	4
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400) PC4-21333 (DDR4-2666) PC4-25600 (DDR4-3200)
Maximum Installed Memory	128 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x4 PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 2.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (black)USB Type-CTM 1 x USB 3.1 Gen 2 (red)Type-A 8 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback® Button(s) 5 x LED-illuminated audio jacks Internal I/O Ports 1 x Aura Addressable Strip Header(s) 1 x ReTry jumper 1 x Safe Boot jumper 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 2 x 8-pin EATX 8V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 2 x Thermal sensor connector(s) 1 x LN2 Mode header(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x U.2 connector*4 1 x Slow Mode jumper(s) 1 x System panel connector 2 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x USB 3.1 Gen 2 front panel connector 1 x PCIe x16 lane switch 1 x 9 pin Monoblock sensor

Request for Quote: 90MB0UV0-M0EAY0

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90MB0UV0-M0EAY0. Or Request a Quote below:

Quantity

How soon you need it?

General Information

90MB0UV0-M0EAY0 ASUS ROG ZENITH EXTREME Socket TR4 AMD X399 Chipset AMD Ryzen Threadripper Processors Support DDR4 8x DIMM 6x SATA 6.0Gb/s Extended ATX Motherboard (Refurbished)
