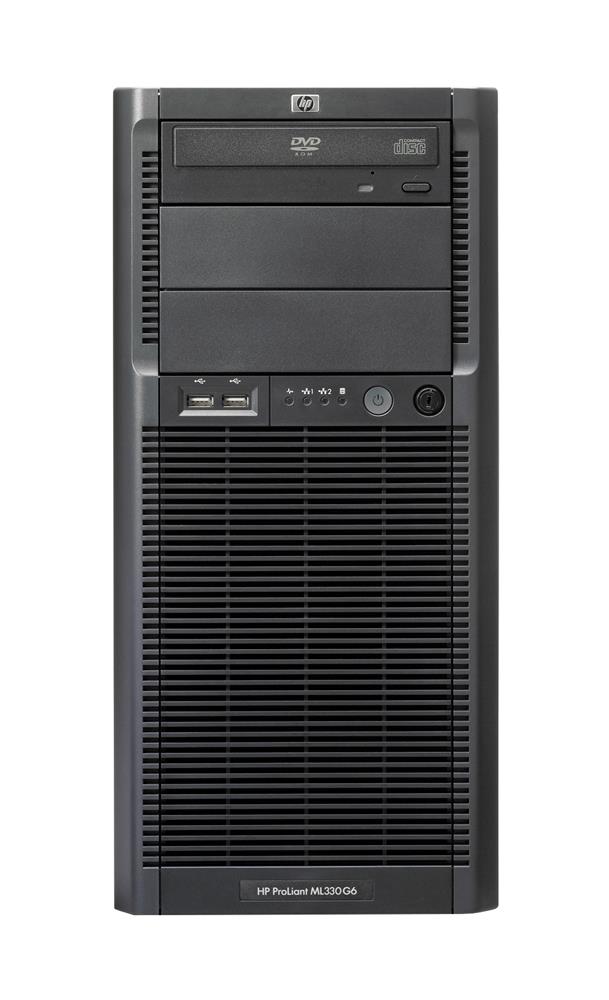

HP ProLiant ML330 G6 CTO (504271-B21)
- Standard Memory: 4GB, 6GB or 12GB (Removable)
- Maximum Memory: 384GB Using Qty-12 32GB Quad-Rank RDIMM, 288GB Using Qty-18 8GB Dual-Rank RDIMM, 48GB Using Qty-12 4GB ECC UDIMM
- Memory Expansion: 18 Sockets (6 banks of 3) maximum using RDIMMs, 12 Sockets (4 banks of 3) maximum using UDIMMs or QR RDIMMs
- CPU: Intel Xeon
- Chipset: Intel 5500
- Bus Architecture: PCI; PCI Express; PCI-X; SSD SATA 2.5-inch; USB
- Form Factor: Tower Server
- Memory Comments: DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on which Intel Xeon model and the number of modules installed. Due to chipset limitations, DDR3 Quad Rank memory will operate at 1066MHz in the first Triple Channel bank. Adding Quad Rank modules in the second Triple Channel bank will operate at 800MHz. The third memory bank must be unpopulated.Due to chipset limitations, Unbuffered ECC DIMMs are limited to TWO Triple Channel Banks per processor on Intel Xeon 55xx series systems. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Low Voltage DIMMs (KTH-PL313LV) can run at 1.35V with Intel Xeon 5600 series processors, but will also run at 1.5V using Xeon 5500 series processors. 4GB DDR3-1333 Reg ECC modules come in two versions: 313/4G using x4 and 3138/4G using x8 DRAM. The two parts may be installed in the same system but not within the same memory bank. Use like modules for dual and triple channel operation. For optimum dual or triple channel configurations, use like modules within the same memory bank. Do not mix single, dual or quad rank modules, varying capacities or speeds. Up to 384GB can be reached using twelve (12) 32GB RDIMM modules in groups of three, or any configuration up to 288GB using eighteen (18) 2GB, 4GB, 8GB & 16GB RDIMM modules in groups of three. any configuration up to 48GB can be reached using 2GB, and 4GB modules in groups of three.
Memory Upgrade for HP ProLiant ML330 G6 CTO (504271-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-14D301R3089-48G | 3D Memory | PC-10600 1333Mhz | 48 GB | Registered ECC Rank 4 | 1.35 | $217.94 | Add to List |
|
|
3D-14D301R3081-48G | 3D Memory | PC-10600 1333Mhz | 48 GB | Registered ECC Rank 4 | 1.35 | $217.94 | Add to List |
|
3D-14D301R3056-32G | 3D Memory | PC-8500 1066Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $288.85 | Add to List |
|
|
3D-14D301R3054-32G | 3D Memory | PC-8500 1066Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $288.85 | Add to List |
|
3D-14D389R26075-16G | 3D Memory | PC-12800 1600Mhz | 16 GB | Registered ECC Rank 2 | 1.35 | $72.65 | Add to List |
