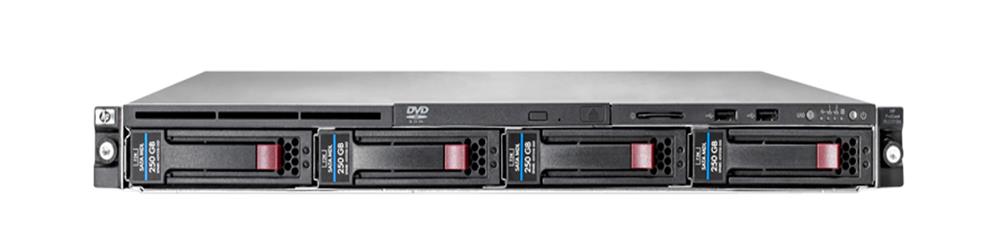

HP ProLiant DL320 G6 LFF CTO
- Standard Memory: 4GB (Removable)
- Maximum Memory: 72GB Registered ECC DIMM, 24GB ECC Unbuffered DIMM
- Memory Expansion: 9 Sockets (3 banks of 3)
- CPU: Intel Xeon
- Chipset: Intel 5500
- Bus Architecture: PCI; PCI Express; PCI-X; SSD SATA 2.5-inch; USB
- Mfr System P/N: 505683-001; 505682-001; 505684-001; 505684-421; 505684-371; 505683-421; 505683-371
- Form Factor: 1U Rack Server
- Memory Comments: DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on which Intel Xeon model is used and the number of modules installed. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Due to chipset limitations, Unbuffered ECC DIMMs are limited to two Triple Channel banks per processor on Intel Xeon 55xx series systems. Due to chipset limitations, DDR3 Quad Rank memory will operate at 1066MHz in the first Triple Channel bank. Adding Quad Rank modules in the second Triple Channel bank will operate at 800MHz. The third memory bank must be unpopulated (2 DIMMs per channel, 6 sockets max). With Registered ECC DIMMs: any configuration up to 72GB can be reached using 2, 4 and 8GB modules. With ECC Unbuffered DIMMs: any configuration up to 24GB can be reached using 1, 2 and 4GB modules.
Memory Upgrade for HP ProLiant DL320 G6 LFF CTO
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D351R2526-24G | 3D Memory | PC-10600 1333Mhz | 24 GB | Registered ECC Rank 2 | 1.5 | $109.78 | Add to List |
|
3D-13D378R13527-16G | 3D Memory | PC-10600 1333Mhz | 16 GB | Registered ECC Rank 1 | 1.5 | $153.07 | Add to List |
|
|
3D-13D378R13512-12G | 3D Memory | PC-10600 1333Mhz | 12 GB | Registered ECC Rank 1 | 1.5 | $114.81 | Add to List |
|
3D-13D378R3492-8G | 3D Memory | PC-8500 1066Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $36.59 | Add to List |
|
3D-13D378R13501-4G | 3D Memory | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 1 | 1.35 | $37.94 | Add to List |
