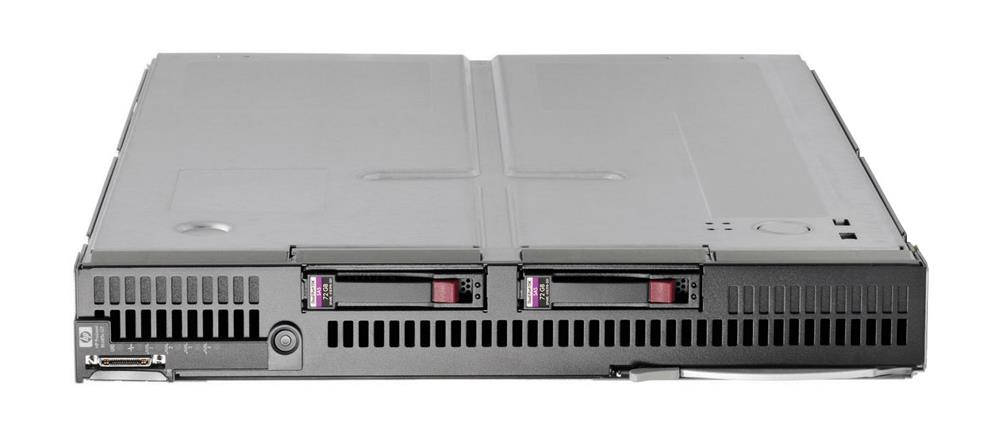

HP ProLiant BL685c G7 Opteron 8-Core 2.4GHz (518873-B21)
- Standard Memory: 32GB or 64GB (Removable)
- Maximum Memory: 512GB with four processors
- Memory Expansion: 8 Sockets (2 Banks of 4) per processor, 32 Sockets with four processors
- CPU: AMD Opteron Eight-Core 2.4GHz
- Chipset: AMD SR5690
- Bus Architecture: PCI Express; SSD SATA 2.5-inch
- Mfr System P/N: 518873-B21
- Form Factor: Blade Server
- Memory Comments: Maximum 512GB configuration is achieved using sixteen 16GB Quad Rank RDIMMs and thirty-two 8GB Dual Rank RDIMMs with four processors installed. Quad Rank modules MUST be installed in second bank (sockets 2, 5, 8, and 11) for each processor. Advanced ECC function is not available if x4 and x8 memory modules are mixed in memory channels (A and B), (C and D), or both, but standard ECC is still available. Advanced ECC is available if x4 and x8 memory modules are mixed in memory channels (A and C), (B and D), or both. Installing two memory modules at a time per processor privides for addition performance, installing four at a time per processor provides for better performance, and installing equal amounts of memory for all processors provides for best performance. Using Registered ECC DIMMs: any configuration up to 512GB can be reached using 2, 4, 8, and 16GB modules in groups of four.
Memory Upgrade for HP ProLiant BL685c G7 Opteron 8-Core 2.4GHz (518873-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
593915-B21 | HP | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $81.67 | Add to List |
|
604502-B21 | HP | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.35 | $46.02 | Add to List |
|
593913-B21 | HP | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.5 | $51.01 | Add to List |
|
604500-B21 | HP | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 1 | 1.35 | $42.82 | Add to List |
|

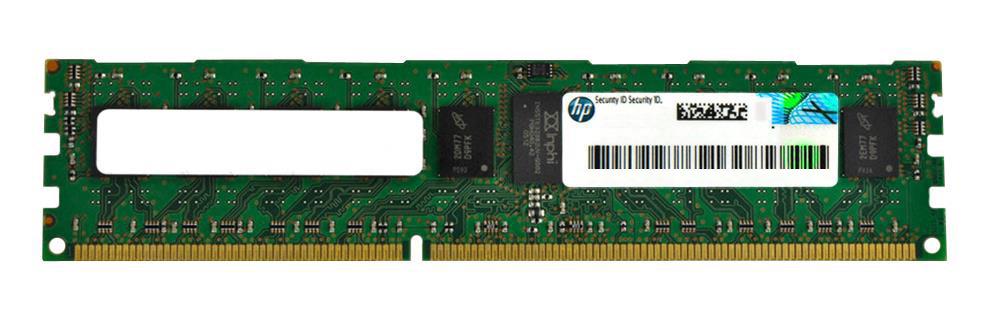

593911-B21 | HP | PC-10600 1333Mhz | 4 GB | Registered ECC Rank 1 | 1.5 | $45.95 | Add to List |
Memory Upgrade for HP ProLiant BL685c G7 Opteron 8-Core 2.4GHz (518873-B21)
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-13D362R24697-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 2 | 1.5 | $137.68 | Add to List |
|
3D-13D362R4662-16G | 3D Memory | PC-8500 1066Mhz | 16 GB | Registered ECC Rank 4 | 1.5 | $78.52 | Add to List |
|
3D-13D379R24320-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.35 | $53.72 | Add to List |
|
3D-13D379R4318-8G | 3D Memory | PC-8500 1066Mhz | 8 GB | Registered ECC Rank 4 | 1.5 | $34.42 | Add to List |
|
|
3D-13D362R24682-8G | 3D Memory | PC-10600 1333Mhz | 8 GB | Registered ECC Rank 2 | 1.5 | $34.42 | Add to List |
Accessories Upgrade for HP ProLiant BL685c G7 Opteron 8-Core 2.4GHz (518873-B21)
CPUs / Processors
Unboxed / OEM
| Part # | Socket | Model Type | Cores | Clock Speed | Cache | Price | ||
|---|---|---|---|---|---|---|---|---|
|

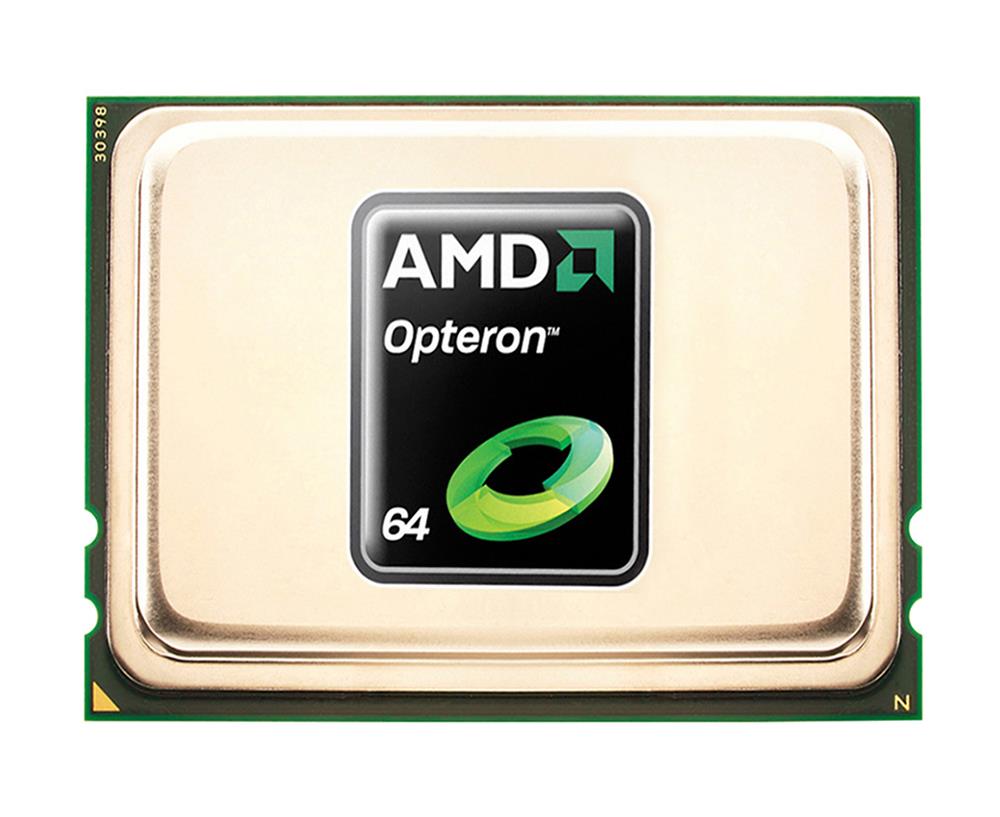

632996-B21 | Socket G34 | 6140 | 8 | 2.60 GHz | $615.84 | Add to List | |
|
518874-B21 | Socket G34 | 6136 | 8 | 2.40 GHz | $603.34 | Add to List | |
|
632994-B21 | Socket G34 | 6176 | 12 | 2.30 GHz | $521.08 | Add to List | |
|
518871-B21 | Socket G34 | 6174 | 12 | 2.20 GHz | $448.20 | Add to List | |
|

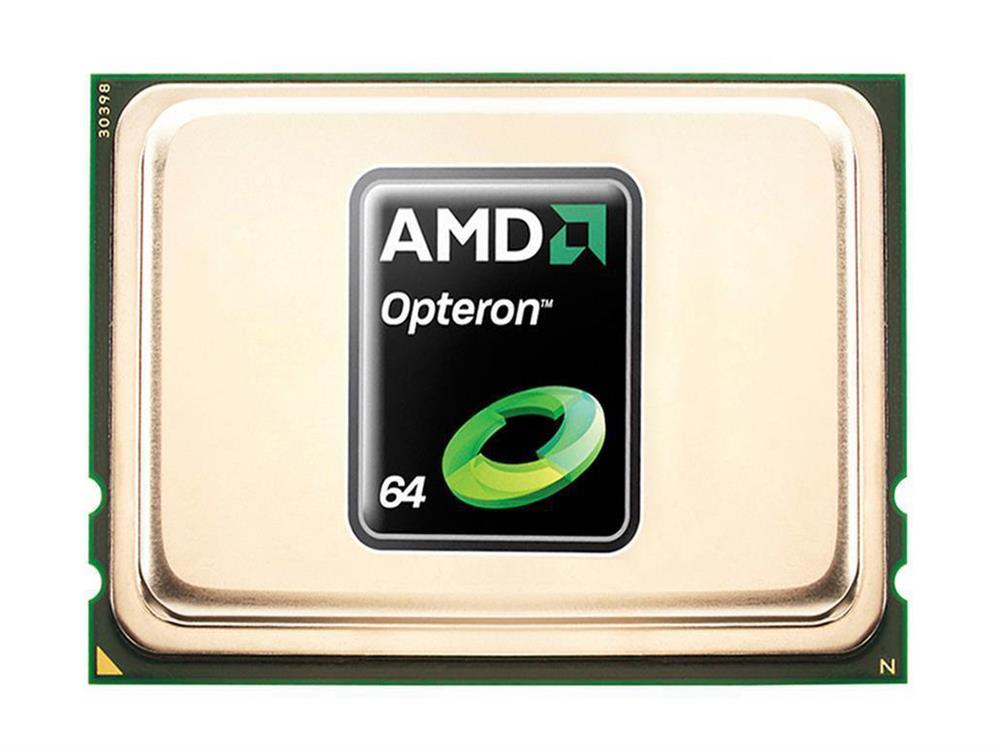

593675-B21 | Socket G34 | 6172 | 12 | 2.10 GHz | $2,689.84 | Add to List |
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
802584-B21 | HP | SAS 12.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $181.19 | Add to List |
|
632506-B21 | HP | SAS 6.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $219.12 | Add to List |
|
636597-B21 | HP | SATA 3.0 Gbps | 400 GB | 2.5-inch | Enterprise MLC (eMLC) | $134.94 | Add to List |
|
632504-B21 | HP | SAS 6.0 Gbps | 400 GB | 2.5-inch | Enterprise MLC (eMLC) | $138.79 | Add to List |
|
636595-B21 | HP | SATA 3.0 Gbps | 200 GB | 2.5-inch | Enterprise MLC (eMLC) | $121.77 | Add to List |
Storage
Controllers
-
Add to List
507925-B21 HP Smart Array P700M 256MB Cache SAS 3Gbps / SATA 1.5Gbps 8-Channel PCI Express x8 Mezzanine Low Profile 0/1/5/6/10 RAID Controller Card$34.27 -
Add to List
508226-B21 HP Smart Array P700M 512MB Cache SAS 3Gbps / SATA 1.5Gbps 8-Channel PCI Express x8 Mezzanine Low Profile 0/1/5/6/10 RAID Controller Card$34.27
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
785415-001 | HP | SAS 12.0 Gbps | 1.2 TB | 2.5-inch | 10000 RPM | $194.30 | Add to List | |
|
693719-001 | HP | SAS 6.0 Gbps | 1.2 TB | 2.5-inch | 64 MB | 10000 RPM | $145.53 | Add to List |
|
626162-001 | HP | SATA 3.0 Gbps | 1 TB | 2.5-inch | 7200 RPM | $120.81 | Add to List | |
|
606020-001 | HP | SAS 6.0 Gbps | 1 TB | 2.5-inch | 7200 RPM | $190.65 | Add to List | |
|
785414-001 | HP | SAS 12.0 Gbps | 900 GB | 2.5-inch | 10000 RPM | $173.14 | Add to List |
