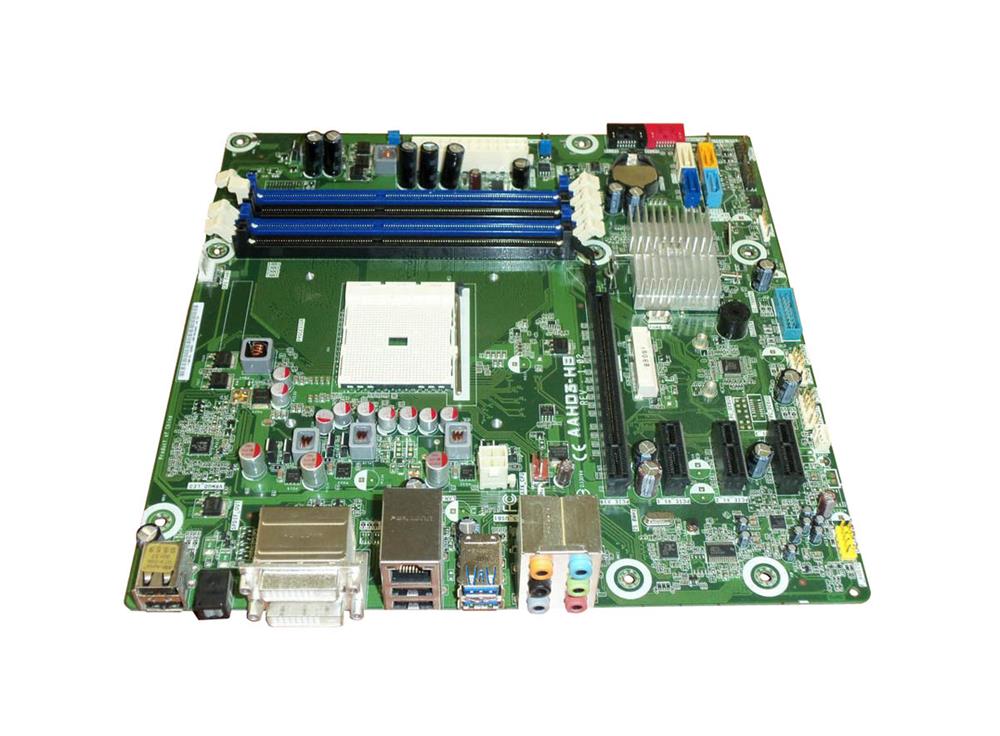

655590-001 HP Socket FM1 AMD Hudson-D3 FCH Chipset AMD A8/A6/A4/E2 Series Processors Support DDR3 4x DIMM 6x SATA 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

655590-001

Global Part Number (GPN):

1465581299

$177.11 $393.57 You Save: $216.46 (55% Special Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 655590-001? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 655590-001

Model
Manufacturer	HP
Manufacturer Part #	655590-001
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	Socket FM1
Supported CPU(s)	AMD A10-Series AMD A4-Series AMD A6-Series AMD A8-Series
Chipset	AMD A75
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600)
Expansion Slots	Mini PCI PCI-E x1 PCI-E x16
Storage Controller	SATA 3.0 Gbps
Connectors/Ports	Audio-In Audio-Out DVI-D Microphone USB 2.0 USB 3.0
Connectors/Ports Details	Back I/O Ports USB 2.0: 2 S/PDIF DVI-D: 2 LAN + USB 2.0: 2 USB 3.0: 2 Audio: Center/Subwoofer port (yellow orange) Audio: Rear Speaker Out port (black) Audio: Side Speaker Out port (gray) Audio: Line In port (light blue) Audio: Line Out port (lime) Audio: Microphone port (pink) Internal I/O Connectors 1 x ATX power connector 1 x ATX CPU power connector 1 x System fan connector 6 x SATA 3.0 connectors 1 x ROM recovery connector 1 x Internal SPDIF output connector 1 x Front panel audio connector 1 x Chassis speaker connector 1 x FDO connector 1 x Front panel connector 4 x USB 2.0 connectors 2 x USB 3.0 connector
