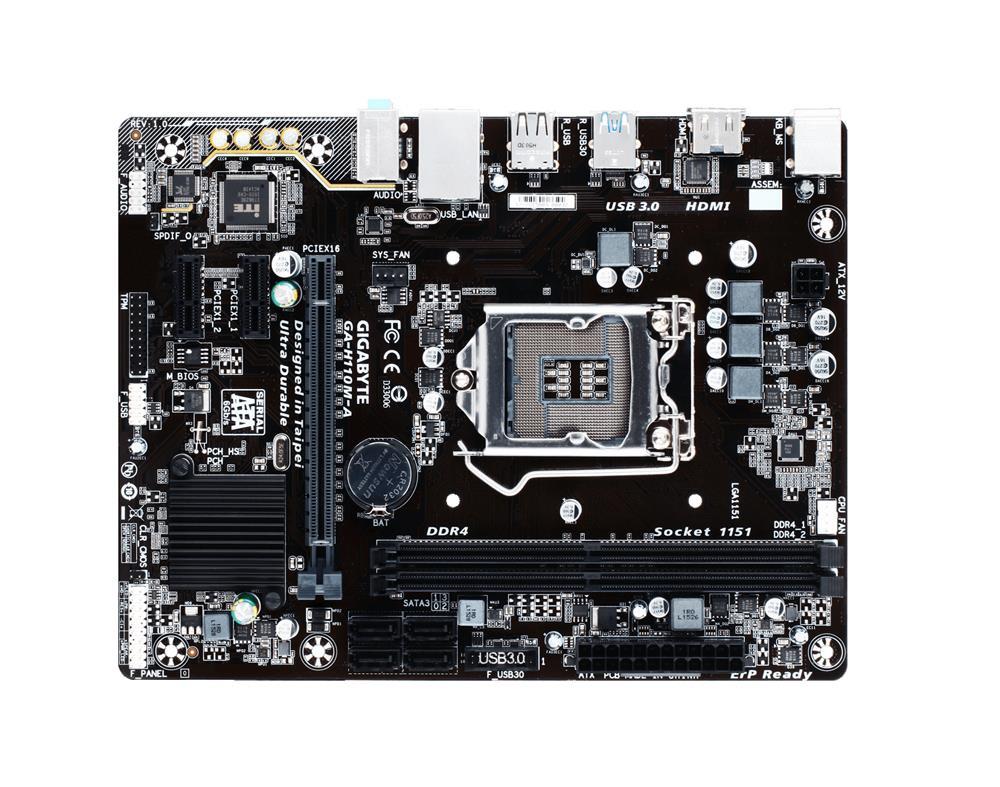

GA-H110M-A(rev.1.0) Gigabyte Socket LGA 1151 Intel H110 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-H110M-A (rev. 1.0)
GA-H110M-A(rev.1.0) Gigabyte Socket LGA 1151 Intel H110 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-H110M-A (rev. 1.0)

GA-H110M-A(rev.1.0) Gigabyte Socket LGA 1151 Intel H110 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-H110M-A (rev. 1.0)

Mfg Part No:

GA-H110M-A(rev.1.0)

Icon Global Part Number (GPN):

1490436243

$482.26 $1,071.69 You Save: $589.43 (55% Special Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of GA-H110M-A(rev.1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-H110M-A(rev.1.0)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-H110M-A(rev.1.0)
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Chipset Intel H110
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E x1
 PCI-E x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 Chassis Fan Connector
 CPU Fan Connector
 HDMI
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 TPM Header
 USB 1.1
 USB 2.0
 USB 3.1
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.0/2.0 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header
  • 1 x Clear CMOS jumper

    • Back Panel Connectors
  • 1 x PS/2 mouse port
  • 1 x PS/2 Keyboard port
  • 1 x HDMI port
  • 2 x USB 3.0/2.0 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In, Line Out, Mic In)
    		•
    Request for Quote:  GA-H110M-A(rev.1.0)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-H110M-A(rev.1.0). Or Request a Quote below:



    General Information

  • GA-H110M-A(rev.1.0) Gigabyte Socket LGA 1151 Intel H110 Express Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-H110M-A (rev. 1.0)
