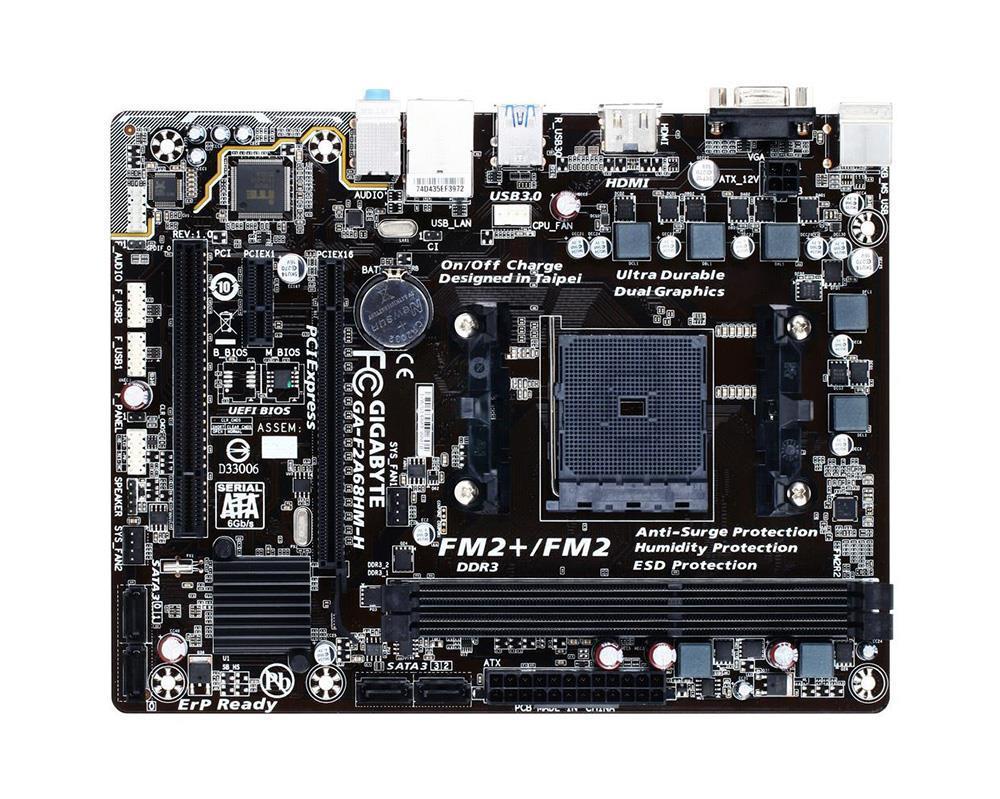

GA-F2A68HM-H(rev.1.1) Gigabyte Socket FM2+ AMD A68H Chipset AMD A-Series/ AMD Athlon Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-F2A68HM-H (rev. 1.1)
GA-F2A68HM-H(rev.1.1) Gigabyte Socket FM2+ AMD A68H Chipset AMD A-Series/ AMD Athlon Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-F2A68HM-H (rev. 1.1)

GA-F2A68HM-H(rev.1.1) Gigabyte Socket FM2+ AMD A68H Chipset AMD A-Series/ AMD Athlon Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-F2A68HM-H (rev. 1.1)

Mfg Part No:

GA-F2A68HM-H(rev.1.1)

Icon Global Part Number (GPN):

1490435766

$482.26 $1,071.69 You Save: $589.43 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of GA-F2A68HM-H(rev.1.1)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-F2A68HM-H(rev.1.1)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-F2A68HM-H(rev.1.1)
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type Socket FM2+
Supported CPU(s) AMD A-Series Processor
 AMD Athlon Processor
Chipset AMD A68H FCH
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-14900 (DDR3-1866)
 PC3-19200 (DDR3-2400)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E x1
 PCI-E x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 Audio-In
 Audio-Out
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 1.1
 USB 2.0
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x APU fan header
  • 2 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 2 x USB 2.0/1.1 headers
  • 1 x speaker header
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header

    • Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 2 x USB 3.0/2.0 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In, Line Out, Mic In)
    		•
    Request for Quote:  GA-F2A68HM-H(rev.1.1)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-F2A68HM-H(rev.1.1). Or Request a Quote below:



    General Information

  • GA-F2A68HM-H(rev.1.1) Gigabyte Socket FM2+ AMD A68H Chipset AMD A-Series/ AMD Athlon Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished) GA-F2A68HM-H (rev. 1.1)
