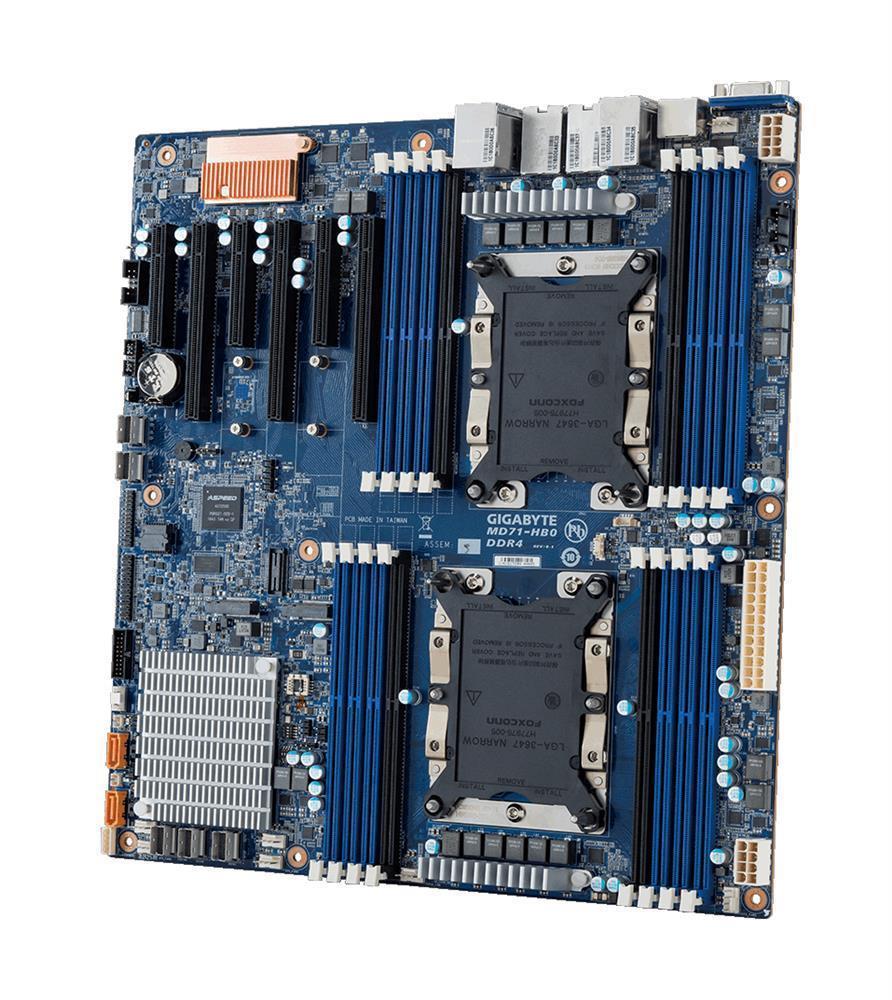

MD71-HB0(rev.1.0) Gigabyte Dual Socket LGA 3647 Intel C622 Express Chipset Xeon Scalable Family/ Xeon Platinum/ Gold/ Silver/ Bronze Processors Support DDR4 16x DIMM 12x SATA 6.0Gb/s Extended ATX Server Motherboard (Refurbished) MD71-HB0 (rev. 1.0)
MD71-HB0(rev.1.0) Gigabyte Dual Socket LGA 3647 Intel C622 Express Chipset Xeon Scalable Family/ Xeon Platinum/ Gold/ Silver/ Bronze Processors Support DDR4 16x DIMM 12x SATA 6.0Gb/s Extended ATX Server Motherboard (Refurbished) MD71-HB0 (rev. 1.0)

MD71-HB0(rev.1.0) Gigabyte Dual Socket LGA 3647 Intel C622 Express Chipset Xeon Scalable Family/ Xeon Platinum/ Gold/ Silver/ Bronze Processors Support DDR4 16x DIMM 12x SATA 6.0Gb/s Extended ATX Server Motherboard (Refurbished) MD71-HB0 (rev. 1.0)

Mfg Part No:

MD71-HB0(rev.1.0)

Icon Global Part Number (GPN):

1489282108

$951.08 $2,113.52 You Save: $1,162.44 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of MD71-HB0(rev.1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for MD71-HB0(rev.1.0)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # MD71-HB0(rev.1.0)
Performance
Product Type Server Motherboard
Form Factor E-ATX
CPU Socket Type LGA 3647
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies 64-bit
 AES New Instructions
 Enhanced Intel Speedstep Technology
 Execute Disable Bit
 Hyper-Threading Technology
 Idle States
 Intel 64 Architecture
 Intel Trusted Execution Technology
 Intel Turbo Boost Technology
 Intel Virtualization Technology
 Thermal Monitoring Technologies
Number of Memory Slot(s) 16
Number of Memory Channel(s) 6
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-21333 (DDR4-2666)
Maximum Installed Memory
  • RDIMM modules up to 64GB supported
  • LRDIMM modules up to 64GB supported
    		•
    Expansion Slots PCI Express x16
     PCI-E x16
     PCI-E x8
    Expansion Slots Details
  • 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
  • 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_1
  • 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
  • 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_0
  • 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0
  • 1 x PCIe x8 (Gen3 x4 bus) slot from C622

    • 2 x M.2 slots
  • M-key
  • PCIe Gen3 x4 per slot
  • Supports NGFF-22110/2280 cards
  • From CPU_0

    • 2 x U.2 ports
  • SlimSAS type
  • PCIe Gen3 x4 per port
  • From CPU_1
    		•
    Storage Controller SATA 6.0 Gbps
    Storage Controller Details
  • 3 x SlimSAS for 12 x SATA III 6Gb/s ports
  • 2 x 7-pin SATA III 6Gb/s with SATA DOM supported
    		•
    Network Gigabit Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     8-pin 12V Power Connector
     COM
     CPU Fan Connector
     RJ-45
     TPM Header
     USB 3.0
    Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 2 x SATA DOM power pin headers
  • 5 x SlimSAS connectors
  • 2 x 7-pin SATA connectors
  • 2 x M.2 slots
  • 2 x CPU fan headers
  • 5 x System fan headers
  • 1 x USB 3.0 header
  • 1 x COM_2 header
  • 1 x TPM header
  • 1 x VROC connector
  • 1 x Front panel header
  • 1 x HDD back plane board header
  • 1 x PMBus connector
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper
  • 1 x Case open header
  • 1 x Buzzer

    • Rear I/O Connectors
  • 2 x USB 3.0
  • 1 x VGA
  • 1 x COM (RJ45 type)
  • 4 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED
    		•
    Request for Quote:  MD71-HB0(rev.1.0)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no MD71-HB0(rev.1.0). Or Request a Quote below:



    General Information

  • MD71-HB0(rev.1.0) Gigabyte Dual Socket LGA 3647 Intel C622 Express Chipset Xeon Scalable Family/ Xeon Platinum/ Gold/ Silver/ Bronze Processors Support DDR4 16x DIMM 12x SATA 6.0Gb/s Extended ATX Server Motherboard (Refurbished) MD71-HB0 (rev. 1.0)
