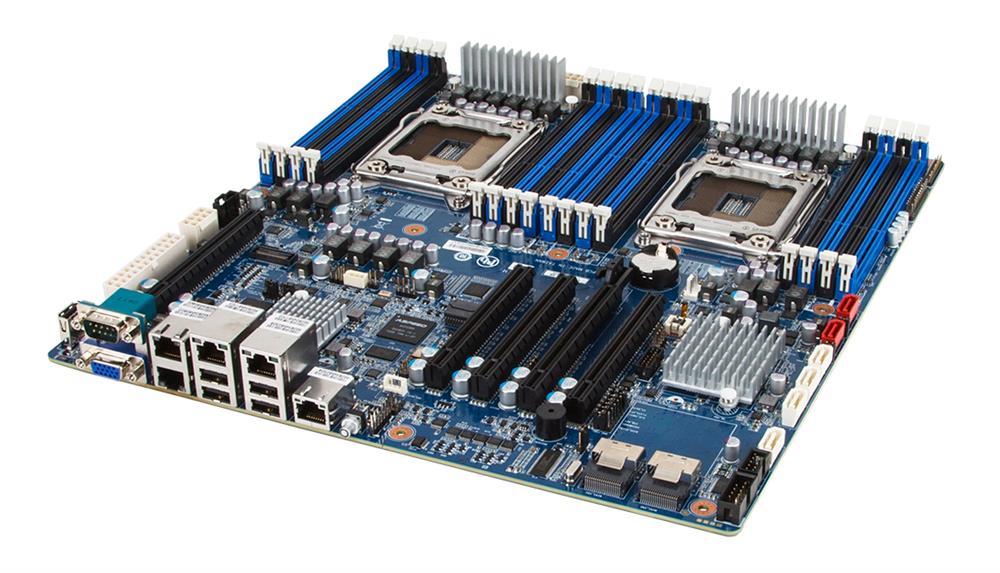

GA-7PESH4(rev.1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 16x DIMM 4x SATA 3.0Gb/s Extended ATX/ SSI EEB Motherboard (Refurbished) GA-7PESH4 (rev. 1.0)

Mfg Part No:

GA-7PESH4(rev.1.0)

Global Part Number (GPN):

1489282423

$951.08 $2,113.52 You Save: $1,162.44 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of GA-7PESH4(rev.1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-7PESH4(rev.1.0)

Model
Manufacturer	Gigabyte Tech
Manufacturer Part #	GA-7PESH4(rev.1.0)
Performance
Product Type	Server Motherboard
Form Factor	E-ATX
CPU Socket Type	LGA 2011
Supported CPU(s)	Intel Xeon Processor
Supported CPU Technologies	64-bit Hyper-Threading Technology Intel Turbo Boost Technology Intel Virtualization Technology
Chipset	Intel C602
Number of Memory Slot(s)	16
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-8500 (DDR3-1066)
Maximum Installed Memory	Single, dual and quad rank RDIMM modules up to 32GB supported Single and dual rank UDIMM modules up to 8GB supported
Expansion Slots	PCI-E x16
Expansion Slots Details	3 x PCIe x16 (Gen3 x16 bus) slots 2 x PCIe x16 (Gen3 x8 bus) slots 4 x PCIe x16 (Gen3 x16 bus) slots
Storage Controller	SATA 3.0 Gbps SATA 6.0 Gbps
Storage Controller Details	1 x Mini-SAS (for 4 x SATA 3Gb/s ports) 1 x Mini-SAS (disabled, can be enabled via Intel upgrade key) 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports
On-Board Video Controller	ASPEED AST2300
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector CPU Fan Connector RJ-45 Serial USB 2.0
Connectors/Ports Details	Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PMBus connector 4 x System fan headers 2 x CPU fan headers 1 x USB 2.0 vertical Type A port 1 x HDD back plane board header 1 x Front panel header 1 x SATA1 port DOM support jumper 1 x SATA2 port DOM support jumper 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports 1 x USB 2.0 header 1 x Serial header 2 x Mini-SAS cable connectors 1 x S3_MASK jumper 1 x Flash descriptor security jumper 1 x Clear CMOS jumper 1 x ME recovery jumper 1 x Skip supervisor password jumper 1 x BIOS recovery jumper 1 x Force to Stop FRB3 Timer jumper 1 x BIOS write protect jumper 1 x TPM header 1 x SATA SGPIO header 1 x IPMB connector 1 x Chassis intrusion header Rear I/O Connectors 4 x USB 2.0 1 x VGA 1 x Serial 5 x RJ45 1 x ID button with LED

Request for Quote: GA-7PESH4(rev.1.0)

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-7PESH4(rev.1.0). Or Request a Quote below:

Quantity

How soon you need it?

General Information

GA-7PESH4(rev.1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 16x DIMM 4x SATA 3.0Gb/s Extended ATX/ SSI EEB Motherboard (Refurbished) GA-7PESH4 (rev. 1.0)
