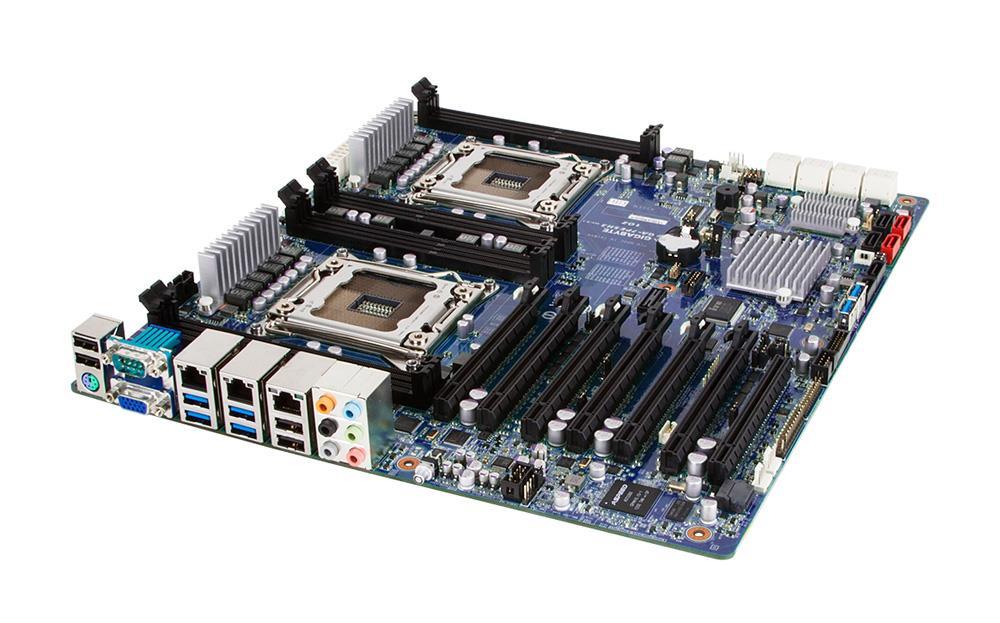

GA-7PESH3 (rev. 1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s Extended ATX/ SSI EEB Server Motherboard (Refurbished)

Mfg Part No:

GA-7PESH3 (rev. 1.0)

Global Part Number (GPN):

1489239160

$951.08 $2,113.52 You Save: $1,162.44 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of GA-7PESH3 (rev. 1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-7PESH3 (rev. 1.0)

Model
Manufacturer	Gigabyte Tech
Manufacturer Part #	GA-7PESH3 (rev. 1.0)
Performance
Product Type	Server Motherboard
Form Factor	E-ATX
CPU Socket Type	LGA 2011
Supported CPU(s)	Intel Xeon Processor
Supported CPU Technologies	64-bit Hyper-Threading Technology Intel Turbo Boost Technology Intel Virtualization Technology
Chipset	Intel C602
Number of Memory Slot(s)	8
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-8500 (DDR3-1066)
Maximum Installed Memory	Single, dual and quad rank RDIMM modules up to 32GB supported Single and dual rank UDIMM modules up to 8GB supported
Expansion Slots	PCI-E x16
Expansion Slots Details	1 x PCIe x16 (Gen3 x16 bus) slot 6 x PCIe x16 (Gen3 x8 bus) slots 4 x PCIe x16 (Gen3 x16 bus) slots Support NVIDIA SLI and AMD CrossFireX technologies (4-way)
Storage Controller	SAS 6.0 Gbps SATA 3.0 Gbps SATA 6.0 Gbps
Storage Controller Details	8 x SAS 6Gb/s ports 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports
On-Board Video Controller	ASPEED AST2300
Audio Controller	Realtek ALC892
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Audio-Out CPU Fan Connector Microphone PS/2 RJ-45 Serial TPM Header USB 2.0 USB 3.0
Connectors/Ports Details	Internal I/O Connectors 2 x CPU fan headers 4 x System fan headers 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PMBus connector 2 x SAS SGPIO headers 4 x SAS 6Gb/s ports 1 x SATA SGPIO header 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports 1 x LSI RAID key header 2 x SATA port DOM support jumpers 2 x USB 3.0 vertical Type A 1 x TPM header 1 x CMOS battery 1 x BIOS write protect jumper 1 x Clear CMOS jumper 1 x USB 3.0 header 1 x USB 2.0 header 1 x HDD back plane board header 1 x Front panel header 1 x Skip supervisor password jumper 1 x S3 Power On Select jumper 1 x ME recovery jumper 1 x Chassis intrusion header 1 x BIOS recovery jumper 1 x IPMB connector 1 x BMC firmware readiness LED 1 x Force to Stop FRB1 Timer jumper 1 x Front audio header 1 x S/PDIF-Out header 1 x PMBus Power Select jumper Rear I/O Connectors 4 x USB 3.0 4 x USB 2.0 1 x PS/2 1 x VGA 1 x Serial 3 x RJ45 6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) 1 x ID button with LED

Request for Quote: GA-7PESH3 (rev. 1.0)

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-7PESH3 (rev. 1.0). Or Request a Quote below:

Quantity

How soon you need it?

General Information

GA-7PESH3 (rev. 1.0) Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s Extended ATX/ SSI EEB Server Motherboard (Refurbished)
