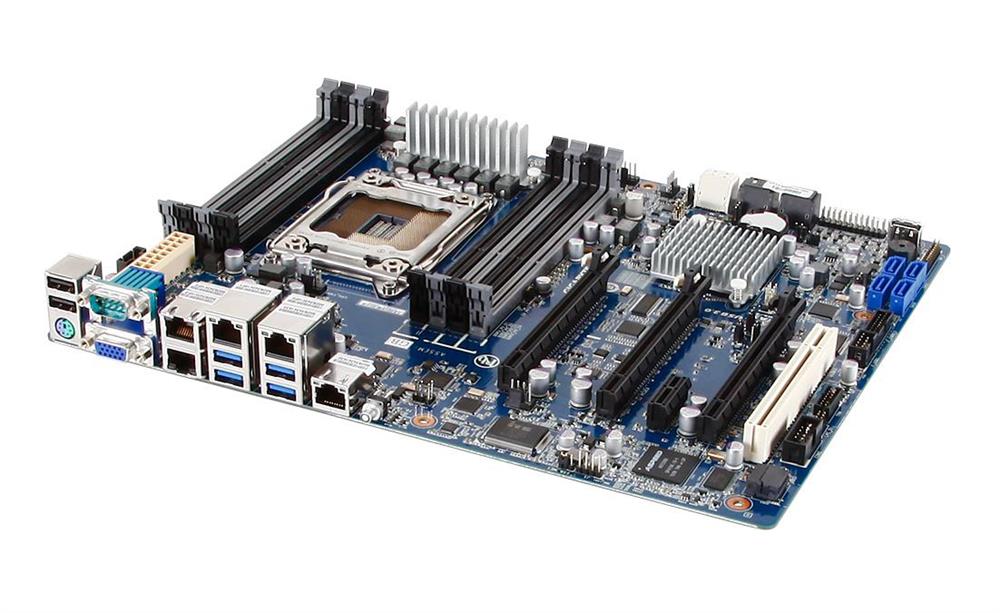

GA-6PXSV4(rev.1.0) Gigabyte Socket LGA 2011 Intel C604 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s ATX Server Motherboard (Refurbished)
GA-6PXSV4(rev.1.0) Gigabyte Socket LGA 2011 Intel C604 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s ATX Server Motherboard (Refurbished)

GA-6PXSV4(rev.1.0) Gigabyte Socket LGA 2011 Intel C604 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s ATX Server Motherboard (Refurbished)

Mfg Part No:

GA-6PXSV4(rev.1.0)

Icon Global Part Number (GPN):

1489281425

$951.08 $2,113.52 You Save: $1,162.44 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of GA-6PXSV4(rev.1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-6PXSV4(rev.1.0)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-6PXSV4(rev.1.0)
Performance
Product Type Server Motherboard
Form Factor ATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies 64-bit
 Hyper-Threading Technology
 Intel Turbo Boost Technology
 Intel Virtualization Technology
Chipset Intel C604
Number of Memory Slot(s) 8
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory
  • Single, dual and quad rank RDIMM modules up to 32GB supported
  • Single and dual rank UDIMM modules up to 8GB supported
    		•
    Expansion Slots PCI
     PCI-E x1
     PCI-E x16
    Expansion Slots Details
  • 1 x PCIe x16 (Gen3 x16 bus) slot
  • 2 x PCIe x16 (Gen3 x8 bus) slots
  • 1 x PCIe x1 (Gen2 x1 bus) slot
  • 1 x PCI slot
  • or (via PCIe switch)
  • 2 x PCIe x16 (Gen3 x16 bus) slots
  • 1 x PCIe x1 (Gen2 x1 bus) slot
  • 1 x PCI slot
  • Supports NVIDIA SLI and AMD CrossFireX technologies (2-way, 3-way)
    		•
    Storage Controller SAS 3.0 Gbps
     SATA 3.0 Gbps
     SATA 6.0 Gbps
    Storage Controller Details
  • 4 x SAS 3Gb/s ports
  • 2 x SATA III 6Gb/s ports
  • 4 x SATA II 3Gb/s ports
    		•
    On-Board Video Controller ASPEED AST2300
    Network Gigabit Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     8-pin 12V Power Connector
     CPU Fan Connector
     PS/2
     RJ-45
     Serial
     TPM Header
     USB 2.0
     USB 3.0
    Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 4 x System fan headers
  • 1 x Power management connector
  • 2 x SATA III 6GB/s ports
  • 4 x SATA II 3GB/s ports
  • 1 x Front panel header
  • 1 x SATA SGPIO header
  • 1 x SATA port 1 DOM support jumper
  • 1 x SATA port 0 DOM support jumper
  • 1 x Clear password jumper
  • 1 x Chassis intrusion jumper
  • 1 x Clear CMOS jumper
  • 1 x USB 2.0 Type A connector
  • 1 x Back plane board header
  • 4 x SAS 3Gb/s ports
  • 1 x BIOS Recovery jumper
  • 1 x USB 3.0 header
  • 1 x USB 2.0 header
  • 1 x SAS SGPIO header
  • 1 x BIOS Write Protect jumper
  • 1 x Force to Stop FRB3 Timer jumper
  • 1 x TPM header
  • 1 x Serial header
  • 1 x ME Recovery jumper

    • Rear I/O Connectors
  • 4 x USB 3.0
  • 2 x USB 2.0
  • 1 x PS/2
  • 1 x VGA
  • 1 x Serial
  • 5 x RJ45
  • 1 x ID button with LED
    		•
