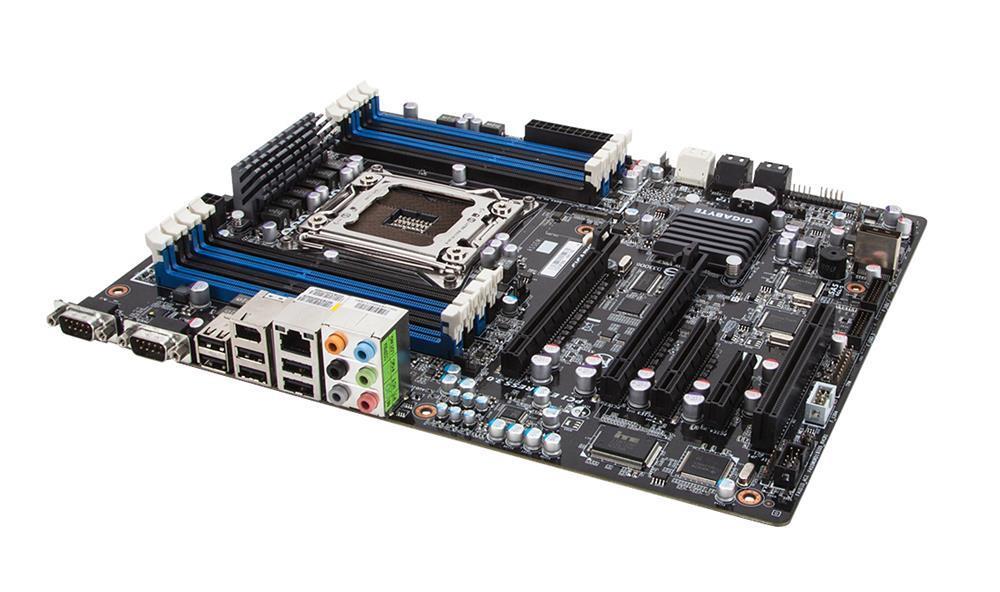

GA-6PXSV1(rev.1.0) Gigabyte Socket LGA 2011 Intel C604 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s ATX Server Motherboard (Refurbished) GA-6PXSV1 (rev. 1.0)
GA-6PXSV1(rev.1.0) Gigabyte Socket LGA 2011 Intel C604 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s ATX Server Motherboard (Refurbished) GA-6PXSV1 (rev. 1.0)

GA-6PXSV1(rev.1.0) Gigabyte Socket LGA 2011 Intel C604 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s ATX Server Motherboard (Refurbished) GA-6PXSV1 (rev. 1.0)

Mfg Part No:

GA-6PXSV1(rev.1.0)

Icon Global Part Number (GPN):

1489281474

$951.08 $2,113.52 You Save: $1,162.44 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of GA-6PXSV1(rev.1.0)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-6PXSV1(rev.1.0)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-6PXSV1(rev.1.0)
Performance
Product Type Server Motherboard
Form Factor ATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies 64-bit
 AES New Instructions
 Execute Disable Bit
 Hyper-Threading Technology
 Idle States
 Intel Trusted Execution Technology
 Intel Turbo Boost Technology
 Intel Virtualization Technology
 Thermal Monitoring Technologies
Chipset Intel C604
Number of Memory Slot(s) 8
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 8GB 32GB
Expansion Slots PCI
 PCI-E x16
 PCI-E x4
 PCI-E x8
Expansion Slots Details
  • 1 x PCIe x16 (Gen3 x16 bus) slot?
  • 1 x PCIe x16 (Gen3 x8 bus) slot
  • 1 x PCIe x8 (Gen3 x8 bus) slot
  • 1 x PCIe x4 (Gen2 x4 bus) slot
  • 1 x PCI slot
    		•
    Storage Controller SATA 3.0 Gbps
     SATA 6.0 Gbps
    Storage Controller Details
  • 2 x SATA III 6Gb/s ports
  • 4 x SATA II 3Gb/s ports
    		•
    Audio Controller Realtek ALC892
    Network Gigabit Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     8-pin 12V Power Connector
     Audio-In
     Audio-Out
     CPU Fan Connector
     Microphone
     RJ-45
     S/PDIF
     Serial
     TPM Header
     USB 2.0
    Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x System fan headers
  • 2 x SATA III 6Gb/s ports
  • 4 x SATA II 3Gb/s ports
  • 1 x CMOS battery
  • 1 x Power LED header
  • 1 x Clear CMOS jumper
  • 1 x Front panel connector
  • 1 x Front audio header
  • 1 x Mini-SAS connector
  • 2 x USB 3.0 headers
  • 1 x TPM header
  • 1 x IEEE 1394 header
  • 1 x BIOS write protect jumper
  • 1 x ME recovery jumper
  • 1 x BIOS recovery jumper
  • 1 x Clear password jumper
  • 1 x S/PDIF header

    • Rear I/O Connectors
  • 6 x USB 2.0
  • 1 x IEEE 1394
  • 2 x Serial
  • 1 x RJ45
  • 6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    		•
    Request for Quote:  GA-6PXSV1(rev.1.0)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-6PXSV1(rev.1.0). Or Request a Quote below:



    General Information

  • GA-6PXSV1(rev.1.0) Gigabyte Socket LGA 2011 Intel C604 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 8x DIMM 2x SATA 6.0Gb/s ATX Server Motherboard (Refurbished) GA-6PXSV1 (rev. 1.0)
