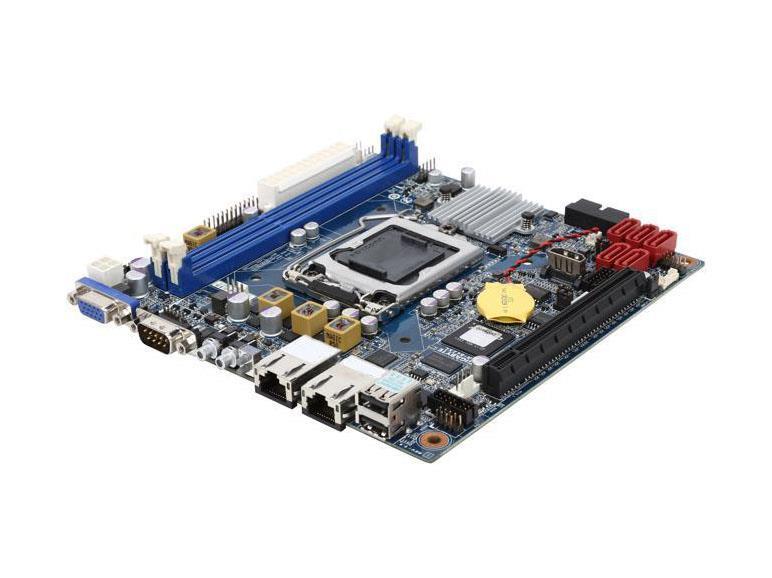

GA-6LISL(rev.1.1) Gigabyte Socket LGA 1150 Intel C226 Chipset Xeon E3-1200 v3/v4 Core i3 / Pentium / Celeron Processors Support 2x DIMM 5x SATA 6.0Gb/s Mini-ITX Server Motherboard (Refurbished)
GA-6LISL(rev.1.1) Gigabyte Socket LGA 1150 Intel C226 Chipset Xeon E3-1200 v3/v4 Core i3 / Pentium / Celeron Processors Support 2x DIMM 5x SATA 6.0Gb/s Mini-ITX Server Motherboard (Refurbished)

GA-6LISL(rev.1.1) Gigabyte Socket LGA 1150 Intel C226 Chipset Xeon E3-1200 v3/v4 Core i3 / Pentium / Celeron Processors Support 2x DIMM 5x SATA 6.0Gb/s Mini-ITX Server Motherboard (Refurbished)

Mfg Part No:

GA-6LISL(rev.1.1)

Icon Global Part Number (GPN):

1489281340

$951.08 $2,113.52 You Save: $1,162.44 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of GA-6LISL(rev.1.1)? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-6LISL(rev.1.1)

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-6LISL(rev.1.1)
Performance
Product Type Server Motherboard
Form Factor Mini-ITX
CPU Socket Type LGA 1150
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Pentium Processor
 Intel Xeon Processor
Supported CPU Technologies 64-bit
 Hyper-Threading Technology
 Intel Turbo Boost Technology
 Intel Virtualization Technology
Chipset Intel C226
Number of Memory Slot(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
Maximum Installed Memory 16GB
Expansion Slots PCI-E x16
Expansion Slots Details
  • 1 x PCIe x16 (Gen3 x16 bus) slot
    		•
    Storage Controller SATA 6.0 Gbps
    Storage Controller Details
  • 5 x SATA III 6Gb/s ports
    		•
    On-Board Video Controller ASPEED AST2300
    Network Gigabit Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     CPU Fan Connector
     HDMI
     RJ-45
     Serial
     TPM Header
     USB 2.0
    Connectors/Ports Details Internal I/O Connectors
  • 1 x Front panel VGA header
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin 12V auxiliary power connector
  • 1 x PCIe x16 and x8 bandwidth switch jumper
  • 1 x CPU fan header
  • 1 x Front panel header
  • 3 x System fan headers
  • 1 x PMBus connector
  • 1 x USB 3.0 header
  • 1 x USB 2.0 header
  • 1 x HDMI connector
  • 1 x SATA port 4 DOM support jumper
  • 1 x Case open intrusion header
  • 1 x Battery power cable connector
  • 5 x SATA III 6Gb/s ports
  • 1 x SATA SGPIO header
  • 1 x Clear CMOS jumper
  • 1 x ME update jumper
  • 1 x BIOS recovery jumper
  • 1 x BMC readiness LED
  • 1 x IPMB connector
  • 1 x TPM header
    • Rear I/O Connectors
  • 2 x USB 2.0
  • 1 x VGA
  • 1 x Serial
  • 2 x RJ45
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
    		•
    Request for Quote:  GA-6LISL(rev.1.1)

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no GA-6LISL(rev.1.1). Or Request a Quote below:



    General Information

  • GA-6LISL(rev.1.1) Gigabyte Socket LGA 1150 Intel C226 Chipset Xeon E3-1200 v3/v4 Core i3 / Pentium / Celeron Processors Support 2x DIMM 5x SATA 6.0Gb/s Mini-ITX Server Motherboard (Refurbished)
