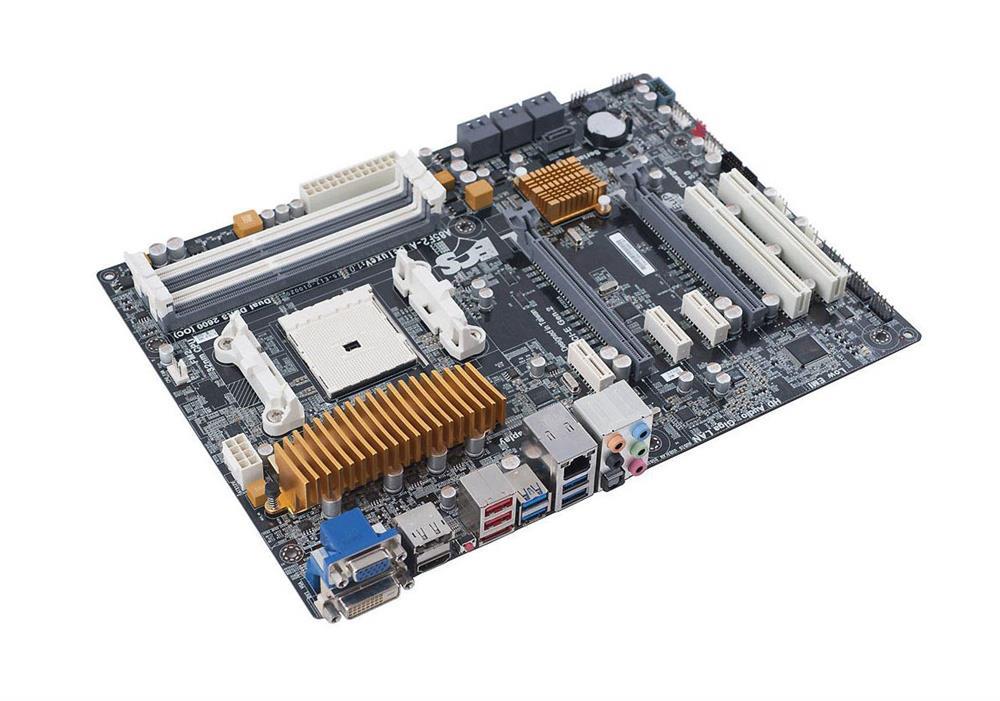

A85F2ADELUXE ECS A85f2-a Deluxe Socket Fm2 Motherboard Atx Socket Fm2 A85x Hudson D4 Fch DDR3 2600 Oc MHz SATA Iii 6GB/s Raid 8-ch Audio Gigabit Lan Usb 3.0 PCie Directx11 (Refurbished)
A85F2ADELUXE ECS A85f2-a Deluxe Socket Fm2 Motherboard Atx Socket Fm2 A85x Hudson D4 Fch DDR3 2600 Oc MHz SATA Iii 6GB/s Raid 8-ch Audio Gigabit Lan Usb 3.0 PCie Directx11 (Refurbished)

A85F2ADELUXE ECS A85f2-a Deluxe Socket Fm2 Motherboard Atx Socket Fm2 A85x Hudson D4 Fch DDR3 2600 Oc MHz SATA Iii 6GB/s Raid 8-ch Audio Gigabit Lan Usb 3.0 PCie Directx11 (Refurbished)

Mfg Part No:

A85F2ADELUXE

Icon Global Part Number (GPN):

1472233776

$333.13 $740.28 You Save: $407.15 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of A85F2ADELUXE? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for A85F2ADELUXE

Model
Manufacturer ECS Elite
Manufacturer Part # A85F2ADELUXE
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type Socket FM2
Supported CPU(s) AMD A-Series Processor
 AMD E-Series
Chipset AMD A85X
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
Storage Controller SATA 6.0 Gbps
Audio Controller VIA VT1819S
Network Fast Ethernet
 Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 COM
 D-Sub
 DisplayPort
 DVI-D
 eSATA
 HDMI
 RJ-45
 Serial
 TPM Header
 USB 2.0
 USB 3.0
Connectors/Ports Details Rear Panel I/O
  • 1 X Audio port (Line-in,4x Line-out, SPDIF out)
  • 1 X RJ-45 port
  • 1 X HDMI port(s)
  • 1 X DVI-D port(s)
  • 1 X Display port
  • 1 X D-Sub (VGA) port(s)
  • 1 X eSATA 6Gb/s port(s)
  • 4 X USB3.0 port(s)
  • 2 X USB2.0 port(s)
  • 1 X Clear_CMOS Button

    • Connectors & Headers
  • 1 X 24-pin ATX Power Supply connector
  • 1 X 8-pin ATX 12V Power Connector
  • 1 X 4-pin CPU_FAN connector
  • 1 X 3-pin SYS_FAN connector with smart fan
  • 1 X 3-pin PWR_FAN connector
  • 1 X Front Panel switch/LED header
  • 1 X Front panel audio header
  • 1 X Speaker header
  • 1 X USB 3.0 header
    • Support additional 2 USB ports
  • 3 X USB 2.0 header
    • Support additional 6 USB ports Support EZ charger (gray color)
  • 7 X SATA III 6Gb/s connector(s)
  • 1 X CLR_CMOS header
  • 1 X Serial port header (COM)
    		•
    Request for Quote:  A85F2ADELUXE

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no A85F2ADELUXE. Or Request a Quote below:



    General Information

  • A85F2ADELUXE ECS A85f2-a Deluxe Socket Fm2 Motherboard Atx Socket Fm2 A85x Hudson D4 Fch DDR3 2600 Oc MHz SATA Iii 6GB/s Raid 8-ch Audio Gigabit Lan Usb 3.0 PCie Directx11 (Refurbished)
