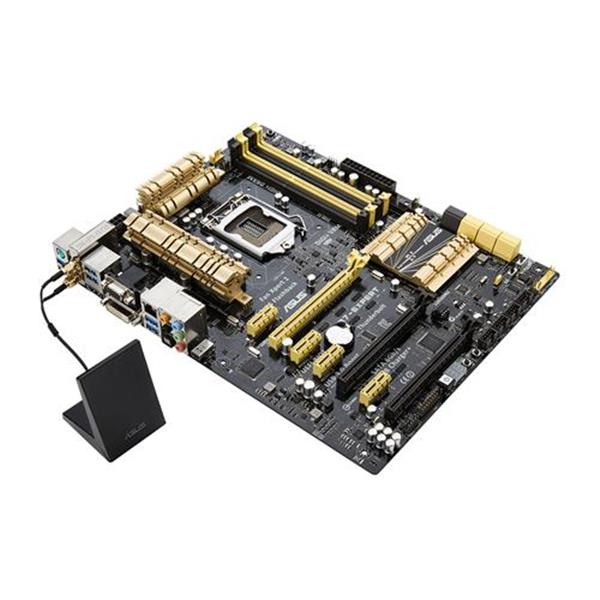

Z87-EXPERT-DDO ASUS Z87-EXPERT Socket LGA 1150 Intel Z87 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

Z87-EXPERT-DDO

Global Part Number (GPN):

1476568876

$392.38 $871.95 You Save: $479.57 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of Z87-EXPERT-DDO? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for Z87-EXPERT-DDO

Model
Manufacturer	ASUS
Manufacturer Part #	Z87-EXPERT-DDO
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1150
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel Z87
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-16000 (DDR3-2000) PC3-19200 (DDR3-2400)
Maximum Installed Memory	32 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16
Expansion Slots Details	3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) *3 4 x PCIe 2.0 x1
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC1150
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x Thunderbolt port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 6 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n and Bluetooth v4.0/3.0+HS) Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DirectKey Button(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback® button(s)

Request for Quote: Z87-EXPERT-DDO

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z87-EXPERT-DDO. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.

This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.

Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.

This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.

All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.

Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.

Z87-EXPERT-DDO ASUS Z87-EXPERT Socket LGA 1150 Intel Z87 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
