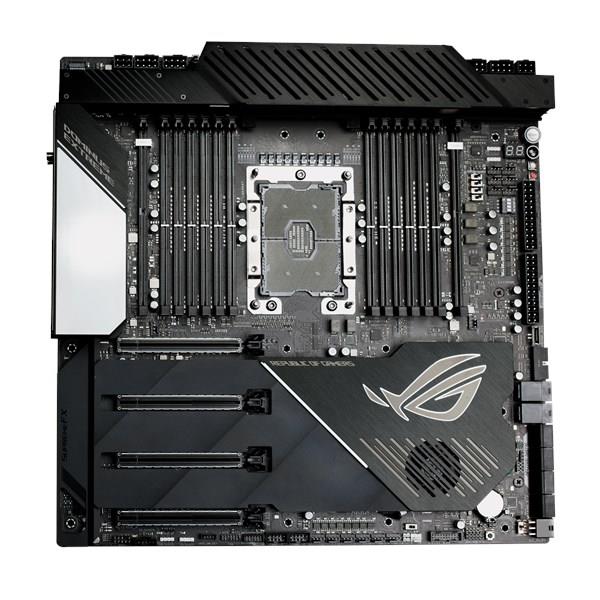

ROG Dominus Extreme ASUS Socket LGA 3647 Intel Xeon W-3175X Processors Support DDR4 12x DIMM 8x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
ROG Dominus Extreme ASUS Socket LGA 3647 Intel Xeon W-3175X Processors Support DDR4 12x DIMM 8x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

ROG Dominus Extreme ASUS Socket LGA 3647 Intel Xeon W-3175X Processors Support DDR4 12x DIMM 8x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

ROG Dominus Extreme

Icon Global Part Number (GPN):

1491059425

$1,976.33 $4,391.85 You Save: $2,415.52 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of ROG Dominus Extreme? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for ROG Dominus Extreme

Model
Manufacturer ASUS
Manufacturer Part # ROG Dominus Extreme
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 3647
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies Execute Disable Bit
 Hyper-Threading Technology
 Idle States
 Intel Trusted Execution Technology
 Intel Virtualization Technology
Chipset Intel C621
Number of Memory Slot(s) 12
Number of Memory Channel(s) 6
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-21333 (DDR4-2666)
 PC4-25600 (DDR4-3200)
Maximum Installed Memory 192 GB
Expansion Slots PCI-E 3.0 x16
Storage Controller SATA 6.0 Gbps
Network Gigabit Ethernet
Connectors/Ports Chassis Fan Connector
 CPU Fan Connector
 RJ-45
 USB 3.1
Connectors/Ports Details Back I/O Ports
  • 2 x USB 3.1 Gen 2 (black)Type-C
  • 2 x USB 3.1 Gen 2 (red)Type-A
  • 8 x USB 3.1 Gen 1 (blue)
  • 1 x Optical S/PDIF out
  • 1 x Clear CMOS button(s)
  • 1 x USB BIOS Flashback® Button(s)
  • 1 x ASUS Wi-Fi Module
  • 5 x LED-illuminated audio jacks
  • 1 x Aquantia AQC-107 10G LAN port
  • Anti-surge LAN (RJ45) port

    • Internal I/O Ports
  • 2 x Aura Addressable Strip Header(s)
  • 2 x Aura RGB Strip Headers
  • 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 8 x SATA 6Gb/s connector(s)
  • 1 x VROC_HW_Key
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  • 2 x LED connectors (Back I/O cover, PCH, OLED)
  • 2 x Chassis Fan connector(s) (2 x 4 -pin)
  • 1 x PCH_FAN (1 x 3 -pin)
  • 2 x HS_FAN (2 x 4 -pin)
  • 2 x W_PUMP+ connector (2 x 4 -pin)
  • 1 x WB_SENSOR (1 x 9 -pin)
  • 1 x Thunderbolt header(s)
  • 2 x 6-pin EATX 12 V Power connector
  • 2 x 24-pin EATX Power connector(s)
  • 4 x 8-pin EATX 12V Power connectors
  • 1 x 6-pin EZ_PLUG Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Slow Mode switch(es)
  • 13 x ProbeIt Measurement Points
  • 1 x BIOS Switch button(s)
  • 1 x Node Connector(s)
  • 1 x LN2 Mode jumper(s)
  • 1 x Safe Boot button
  • 1 x ReTry button
  • 1 x 14-1 pin TPM connector
  • 2 x U.2 connector
  • 1 x System panel connector
  • 1 x PCIe x16 lane switch
  • 2 x T_Sensor Connector
  • 1 x W_IN header
  • 1 x W_OUT header
  • 1 x W_FLOW header
  • 1 x USB 3.1 Gen 2 front panel connector
  • 1 x Speaker connector
  • 2 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
  • 1 x PAUSE Switch
  • 2 x RSVD Switch
  • 8 x Radiator Fan Headers
  • 1 x Start button
  • 1 x Reset button
  • 1 x Q-Code
    		•
