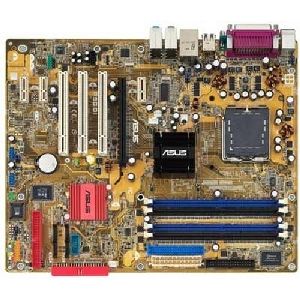

P5GD1-BVM/S ASUS P5GD1 Socket LGA 775 Intel 915P Express + ICH6R Intel Pentium 4/ Celeron Processors Support DDR 4x DIMM 4x SATA ATX Motherboard (Refurbished)

Mfg Part No:

P5GD1-BVM/S

Global Part Number (GPN):

1473053751

$269.84 $599.65 You Save: $329.81 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of P5GD1-BVM/S? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for P5GD1-BVM/S

Model
Manufacturer	ASUS
Manufacturer Part #	P5GD1-BVM/S
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 775
Supported CPU(s)	Intel Celeron Processor Intel Pentium 4 Processor
FSB Speed (Maximum)	800 MHz
Supported CPU Technologies	Hyper-Threading Technology
Chipset	Intel 915P Express
South Bridge Chipset	Intel ICH6R
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC-2700 (DDR-333) PC-3200 (DDR-400)
Maximum Installed Memory	4 GB
Expansion Slots	PCI-E x1 PCI-E x16
Expansion Slots Details	1 x PCI Express x16 slot for discrete graphics card 3 x PCI Express x1 3 x PCI
Storage Controller Details	Intel® ICH6R South Bridge 1 x UltraDMA 100/66/33 4 x Serial ATA with Intel® Matrix Storage Technology with RAID 0, 1 support ITE IDE RAID controller 2 x UltraDMA 133/100/66 with JBOD, RAID 0, 1, 0+1 support
Audio Controller	Realtek ALC861
Connectors/Ports	24-pin ATX Power Connector Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector Parallel Serial USB 1.1 USB 2.0
Connectors/Ports Details	Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x S/PDIF Output 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x 8-Channel Audio I/O 1 x RJ45 4 x USB 2.0/1.1 Internal I/O Connectors 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports CPU / Chassis / Power FAN connectors Chassis Intrusion CD audio in GAME/MIDI connector Front panel High Definition Audio connector 1 x COM2 connector 24-pin ATX Power connector 4-pin ATX 12V Power connector
