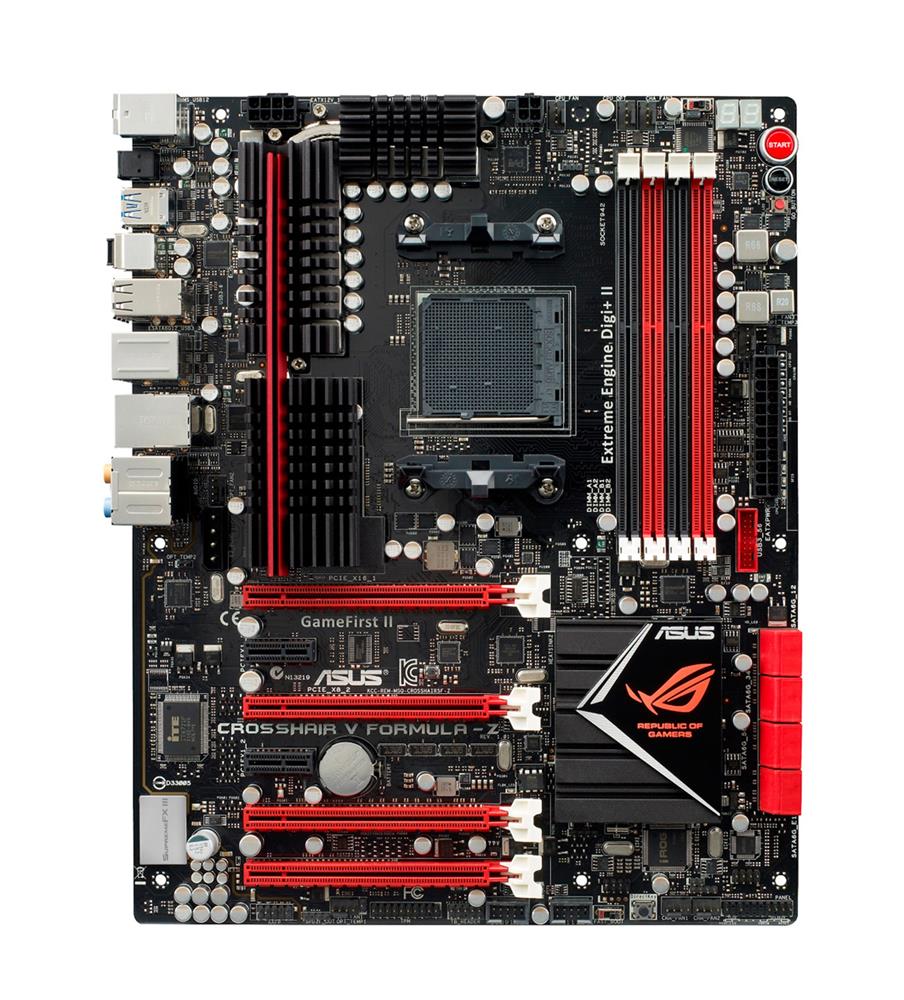

MBCRSH5FZ ASUS Socket AM3+ AMD 990FX + SB950 Chipset AMD FX/ AMD Phenom II/ Athlon II/ AMD Sempron 100 Series Processors DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

MBCRSH5FZ

Global Part Number (GPN):

1482252074

$335.76 $746.13 You Save: $410.37 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of MBCRSH5FZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for MBCRSH5FZ

Model
Manufacturer	ASUS
Manufacturer Part #	MBCRSH5FZ
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket AM3
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor AMD Sempron Processor
Chipset	AMD 990FX
South Bridge Chipset	AMD SB950
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-16000 (DDR3-2000) PC3-19200 (DDR3-2400) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16
Storage Controller	SATA 6.0 Gbps
Network	Gigabit Ethernet
Connectors/Ports	Chassis Fan Connector COM CPU Fan Connector eSATA PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 8 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es) Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 3 x Optional Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x DirectKey Button(s) 1 x DRCT header(s) 8 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Power-on button(s) 1 x Reset button(s) 1 x Go Button(s) 1 x FastBoot switch(es)
