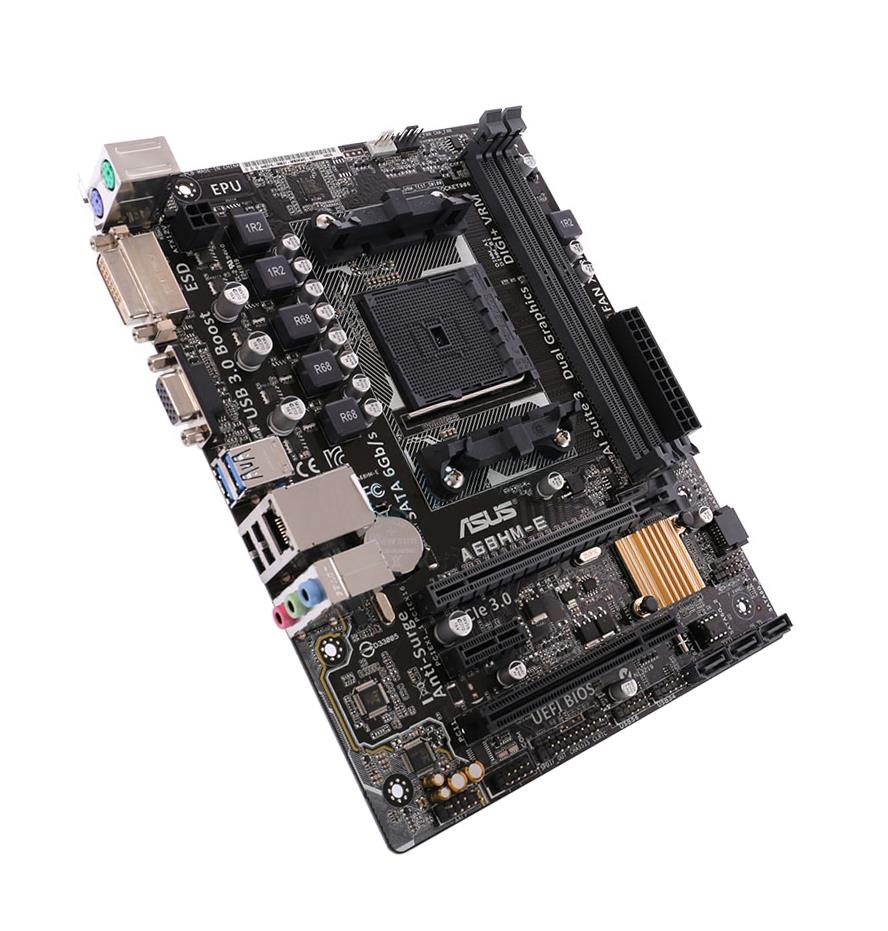

MB-A68HM-E ASUS A68HM-E Socket FM2+ AMD A68 FCH Chipset AMD Athlon/A-Series Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s mATX Motherboard (Refurbished)

Mfg Part No:

MB-A68HM-E

Global Part Number (GPN):

1482679155

$316.01 $702.24 You Save: $386.23 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of MB-A68HM-E? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for MB-A68HM-E

Model
Manufacturer	ASUS
Manufacturer Part #	MB-A68HM-E
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	Socket FM2+
Supported CPU(s)	AMD A-Series Processor AMD Athlon Processor
Chipset	AMD A68H FCH
Number of Memory Slot(s)	2
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-19200 (DDR3-2400) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32 GB
Expansion Slots	PCI PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC887-VD
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out D-Sub DVI PS/2 Keyboard PS/2 Mouse TPM Header USB 3.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)

Request for Quote: MB-A68HM-E

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no MB-A68HM-E. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.

This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.

Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.

This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.

All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.

Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
