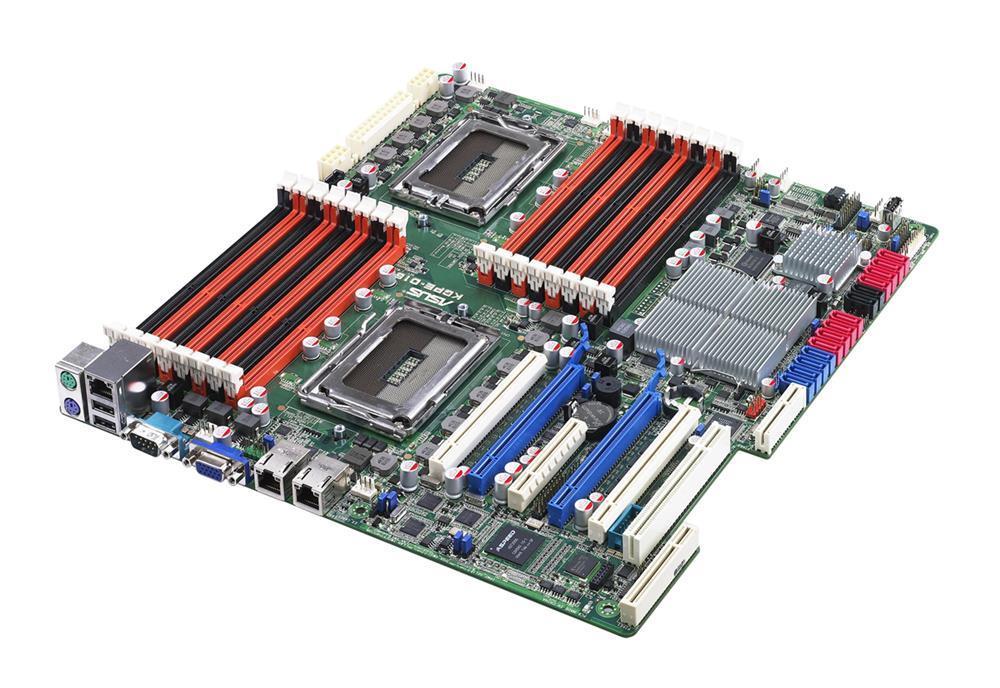

99890Y ASUS Dual Socket G34 AMD SR5690/ SP5100 Chipset AMD Opteron 6100/6200/6300 Series Processors Support EEB Server Motherboard (Refurbished)
99890Y ASUS Dual Socket G34 AMD SR5690/ SP5100 Chipset AMD Opteron 6100/6200/6300 Series Processors Support EEB Server Motherboard (Refurbished)

99890Y ASUS Dual Socket G34 AMD SR5690/ SP5100 Chipset AMD Opteron 6100/6200/6300 Series Processors Support EEB Server Motherboard (Refurbished)

Mfg Part No:

99890Y

$805.18 $1,150.26 You Save: $345.08 (30% Memorial Day Discount)
Availability:Available for Order

Looking for a large quantity of 99890Y? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 99890Y

Model
Manufacturer ASUS
Manufacturer Part # 99890Y
Performance
Product Type Server Motherboard
Form Factor SSI EEB
CPU Socket Type Socket G34
Supported CPU(s) AMD Opteron Processor
Supported CPU Technologies 64-bit
South Bridge Chipset AMD SP5100
Number of Memory Slot(s) 16
Number of Memory Channel(s) 4
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-6400 (DDR3-800)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory
  • 256GB RDIMM
    		•
    Expansion Slots PCI-E x16
     PCI-E x8
    Expansion Slots Details
  • PCI 32bit/33MHz
  • PCI-E x16 (Gen2 X8 Link)
  • PCI-E x16 (Gen2 X16 Link), Auto switch to x8 link if slot 2 is occupied
  • PCI-E x8 (Gen2 X4 Link)
  • PCI-E x16 (Gen2 X16 Link)
  • PCI-E x16 (Gen2 X16 Link), Auto turn off if slot 5 is occupied, For 1U FH/FL Card, MIO supported
  • PIKE Slot for Stroage expansion
    		•
    Storage Controller SATA 6.0 Gbps
    Storage Controller Details SATA Controller AMD SP5100 6 x SATA2 300MB/s PROMISE SW RAID (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 )
    SAS/SATA Controller
  • ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
  • ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
  • ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
  • ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
  • ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
  • ASUS PIKE 9230 4-port SATA 6G RAID card (Optional)
    		•
    On-Board Video Controller ASPEED AST2500
    Network Gigabit Ethernet
    Connectors/Ports CPU Fan Connector
     PS/2 Keyboard
     PS/2 Mouse
     RJ-45
     Serial
     TPM Header
     USB
    Connectors/Ports Details On Board I/O Connector
  • 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)
  • 1 x Management Connector , Onboard socket for management card
  • 3 x USB pin header , Up to 6 Devices
  • 1 x Internal A Type USB Port
  • 8 x Fan Header , 4pin (3pin/4pin fan dual support)
  • 2 x SMBus
  • 1 x Serial Port Header
  • 1 x TPM header
  • 1 x PS/2 KB/MS port

    • Back I/O Ports
  • 1 x External Serial Port
  • 2 x External USB Port
  • 1 x VGA Port
  • 2 x RJ-45
  • 1 x PS/2 KB/Mouse
    		•
