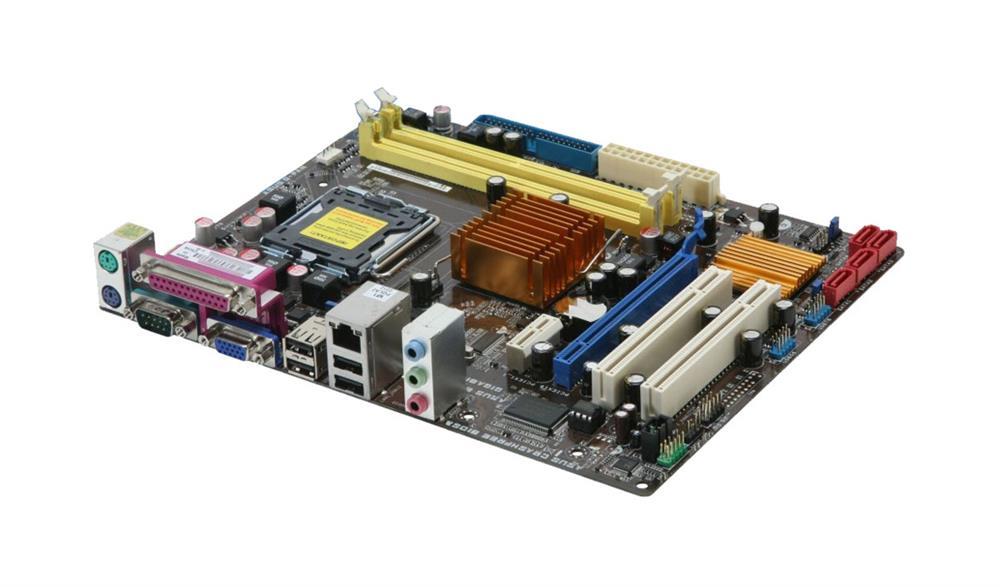

ASUP5QPLAM ASUS P5QPL-AM Socket LGA 775 Intel G41 + ICH7 Chipset Core 2 Quad/ Core 2 Duo/ Core 2 Extreme/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron Processors Support DDR2 2x DIMM 4x SATA 3.0Gb/s uATX Motherboard (Refurbished)

Mfg Part No:

ASUP5QPLAM

Global Part Number (GPN):

1472091376

$313.37 $696.39 You Save: $383.02 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of ASUP5QPLAM? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for ASUP5QPLAM

Model
Manufacturer	ASUS
Manufacturer Part #	ASUP5QPLAM
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 775
Supported CPU(s)	Intel Celeron Dual-Core Processor Intel Core2 Duo Desktop Processor Intel Core2 Extreme Processor Intel Core2 Quad Processor Intel Pentium Dual-Core Processor
Chipset	Intel G41 Express
South Bridge Chipset	Intel ICH7
Number of Memory Slot(s)	2
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC2-5400 (DDR2-667) PC2-6400 (DDR2-800) PC2-8500 (DDR2-1066)
Maximum Installed Memory	8 GB
Expansion Slots	PCI-E x1 PCI-E x16
Expansion Slots Details	1 x PCIe x16 1 x PCIe x1 2 x PCI Support PCIe 1.1 Architecture
Storage Controller	SATA 3.0 Gbps
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Chassis Fan Connector CPU Fan Connector D-Sub PS/2 Keyboard PS/2 Mouse RJ-45 USB 1.1 USB 2.0
Connectors/Ports Details	Back Panel I/O Ports 1 x D-Sub 1 x Parallel port 1 x PS/2 Mouse 1 x PS/2 Keyboard 1 x LAN(RJ45) port(s) 4 x USB 2.0/1.1 1 x COM port 6 -Channel Audio I/O Internal I/O Connectors 2 x USB connectors support additional 4 USB 2.0 ports 1 x IDE connector 4 x SATA connectors 1 x High Definition front panel audio connector 1 x S/PDIF Out connector System Panel 1 x Internal Speaker connector 1 x CD audio-in connector 24-pin EATX power connector 4-pin ATX 12V Power connector
