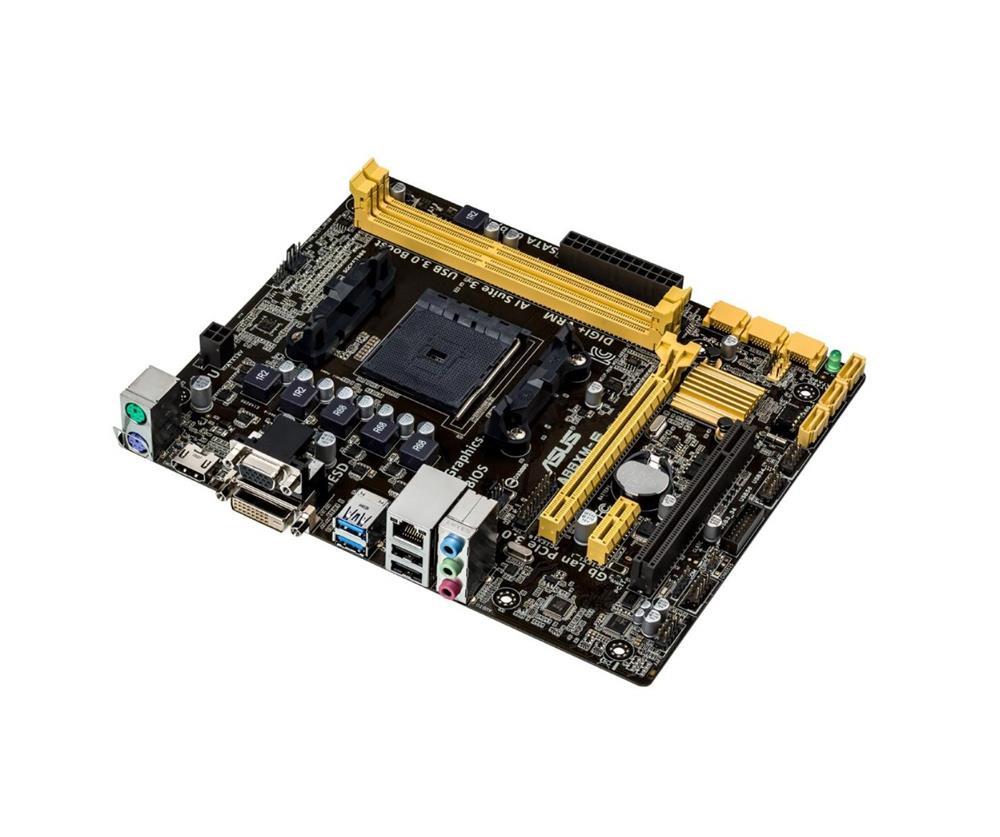

A88XM-E-A1 ASUS Socket FM2+ AMD A88X Chipset AMD Athlon/ A-Series Processors Support DDR3 2x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

A88XM-E-A1

Global Part Number (GPN):

1476481267

$310.74 $690.54 You Save: $379.80 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of A88XM-E-A1? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for A88XM-E-A1

Model
Manufacturer	ASUS
Manufacturer Part #	A88XM-E-A1
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	Socket FM2+
Supported CPU(s)	AMD A-Series Processor AMD Athlon Processor
Number of Memory Slot(s)	2
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866)
Maximum Installed Memory	32GB
Expansion Slots	PCI-E 2.0 x16 PCI-E 3.0 x16
Expansion Slots Details	1 x PCIe 3.0/2.0 x16 *3 1 x PCIe 2.0 x1 1 x PCI
Storage Controller	SATA 6.0 Gbps
Storage Controller Details	6 x SATA 6Gb/s port(s), yellow Support Raid 0, 1, 10, JBOD
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector D-Sub HDMI RJ-45 TPM Header
Connectors/Ports Details	Internal I/O Connectors 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Internal speaker connector(s) 1 x System panel(s) Back Panel Connectors 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s)
Other Information
Features	ASUS 5X Protection ASUS DIGI+ VRM - 3 + 2 Phase digital power design ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention ASUS ESD Guards - Enhanced ESD protection ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU EPU ASUS Exclusive Features AI Suite 3 Ai Charger Anti-Surge ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface USB 3.0 Boost Disk Unlocker ASUS Quiet Thermal Solution Stylish Fanless Design Heat-sink solution ASUS Fan Xpert ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 ASUS Q-Design ASUS Q-Slot
