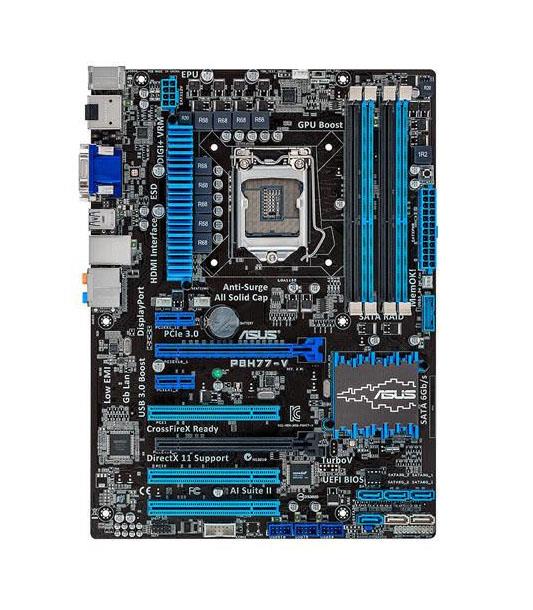

90-MIBHU0-G0EAY0GZ ASUS P8H77-V Socket LGA 1155 Intel H77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 2x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MIBHU0-G0EAY0GZ

Global Part Number (GPN):

1465720227

$391.10 $869.12 You Save: $478.02 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 90-MIBHU0-G0EAY0GZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MIBHU0-G0EAY0GZ

Model
Manufacturer	ASUS
Manufacturer Part #	90-MIBHU0-G0EAY0GZ
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1155
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel H77 Express
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-16000 (DDR3-2000)
Maximum Installed Memory	32 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16
Expansion Slots Details	1 x PCIe 3.0/2.0 x16 (blue) 1 x PCIe 2.0 x16 (x4 mode, black) *1 2 x PCIe 2.0 x1 3 x PCI
Storage Controller	SATA 3.0 Gbps SATA 6.0 Gbps
Audio Controller	VIA VT1708S
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector DC Port DisplayPort DVI PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x GPU Boost switch(es) 1 x Clear CMOS jumper(s)
