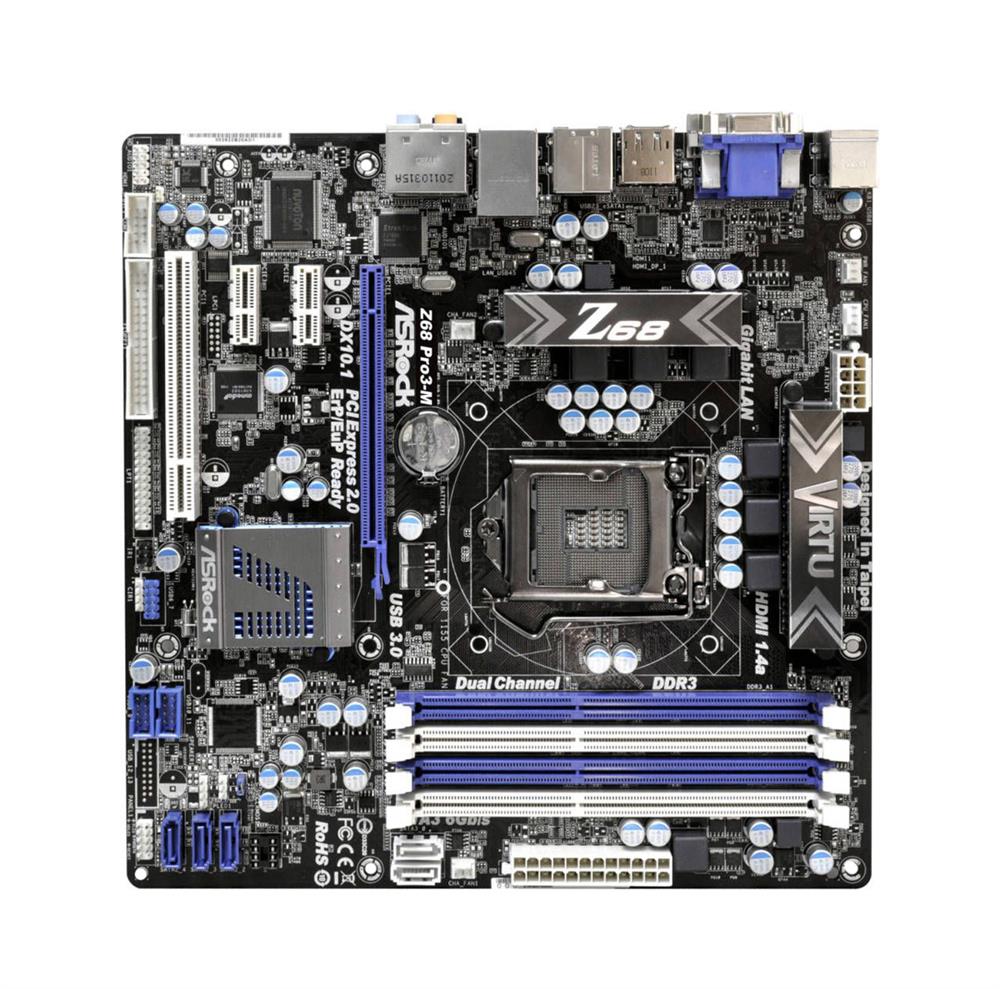

Z68-PRO3-M ASRock Z68 Pro3-M Socket LGA 1155 Intel Z68 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 3x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
Z68-PRO3-M
Global Part Number (GPN):
1471517850
Looking for a large quantity of Z68-PRO3-M? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for Z68-PRO3-M
| Model | |
| Manufacturer | ASRock |
| Manufacturer Part # | Z68-PRO3-M |
| Performance | |
| Product Type | System Board |
| Form Factor | Micro ATX |
| CPU Socket Type | LGA 1155 |
| Supported CPU(s) |
Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor Intel Xeon Processor |
| Supported CPU Technologies |
Hyper-Threading Technology Intel Turbo Boost Technology |
| Chipset | Intel Z68 Express |
| Number of Memory Slot(s) | 4 |
| Number of Memory Channel(s) | 2 |
| Supported Memory Standard(s) |
PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066) |
| Maximum Installed Memory | 32 GB |
| Expansion Slots |
PCI-E 2.0 x1 PCI-E 2.0 x16 |
| Storage Controller |
SATA 3.0 Gbps SATA 6.0 Gbps |
| Audio Controller | Realtek ALC892 |
| Network | Gigabit Ethernet |
| Connectors/Ports |
24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Chassis Fan Connector COM CPU Fan Connector DisplayPort DVI-D eSATA HDMI Microphone Printer Port PS/2 Keyboard RJ-45 S/PDIF USB 2.0 USB 3.1 |
Request for Quote: Z68-PRO3-M
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z68-PRO3-M. Or Request a Quote below:
