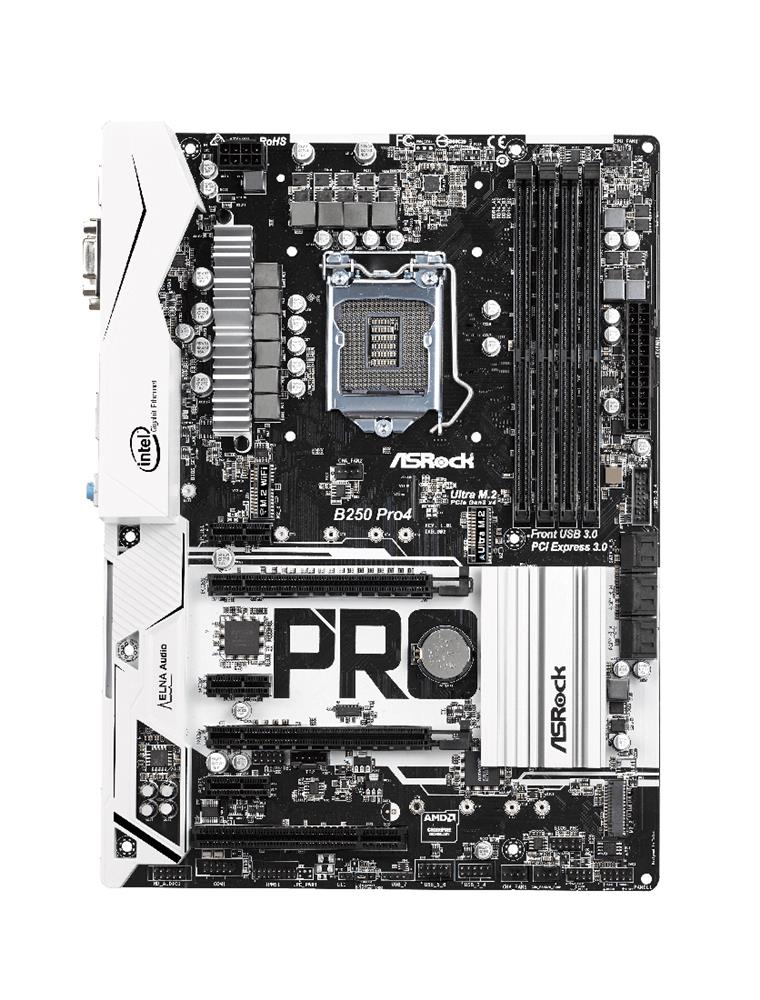

B250 Pro4 ASRock Socket LGA 1151 Intel B250 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
B250 Pro4 ASRock Socket LGA 1151 Intel B250 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

B250 Pro4 ASRock Socket LGA 1151 Intel B250 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

B250 Pro4

$369.21 $527.44 You Save: $158.23 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of B250 Pro4? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for B250 Pro4

Model
Manufacturer ASRock
Manufacturer Part # B250 Pro4
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Supported CPU Technologies Intel Turbo Boost Technology
Chipset Intel B250
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E 3.0 x1
 PCI-E 3.0 x16
Storage Controller SAS 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports Audio-In
 Audio-Out
 Chassis Fan Connector
 COM
 CPU Fan Connector
 D-Sub
 DVI-D
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
 USB 3.1
Connectors/Ports Details Connector
  • 1 x COM Port Header
  • 1 x TPM Header
  • 1 x Chassis Intrusion Header
  • 1 x Power LED and Speaker Header
  • 1 x CPU Fan Connector (4-pin)*
  • 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin)
  • 1 x Thunderbolt™ AIC Connector (10-pin)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)
  • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)

    • Rear Panel I/O
  • 2 x Antenna Ports
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)
  • 3 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)
  • 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone
    		•
    Request for Quote:  B250 Pro4

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no B250 Pro4. Or Request a Quote below:



    General Information

  • B250 Pro4 ASRock Socket LGA 1151 Intel B250 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
