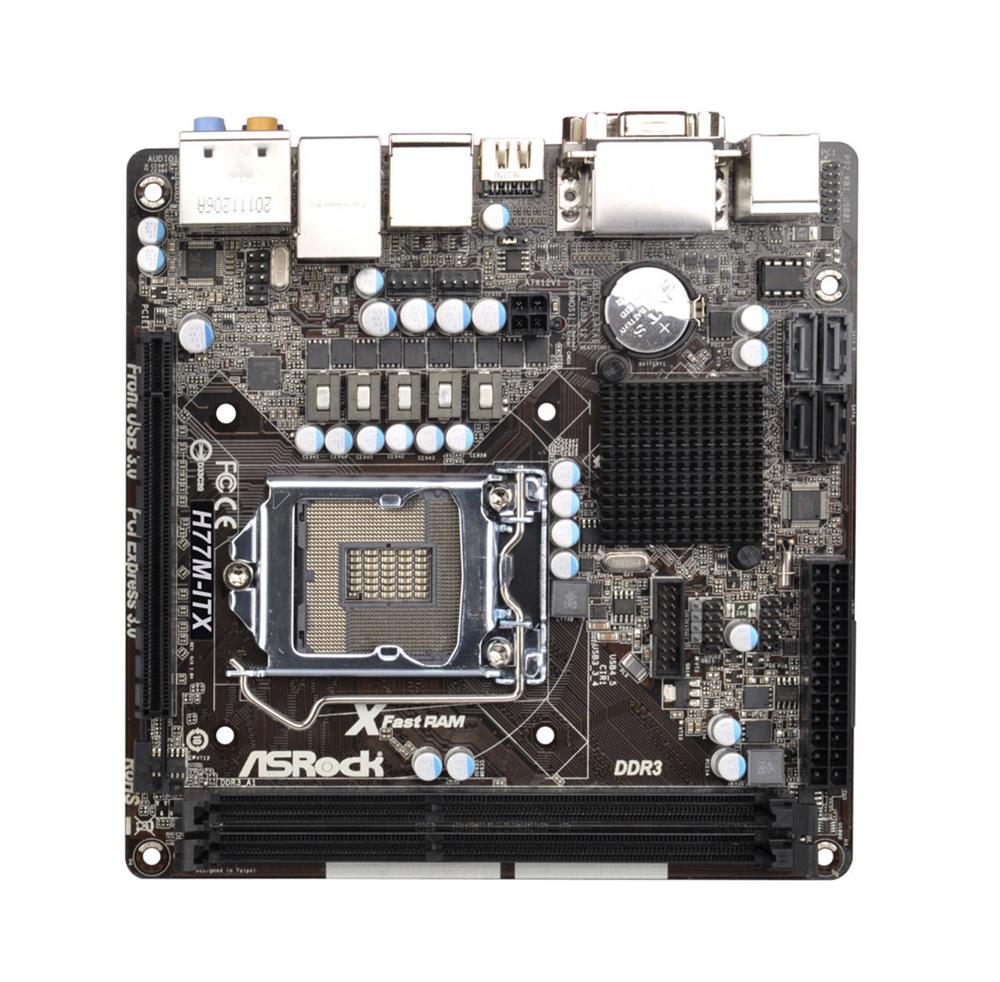

ASR-H77M-ITX ASRock Socket LGA 1155 Intel H77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Xeon / Pentium / Celeron Processors Support DDR3 2x DIMM 2x SATA3 6.0Gb/s Mini-ITX Motherboard (Refurbished)

Mfg Part No:

ASR-H77M-ITX

Global Part Number (GPN):

1475369001

$343.66 $763.69 You Save: $420.03 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of ASR-H77M-ITX? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for ASR-H77M-ITX

Model
Manufacturer	ASRock
Manufacturer Part #	ASR-H77M-ITX
Performance
Product Type	System Board
Form Factor	Mini-ITX
CPU Socket Type	LGA 1155
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor Intel Xeon Processor
Chipset	Intel H77 Express
Number of Memory Slot(s)	2
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-8500 (DDR3-1066)
Maximum Installed Memory	16 GB
Expansion Slots	PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC892
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector Audio-In Chassis Fan Connector D-Sub DVI-D eSATA HDMI PS/2 Keyboard RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Connector 2 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions 2 x SATA3 6.0 Gb/s connectors 1 x CIR header 1 x CPU Fan connector (1 x 4-pin) 1 x Chassis Fan connector (1 x 4-pin) 24 pin ATX power connector 4 pin 12V power connector Front panel audio connector 1 x USB 2.0 header (supports 2 USB 2.0 ports) 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) Rear Panel I/O 1 x PS/2 Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 4 x Ready-to-Use USB 2.0 Ports 1 x eSATA2 Connector 2 x Ready-to-Use USB 3.1 Gen1 Ports 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
