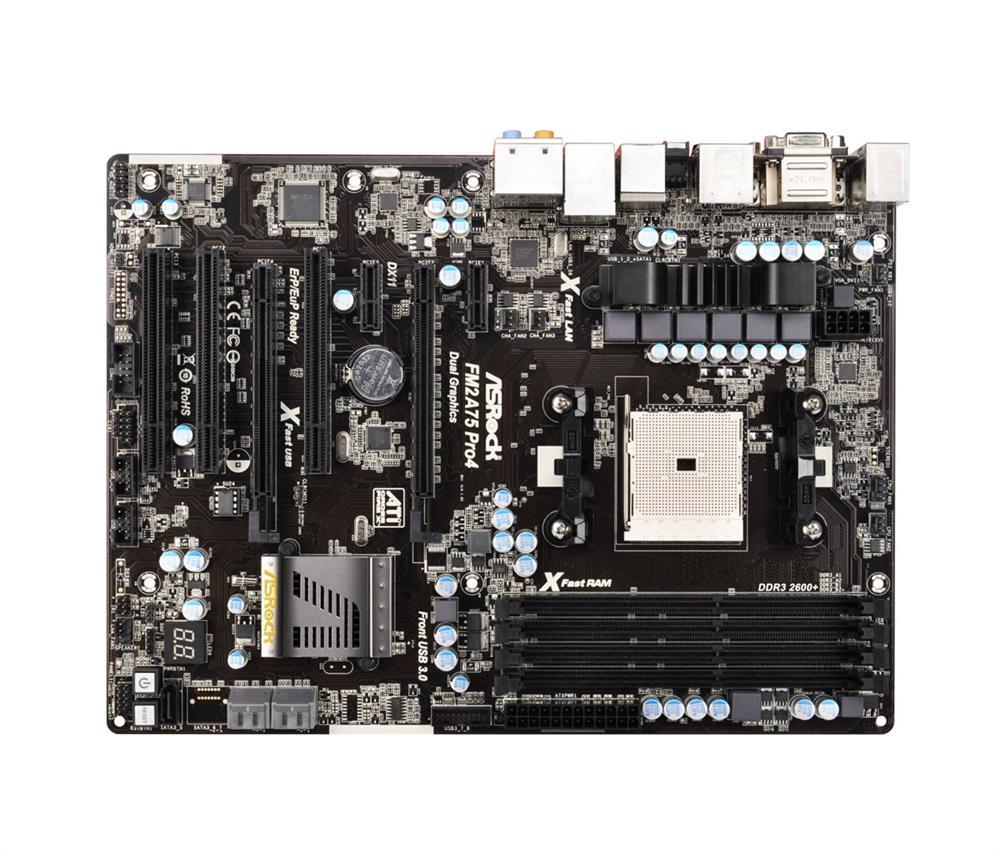

ASR-FM2A75-PRO4 ASRock Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
ASR-FM2A75-PRO4 ASRock Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

ASR-FM2A75-PRO4 ASRock Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

ASR-FM2A75-PRO4

Icon Global Part Number (GPN):

1472325173

$313.37 $696.39 You Save: $383.02 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of ASR-FM2A75-PRO4? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for ASR-FM2A75-PRO4

Model
Manufacturer ASRock
Manufacturer Part # ASR-FM2A75-PRO4
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type Socket FM2
Supported CPU Technologies Cool n Quiet Technology
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-14900 (DDR3-1866)
 PC3-19200 (DDR3-2400)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 64GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
Expansion Slots Details
  • 2 x PCI Express 2.0 x16 slots (PCIE2 x16 mode; PCIE4 x4 mode)
  • 2 x PCI Express 2.0 x1 slots
  • 3 x PCI slots
  • Supports AMD Quad CrossFireX, CrossFireX and Dual Graphics
    		•
    Storage Controller SATA 6.0 Gbps
    Shared Video Memory 2 GB
    Audio Controller Realtek ALC892
    Network Gigabit Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     8-pin 12V Power Connector
     Audio-In
     Audio-Out
     Chassis Fan Connector
     COM
     CPU Fan Connector
     DVI-D
     HDMI
     Microphone
     RJ-45
     USB 2.0
     USB 3.0
    Connectors/Ports Details Connector Ports
  • 5 x SATA3 6.0 Gb/s connectors
  • 1 x IR header
  • 1 x CIR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x Power LED header
  • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
  • 1 x Power Fan connector (3-pin)
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)
  • 1 x Dr. Debug with LED*
  • 1 x Power Switch with LED
  • 1 x Reset Switch with LED
  • 1 x Clear CMOS Switch with LED

    • Rear I/O Ports
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x Ready-to-Use USB 2.0 Ports
  • 1 x eSATA3 Connector
  • 6 x Ready-to-Use USB 3.1 Gen1 Ports
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 1 x Clear CMOS Switch with LED
  • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  ASR-FM2A75-PRO4

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no ASR-FM2A75-PRO4. Or Request a Quote below:



    General Information

  • ASR-FM2A75-PRO4 ASRock Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
