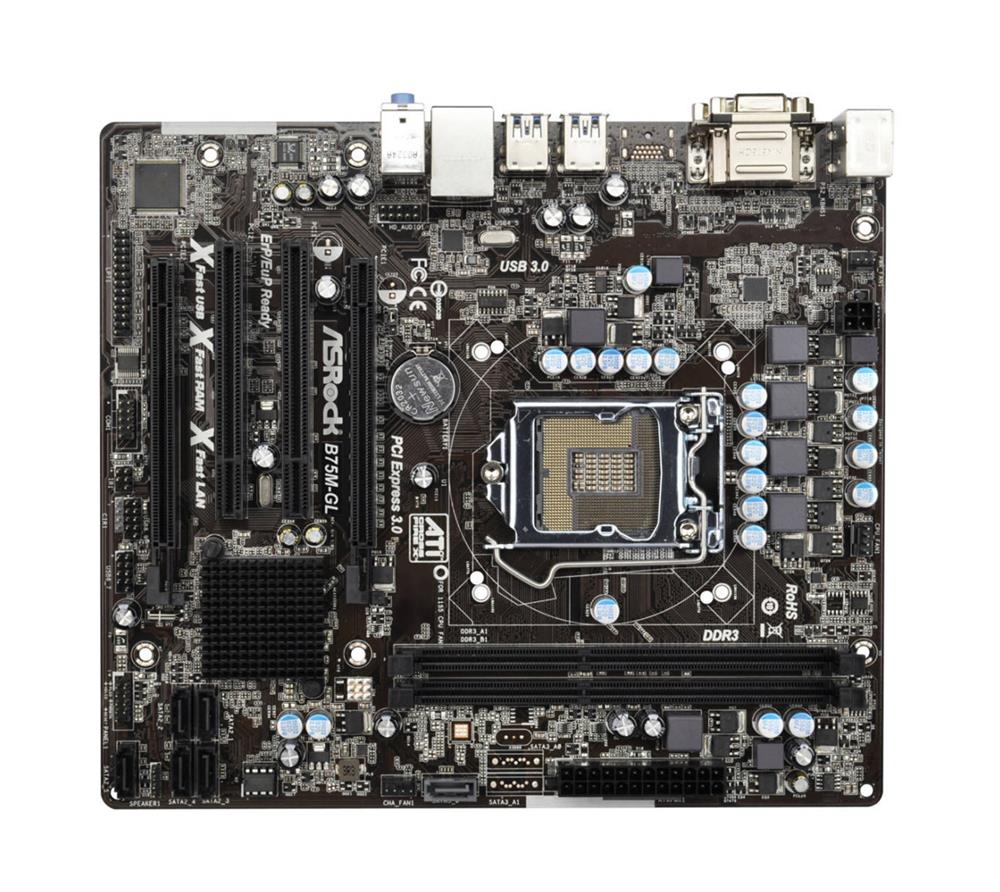

ASR-B75M-GL ASRock B75M-GL Socket LGA 1155 Intel B75 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 2x DIMM 1x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)
ASR-B75M-GL ASRock B75M-GL Socket LGA 1155 Intel B75 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 2x DIMM 1x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)

ASR-B75M-GL ASRock B75M-GL Socket LGA 1155 Intel B75 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 2x DIMM 1x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

ASR-B75M-GL

Icon Global Part Number (GPN):

1472325164

$314.69 $699.31 You Save: $384.62 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of ASR-B75M-GL? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for ASR-B75M-GL

Model
Manufacturer ASRock
Manufacturer Part # ASR-B75M-GL
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1155
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Chipset Intel B75 Express
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16GB
Expansion Slots PCI-E 2.0 x16
 PCI-E 3.0 x16
Expansion Slots Details
  • 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
  • 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
  • 2 x PCI slots
  • Supports AMD Quad CrossFireX and CrossFireX
    		•
    Storage Controller SATA 6.0 Gbps
    Audio Controller Realtek ALC662
    Network Gigabit Ethernet
    Connectors/Ports Audio-In
     Chassis Fan Connector
     COM
     CPU Fan Connector
     Microphone
     PS/2 Keyboard
     PS/2 Mouse
     RJ-45
     USB 2.0
    Connectors/Ports Details Connectors
  • 5 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
  • 1 x SATA3 6.0 Gb/s connector
  • 1 x IR header
  • 1 x CIR header
  • 1 x Print port header
  • 1 x COM port header
  • 1 x CPU Fan connector (4-pin)
  • 1 x Chassis Fan connector (4-pin)
  • 1 x Power Fan connector (3-pin)
  • 24 pin ATX power connector
  • 4 pin 12V power connector
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 2 x Ready-to-Use USB 2.0 Ports
  • 4 x Ready-to-Use USB 3.1 Gen1 Ports
  • 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Line in / Front Speaker / Microphone
    		•
    Request for Quote:  ASR-B75M-GL

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no ASR-B75M-GL. Or Request a Quote below:



    General Information

  • ASR-B75M-GL ASRock B75M-GL Socket LGA 1155 Intel B75 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 2x DIMM 1x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)
    • Special Sale & Discount with Free Ground Shipping
