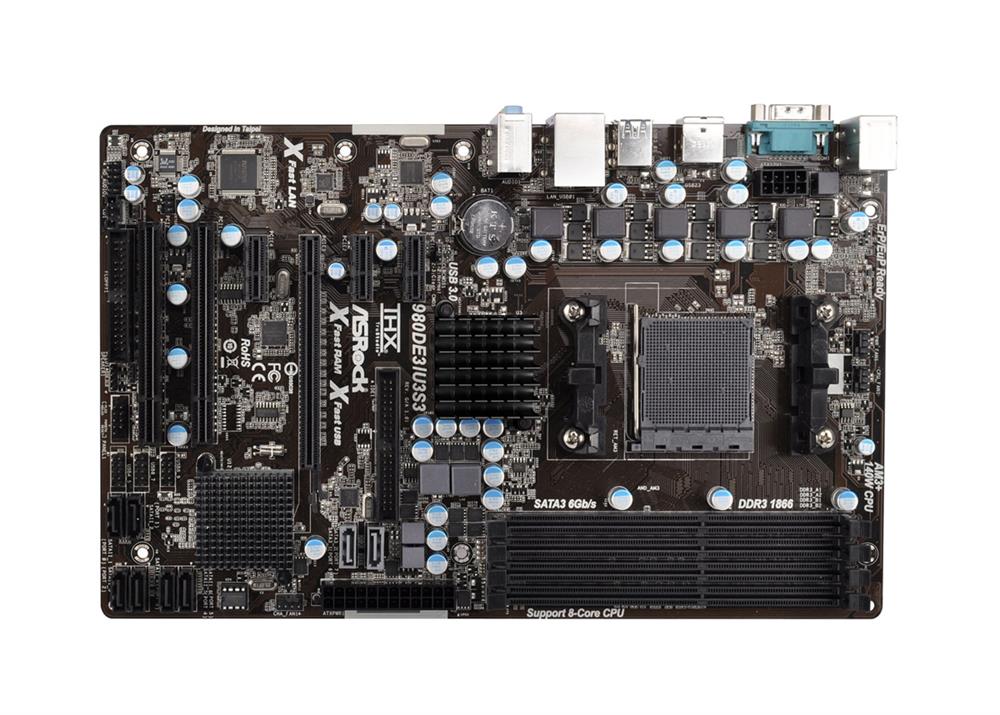

ASR-980DE3/U3S3 ASRock Socket AM3+ AMD 760G + SB710 Chipset AMD Phenom II X6/ II X4/ II X3/ II X2/ AMD Athlon II X4/ II X3/ II X2/ AMD Sempron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

ASR-980DE3/U3S3

Global Part Number (GPN):

1476513901

$310.74 $690.54 You Save: $379.80 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of ASR-980DE3/U3S3? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for ASR-980DE3/U3S3

Model
Manufacturer	ASRock
Manufacturer Part #	ASR-980DE3/U3S3
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket AM3+
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor AMD Sempron Processor
Supported CPU Technologies	Demand Based Switching
Chipset	AMD 760G
South Bridge Chipset	AMD SB710
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-6400 (DDR3-800) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32GB
Expansion Slots	PCI-E 2.0 x16
Expansion Slots Details	1 x PCI Express 2.0 x16 slot (PCIE3 @ x16 mode) 3 x PCI Express 2.0 x1 slots 2 x PCI slots
Storage Controller	(ATA-7) Ultra ATA/133 SATA 3.0 Gbps SATA 6.0 Gbps
Storage Controller Details	6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug 1 x ATA133 IDE connector (supports 2 x IDE devices)
Audio Controller	Realtek ALC662
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 Serial USB 2.0 USB 3.1
Connectors/Ports Details	Connector 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug 1 x ATA133 IDE connector (supports 2 x IDE devices) 1 x Floppy connector 1 x IR header 1 x HDMI_SPDIF header 1 x Power LED header 1 x CPU Fan connector (4-pin) 1 x Chassis Fan connector (4-pin) 1 x Power Fan connector (4-pin) 24 pin ATX power connector 8 pin 12V power connector CD in header Front panel audio connector 3 x USB 2.0 headers (support 6 USB 2.0 ports) 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (Etron EJ188) Back I/O Connectors 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Serial Port: COM1 4 x USB 2.0 Ports 2 x USB 3.1 Gen1 Ports (Etron EJ188) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jack Line in / Front Speaker / Microphone

Request for Quote: ASR-980DE3/U3S3

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no ASR-980DE3/U3S3. Or Request a Quote below:

Quantity

How soon you need it?

General Information

ASR-980DE3/U3S3 ASRock Socket AM3+ AMD 760G + SB710 Chipset AMD Phenom II X6/ II X4/ II X3/ II X2/ AMD Athlon II X4/ II X3/ II X2/ AMD Sempron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
