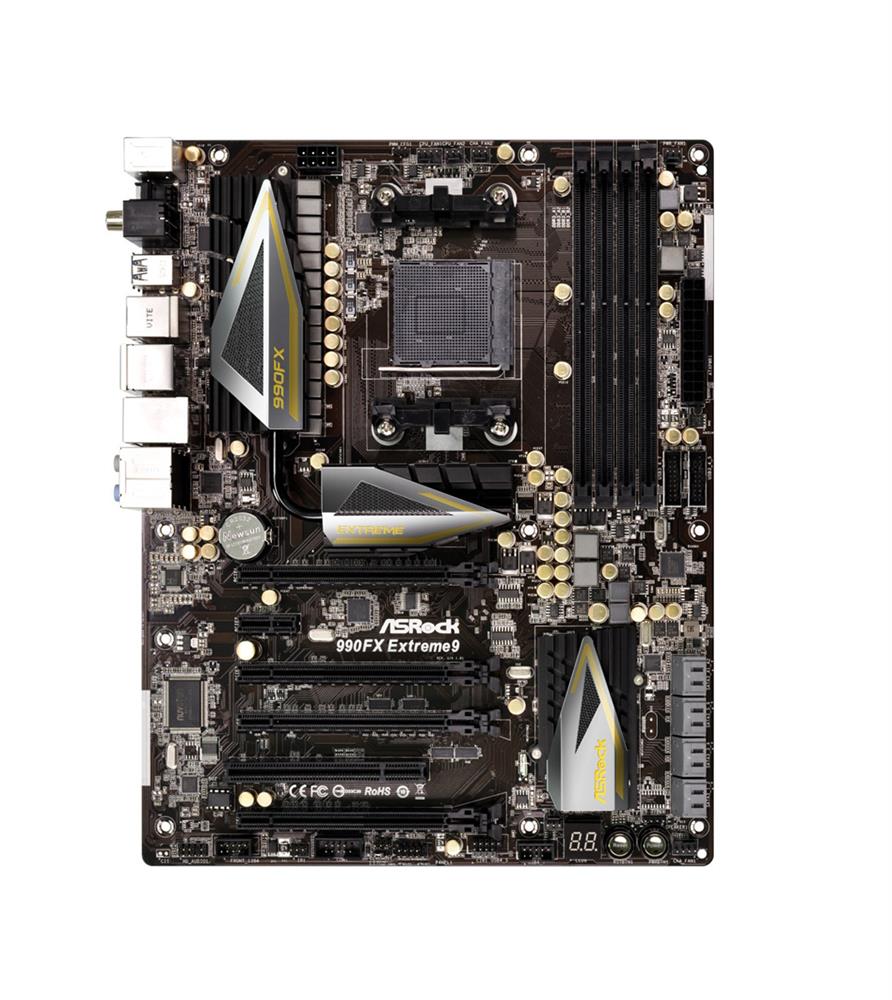

990FX-EXTREME9 ASRock Socket AM3+/ AM3 AMD 990FX/ SB950 Chipset AMD Phenom II X6/ X4/ X3/ X2 AMD Athlon II X4/ X3/ X2 AMD Sempron Processors Support DDR3 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

990FX-EXTREME9

$356.39 $509.12 You Save: $152.73 (30% Winter Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of 990FX-EXTREME9? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for 990FX-EXTREME9

Model
Manufacturer	ASRock
Manufacturer Part #	990FX-EXTREME9
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket AM3+
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor AMD Sempron Processor
Supported CPU Technologies	Cool n Quiet Technology
Chipset	AMD 990FX
South Bridge Chipset	AMD SB950
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-8500 (DDR3-1066)
Maximum Installed Memory	64GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 2.0 x4 PCI-E 2.0 x8
Expansion Slots Details	PCI Express 2.0 x 16 : 3 (x16 / x16 / 0 or x16 / x8 / x8) 1 (x4 mode) 1 x PCI Express 2.0 x1 slot 1 x PCI slot Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX Supports NVIDIA Quad SLI, 3-Way SLI and SLI
Storage Controller	SATA 6.0 Gbps
Storage Controller Details	6 x SATA3 6.0 Gb/s connectors by AMD SB950, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug functions 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions
Audio Controller	Realtek ALC898
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Chassis Fan Connector COM CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 2.0 USB 3.1
Connectors/Ports Details	Connectors 8 x SATA3 6.0 Gb/s connectors 1 x IR header 1 x CIR header 1 x COM port header 1 x IEEE 1394 header 1 x Power LED header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) 1 x Power Fan connector (3-pin) 24 pin ATX power connector 8 pin 12V power connector (Hi-Density Power Connector) Front panel audio connector 2 x USB 2.0 headers (support 4 USB 2.0 ports) 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports) 1 x Dr. Debug (7-Segment Debug LED)* 1 x Power Switch with LED 1 x Reset Switch with LED Rear Panel I/O 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Coaxial SPDIF Out Port 1 x Optical SPDIF Out Port 4 x Ready-to-Use USB 2.0 Ports 4 x Ready-to-Use USB 3.1 Gen1 Ports 2 x eSATA3 Connectors 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x IEEE 1394 Port 1 x Clear CMOS Switch with LED HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Information
Features	ASRock APP Charger ASRock APP Shop ASRock XFast USB ASRock XFast LAN ASRock XFast RAM ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock Internet Flash ASRock UEFI System Browser ASRock Dehumidifier Function ASRock Easy RAID Installer ASRock Fast Boot ASRock X-Boost

Request for Quote: 990FX-EXTREME9

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 990FX-EXTREME9. Or Request a Quote below:

Quantity

How soon you need it?

General Information

990FX-EXTREME9 ASRock Socket AM3+/ AM3 AMD 990FX/ SB950 Chipset AMD Phenom II X6/ X4/ X3/ X2 AMD Athlon II X4/ X3/ X2 AMD Sempron Processors Support DDR3 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
