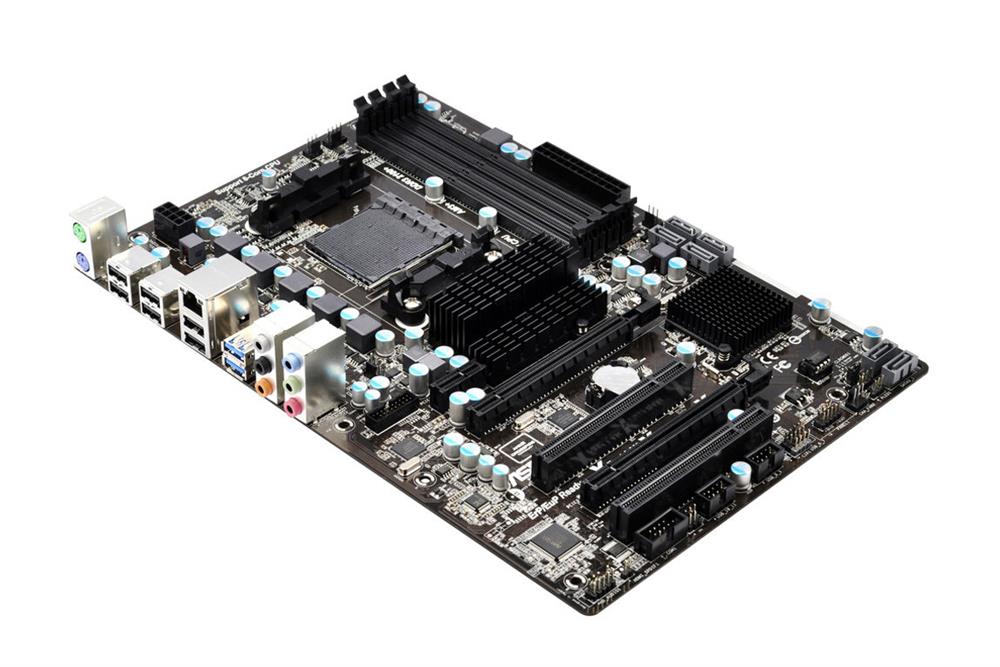

970-PRO-BO-R ASRock Socket AM3+ AMD 770 + SB710 Chipset AMD Phenom II X6/ II X4/ II X3/ II X2/ AMD Athlon II X4/ II X3/ II X2/ AMD Sempron Processors Support DDR3 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
970-PRO-BO-R ASRock Socket AM3+ AMD 770 + SB710 Chipset AMD Phenom II X6/ II X4/ II X3/ II X2/ AMD Athlon II X4/ II X3/ II X2/ AMD Sempron Processors Support DDR3 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

970-PRO-BO-R ASRock Socket AM3+ AMD 770 + SB710 Chipset AMD Phenom II X6/ II X4/ II X3/ II X2/ AMD Athlon II X4/ II X3/ II X2/ AMD Sempron Processors Support DDR3 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

970-PRO-BO-R

Icon Global Part Number (GPN):

1475309138

$319.96 $711.02 You Save: $391.06 (55% Special Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of 970-PRO-BO-R? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 970-PRO-BO-R

Model
Manufacturer ASRock
Manufacturer Part # 970-PRO-BO-R
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type Socket AM3
 Socket AM3+
Supported CPU(s) AMD Athlon II Processor
 AMD Phenom II Processor
 AMD Sempron Processor
Chipset AMD 770
South Bridge Chipset AMD SB710
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-6400 (DDR3-800)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16 GB
Expansion Slots PCI
 PCI-E 2.0 x1
 PCI-E 2.0 x16
Storage Controller SATA 3.0 Gbps
Audio Controller Realtek ALC662
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Audio-In
 Chassis Fan Connector
 COM
 CPU Fan Connector
 Microphone
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
Connectors/Ports Details Connector
  • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, and JBOD), NCQ, AHCI and Hot Plug functions
  • IR header
  • 1 x Power LED header
  • 1 x CPU Fan connector (4-pin)
  • 1 x Chassis Fan connector (3-pin)
  • 1 x Power Fan connector (3-pin)
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Serial Port: COM1
  • 6 x Ready-to-Use USB 2.0 Ports
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Line in / Front Speaker / Microphone
    		•
    Request for Quote:  970-PRO-BO-R

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 970-PRO-BO-R. Or Request a Quote below:



    General Information

  • 970-PRO-BO-R ASRock Socket AM3+ AMD 770 + SB710 Chipset AMD Phenom II X6/ II X4/ II X3/ II X2/ AMD Athlon II X4/ II X3/ II X2/ AMD Sempron Processors Support DDR3 4x DIMM 6x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
