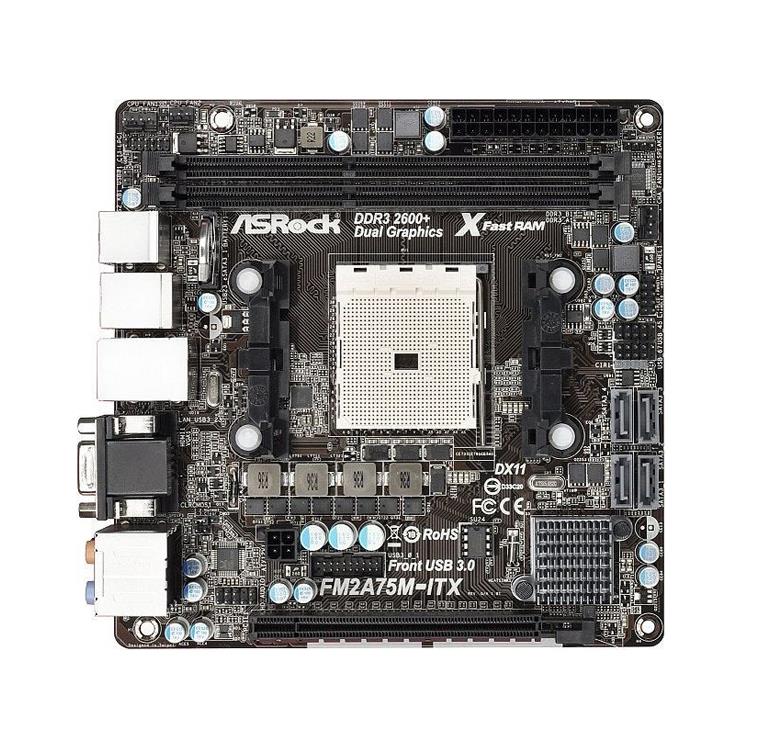

90-MXGNR0-A0UAYZ ASRock FM2A75M-ITX Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 2x DIMM 4x SATA3 6.0Gb/s Mini-ITX Motherboard (Refurbished)
90-MXGNR0-A0UAYZ ASRock FM2A75M-ITX Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 2x DIMM 4x SATA3 6.0Gb/s Mini-ITX Motherboard (Refurbished)

90-MXGNR0-A0UAYZ ASRock FM2A75M-ITX Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 2x DIMM 4x SATA3 6.0Gb/s Mini-ITX Motherboard (Refurbished)

Mfg Part No:

90-MXGNR0-A0UAYZ

Icon Global Part Number (GPN):

1471912340

$391.06 $869.02 You Save: $477.96 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of 90-MXGNR0-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXGNR0-A0UAYZ

Model
Manufacturer ASRock
Manufacturer Part # 90-MXGNR0-A0UAYZ
Performance
Product Type System Board
Form Factor Mini-ITX
CPU Socket Type Socket FM1
Supported CPU(s) AMD A4-Series
 AMD A6-Series
 AMD A8-Series
Chipset AMD A75
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-12800 (DDR4-1600)
 PC4-14900 (DDR4-1866)
 PC4-19200 (DDR4-2400)
Maximum Installed Memory 16 GB
Expansion Slots PCI-E 2.0 x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports Chassis Fan Connector
 COM
 CPU Fan Connector
 Microphone
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
Connectors/Ports Details Connector
  • 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions
  • 1 x CIR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • CPU/Chassis FAN connector
  • 24 pin ATX power connector
  • 4 pin 12V power connector
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports
  • 1 x eSATA3 Connector
  • 4 x USB 3.1 Gen1 Ports
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  90-MXGNR0-A0UAYZ

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXGNR0-A0UAYZ. Or Request a Quote below:



    General Information

  • 90-MXGNR0-A0UAYZ ASRock FM2A75M-ITX Socket FM2 AMD A75 Chipset 100W Processors Support DDR3 2x DIMM 4x SATA3 6.0Gb/s Mini-ITX Motherboard (Refurbished)
