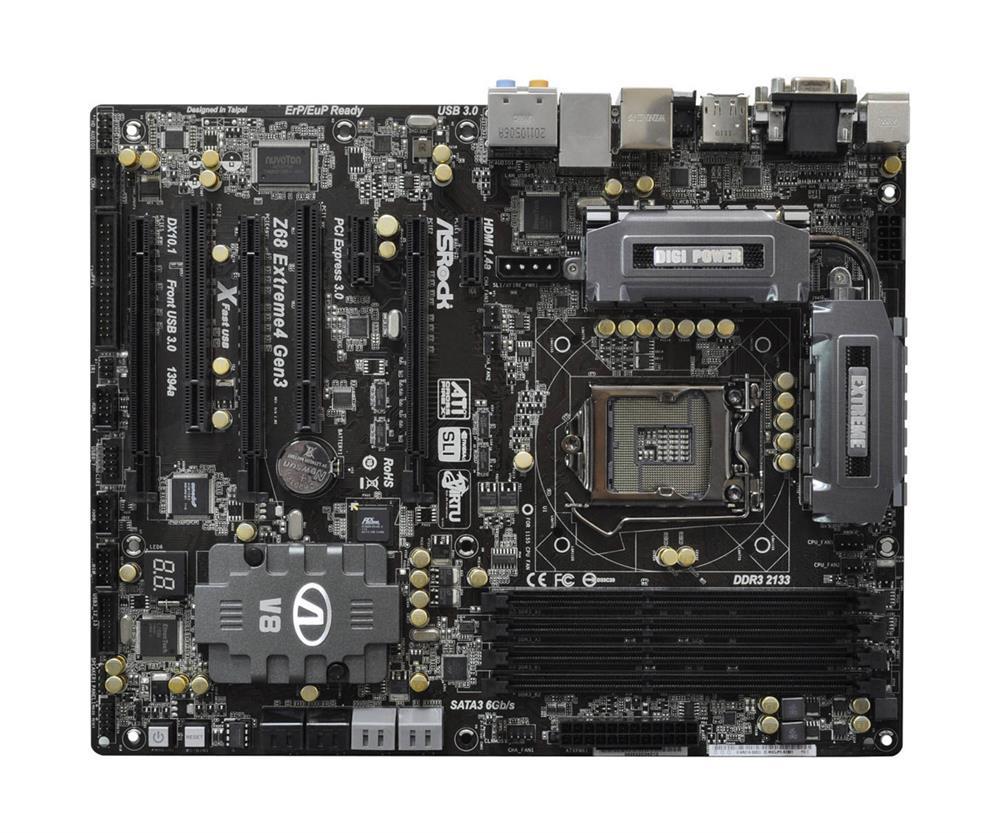

90-MXGJP0-A0UAYZ ASRock Z68 Extreme4 Gen3 Socket LGA 1155 Intel Z68 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s ATX Motherboard (Refurbished)

90-MXGJP0-A0UAYZ ASRock Z68 Extreme4 Gen3 Socket LGA 1155 Intel Z68 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MXGJP0-A0UAYZ

$259.83 $371.19 You Save: $111.36 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of 90-MXGJP0-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXGJP0-A0UAYZ

Model
Manufacturer ASRock
Manufacturer Part # 90-MXGJP0-A0UAYZ
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1155
Supported CPU(s) Intel Celeron Processor
Intel Core i3 Processor
Intel Core i5 Processor
Intel Core i7 Processor
Intel Pentium Processor
Intel Xeon Processor
Supported CPU Technologies Hyper-Threading Technology
Chipset Intel Z68 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-14900 (DDR3-1866)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x1
PCI-E 2.0 x16
PCI-E 3.0 x16
Storage Controller SATA 3.0 Gbps
SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
8-pin 12V Power Connector
Audio-In
Chassis Fan Connector
COM
CPU Fan Connector
D-Sub
DVI-D
eSATA
Microphone
PS/2 Keyboard
RJ-45
USB 2.0
USB 3.1
Connectors/Ports Details Connector
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
  • 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
  • 2 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ, AHCI and Hot Plug functions (SATA3_M2 connector is shared with eSATA3 port)
  • 1 x Floppy connector
  • 1 x IR header
  • 1 x CIR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x IEEE 1394 header
  • 1 x Power LED header
  • CPU/Chassis/Power FAN connector
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • SLI/XFire power connector
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (Etron EJ168A)
  • 1 x Dr. Debug with LED*

  • Rear Panel I/O
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x DisplayPort
  • 1 x Optical SPDIF Out Port
  • 4 x USB 2.0 Ports
  • 1 x eSATA3 Connector
  • 2 x USB 3.1 Gen1 Ports (Etron EJ168A)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 1 x IEEE 1394 Port
  • 1 x Clear CMOS Switch with LED
  • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Request for Quote:  90-MXGJP0-A0UAYZ

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXGJP0-A0UAYZ. Or Request a Quote below:



    General Information

  • 90-MXGJP0-A0UAYZ ASRock Z68 Extreme4 Gen3 Socket LGA 1155 Intel Z68 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 4x SATA2 3.0Gb/s ATX Motherboard (Refurbished)
