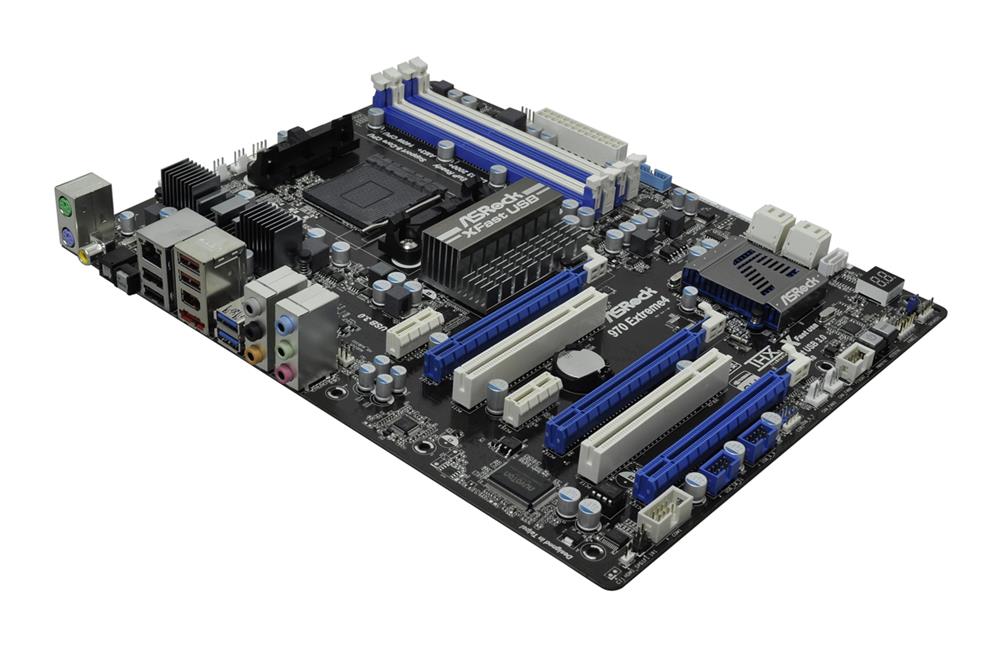

90-MXGIP0-A0UAYZ ASRock Socket AM3+/ AM3 AMD 970/SB950 Chipset AMD Phenom II X6/X4/X3/X2/ Athlon II X4/X3/X2 / Sempron Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
90-MXGIP0-A0UAYZ ASRock Socket AM3+/ AM3 AMD 970/SB950 Chipset AMD Phenom II X6/X4/X3/X2/ Athlon II X4/X3/X2 / Sempron Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

90-MXGIP0-A0UAYZ ASRock Socket AM3+/ AM3 AMD 970/SB950 Chipset AMD Phenom II X6/X4/X3/X2/ Athlon II X4/X3/X2 / Sempron Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MXGIP0-A0UAYZ

Icon Global Part Number (GPN):

1471912266

$330.49 $734.43 You Save: $403.94 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of 90-MXGIP0-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXGIP0-A0UAYZ

Model
Manufacturer ASRock
Manufacturer Part # 90-MXGIP0-A0UAYZ
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type Socket AM3
 Socket AM3+
Supported CPU(s) AMD Athlon II Processor
 AMD Phenom II Processor
 AMD Sempron Processor
Chipset AMD 970
South Bridge Chipset AMD SB950
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-14900 (DDR3-1866)
 PC3-6400 (DDR3-800)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E 2.0 x16
 PCI-E 2.0 x4
 PCI-E 2.0 x8
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Chassis Fan Connector
 COM
 CPU Fan Connector
 Microphone
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
 USB 3.1
 VGA
Connectors/Ports Details Connector
  • 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug functions
  • 1 x IR header
  • 1 x CIR header
  • 1 x COM port header
  • 1 x IEEE 1394 header
  • 1 x HDMI_SPDIF header
  • 1 x Power LED header
  • CPU/Chassis/Power FAN connector
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (Asmedia ASM1042)
  • 1 x Dr. Debug (7-Segment Debug LED)*

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Coaxial SPDIF Out Port
  • 1 x Optical SPDIF Out Port
  • 4 x USB 2.0 Ports
  • 1 x eSATA3 Connector
  • 2 x USB 3.1 Gen1 Ports (Asmedia ASM1042)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 1 x IEEE 1394 Port
  • 1 x Clear CMOS Switch with LED
  • HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  90-MXGIP0-A0UAYZ

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXGIP0-A0UAYZ. Or Request a Quote below:



    General Information

  • 90-MXGIP0-A0UAYZ ASRock Socket AM3+/ AM3 AMD 970/SB950 Chipset AMD Phenom II X6/X4/X3/X2/ Athlon II X4/X3/X2 / Sempron Processors Support DDR3 4x DIMM 5x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
