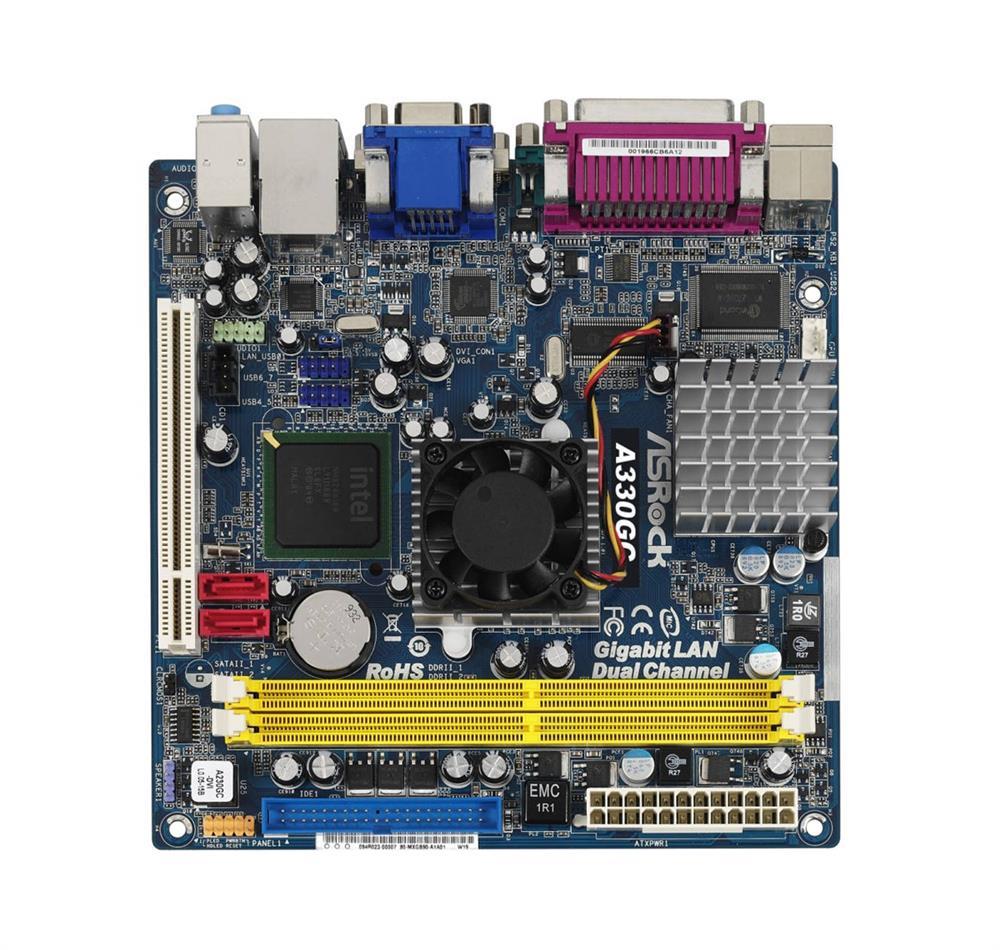

90-MXGB20-A0UAYZ ASRock A330GC Intel 945GC + ICH7 Chipset Intel Atom 330 Dual-Core Processors Support DDR2 2x DIMM 2x SATA2 3.0Gb/s Mini-ITX Motherboard (Refurbished)
90-MXGB20-A0UAYZ ASRock A330GC Intel 945GC + ICH7 Chipset Intel Atom 330 Dual-Core Processors Support DDR2 2x DIMM 2x SATA2 3.0Gb/s Mini-ITX Motherboard (Refurbished)

90-MXGB20-A0UAYZ ASRock A330GC Intel 945GC + ICH7 Chipset Intel Atom 330 Dual-Core Processors Support DDR2 2x DIMM 2x SATA2 3.0Gb/s Mini-ITX Motherboard (Refurbished)

Mfg Part No:

90-MXGB20-A0UAYZ

Icon Global Part Number (GPN):

1456505185

$203.07 $451.26 You Save: $248.19 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of 90-MXGB20-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXGB20-A0UAYZ

Model
Manufacturer ASRock
Manufacturer Part # 90-MXGB20-A0UAYZ
Performance
Product Type System Board
Form Factor Mini-ITX
Supported CPU(s) Intel Atom Processor
FSB Speed (Maximum) 533 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipset Intel 945GC Express
South Bridge Chipset Intel ICH7
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC2-4200 (DDR2-533)
Maximum Installed Memory 4 GB
Expansion Slots PCI-E x1
Storage Controller SATA 3.0 Gbps
On-Board Video Controller Intel Graphics Media Accelerator 950
Shared Video Memory 224 MB
Audio Controller Realtek ALC662
Network Gigabit Ethernet
Connectors/Ports Chassis Fan Connector
 CPU Fan Connector
 Parallel
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 Serial
 USB 3.0
Connectors/Ports Details Connector
  • 2 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
  • 1 x ATA100 IDE connector (supports 2 x IDE devices)
  • CPU/Chassis FAN connector
  • 24 pin ATX power connector
  • CD in header
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)

    • I/O Panel
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Parallel Port (ECP/EPP support)
  • 1 x Serial Port: COM1
  • 1 x VGA Port
  • 4 x Ready-to-Use USB 2.0 Ports
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Line in / Front Speaker / Microphone
    		•
    Request for Quote:  90-MXGB20-A0UAYZ

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXGB20-A0UAYZ. Or Request a Quote below:



    General Information

  • 90-MXGB20-A0UAYZ ASRock A330GC Intel 945GC + ICH7 Chipset Intel Atom 330 Dual-Core Processors Support DDR2 2x DIMM 2x SATA2 3.0Gb/s Mini-ITX Motherboard (Refurbished)
