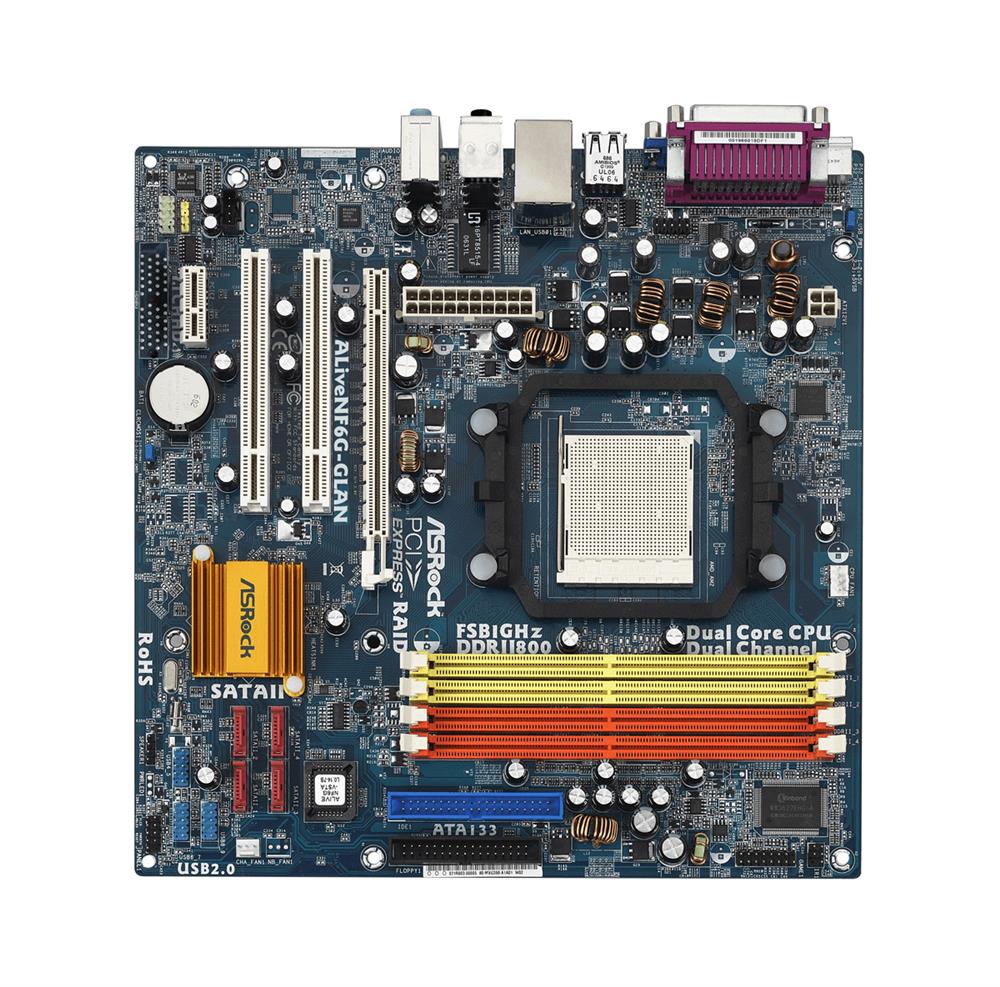

90-MXG7E0-A0UAYZ ASRock ALiveNF6G-GLAN Socket AM2+/AM2 Nvidia GeForce 6150SE + nForce 430 Chipset AMD Phenom FX/ Athlon 64/ 64 X2 Dual-Core/ Athlon X2 Dual-Core/ Athlon 64 Processors Support DDR2 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
90-MXG7E0-A0UAYZ ASRock ALiveNF6G-GLAN Socket AM2+/AM2 Nvidia GeForce 6150SE + nForce 430 Chipset AMD Phenom FX/ Athlon 64/ 64 X2 Dual-Core/ Athlon X2 Dual-Core/ Athlon 64 Processors Support DDR2 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

90-MXG7E0-A0UAYZ ASRock ALiveNF6G-GLAN Socket AM2+/AM2 Nvidia GeForce 6150SE + nForce 430 Chipset AMD Phenom FX/ Athlon 64/ 64 X2 Dual-Core/ Athlon X2 Dual-Core/ Athlon 64 Processors Support DDR2 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

90-MXG7E0-A0UAYZ

Icon Global Part Number (GPN):

1471912257

$205.38 $456.41 You Save: $251.03 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of 90-MXG7E0-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXG7E0-A0UAYZ

Model
Manufacturer ASRock
Manufacturer Part # 90-MXG7E0-A0UAYZ
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type Socket AM2
 Socket AM2+
Supported CPU(s) AMD Athlon 64 FX Processor
 AMD Athlon X2 Dual-Core Processor
 AMD Phenom FX Processor
 AMD Sempron Processor
Chipset NVIDIA nForce 430
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC2-4300 (DDR2-533)
 PC2-5400 (DDR2-667)
 PC2-6400 (DDR2-800)
 PC2-8500 (DDR2-1066)
Maximum Installed Memory 16 GB
Expansion Slots PCI
 PCI-E x1
 PCI-E x16
Storage Controller SATA 3.0 Gbps
Audio Controller Realtek ALC662
Network Gigabit Ethernet
Connectors/Ports Chassis Fan Connector
 COM
 CPU Fan Connector
 Parallel
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
Connectors/Ports Details Connector
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
  • 1 x ATA133 IDE connector (supports 2 x IDE devices)
  • 1 x Floppy connector
  • 1 x IR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • CPU/Chassis FAN connector
  • 20 pin ATX power connector
  • 4 pin 12V power connector
  • CD in header
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x VGA Port
  • 1 x Parallel Port (ECP/EPP support)
  • 4 x Ready-to-Use USB 2.0 Ports
  • 1 x RJ-45 Port
  • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  90-MXG7E0-A0UAYZ

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXG7E0-A0UAYZ. Or Request a Quote below:



    General Information

  • 90-MXG7E0-A0UAYZ ASRock ALiveNF6G-GLAN Socket AM2+/AM2 Nvidia GeForce 6150SE + nForce 430 Chipset AMD Phenom FX/ Athlon 64/ 64 X2 Dual-Core/ Athlon X2 Dual-Core/ Athlon 64 Processors Support DDR2 4x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
