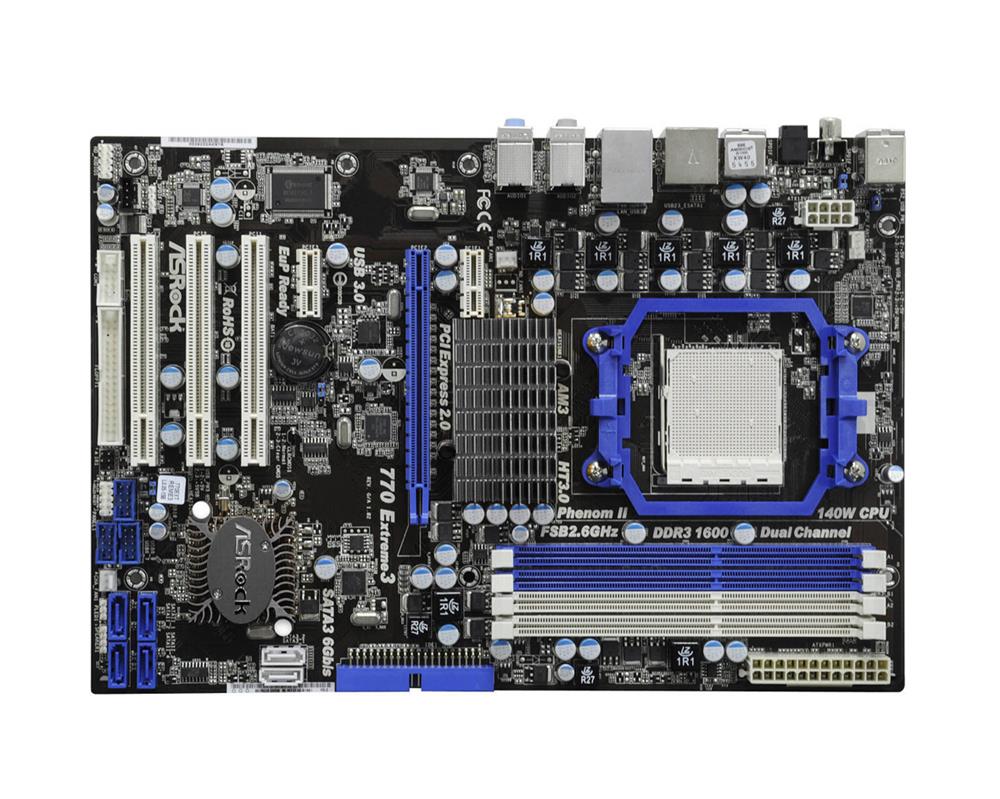

770-EXTREME3-BO-R ASRock Socket AM3 AMD 770/ SB710 Chipset DDR3 4x DIMM 2x SATA3 6.0Gb/s / 4x SATA2 3.0 Gb/s ATX Motherboard (Refurbished)
770-EXTREME3-BO-R ASRock Socket AM3 AMD 770/ SB710 Chipset DDR3 4x DIMM 2x SATA3 6.0Gb/s / 4x SATA2 3.0 Gb/s ATX Motherboard (Refurbished)

770-EXTREME3-BO-R ASRock Socket AM3 AMD 770/ SB710 Chipset DDR3 4x DIMM 2x SATA3 6.0Gb/s / 4x SATA2 3.0 Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

770-EXTREME3-BO-R

Icon Global Part Number (GPN):

1475392370

$191.88 $426.41 You Save: $234.53 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of 770-EXTREME3-BO-R? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 770-EXTREME3-BO-R

Model
Manufacturer ASRock
Manufacturer Part # 770-EXTREME3-BO-R
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type Socket AM3
Supported CPU(s) AMD Athlon II Processor
 AMD Phenom II Processor
 AMD Phenom X3 Processor
Chipset AMD 770
South Bridge Chipset AMD SB710
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-6400 (DDR3-800)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
Expansion Slots Details
  • 1 x PCI Express 2.0 x16 slot (blue x16 mode)
  • 2 x PCI Express 2.0 x1 slots
  • 3 x PCI slots
    		•
    Storage Controller SATA 3.0 Gbps
     SATA 6.0 Gbps
    Audio Controller Realtek ALC892
    Network Gigabit Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     8-pin 12V Power Connector
     Audio-In
     Audio-Out
     Chassis Fan Connector
     COM
     CPU Fan Connector
     eSATA
     HDMI
     RJ-45
     Serial
     TPM Header
     USB 2.0
    Connectors/Ports Details Connector
  • 2 x SATA3 6.0 Gb/s connectors by Marvell SE9123, support NCQ, AHCI and Hot Plug functions
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
  • 1 x ATA133 IDE connector (supports 2 x IDE devices)
  • 1 x Floppy connector
  • 1 x IR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x Power LED header
  • CPU/Chassis/Power FAN connector
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • CD in header
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)

    • Rear Panel I/O Connectors
  • 2 x SATA3 6.0 Gb/s connectors by Marvell SE9123, support NCQ, AHCI and Hot Plug functions
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
  • 1 x ATA133 IDE connector (supports 2 x IDE devices)
  • 1 x Floppy connector
  • 1 x IR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x Power LED header
  • CPU/Chassis/Power FAN connector
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • CD in header
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
    		•
    Request for Quote:  770-EXTREME3-BO-R

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 770-EXTREME3-BO-R. Or Request a Quote below:



    General Information

  • 770-EXTREME3-BO-R ASRock Socket AM3 AMD 770/ SB710 Chipset DDR3 4x DIMM 2x SATA3 6.0Gb/s / 4x SATA2 3.0 Gb/s ATX Motherboard (Refurbished)
