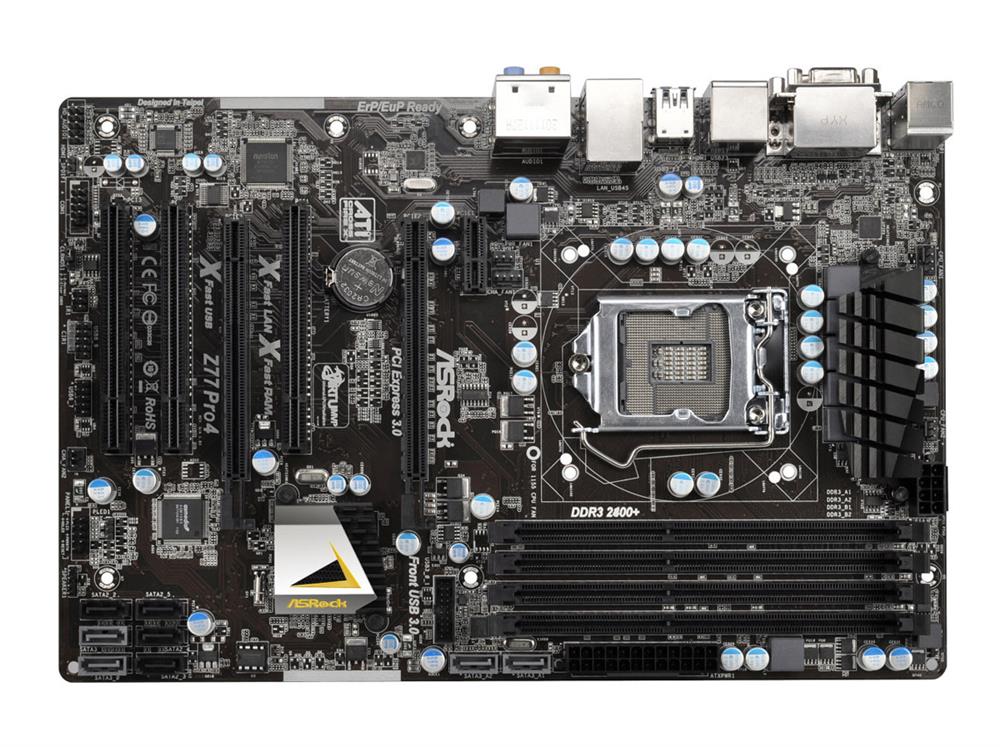

Z77-PRO4-M ASRock Z77 Pro4-M Socket LGA 1155 Intel Z77 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)
Z77-PRO4-M ASRock Z77 Pro4-M Socket LGA 1155 Intel Z77 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Z77-PRO4-M ASRock Z77 Pro4-M Socket LGA 1155 Intel Z77 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

Z77-PRO4-M

$197.59 $282.27 You Save: $84.68 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of Z77-PRO4-M? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for Z77-PRO4-M

Model
Manufacturer ASRock
Manufacturer Part # Z77-PRO4-M
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1155
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
 Intel Xeon Processor
Supported CPU Technologies Hyper-Threading Technology
 Intel Turbo Boost Technology
Chipset Intel Z77 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-14900 (DDR3-1866)
 PC3-19200 (DDR3-2400)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
 PCI-E 3.0 x16
Storage Controller SATA 3.0 Gbps
 SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports Audio-In
 Audio-Out
 Chassis Fan Connector
 COM
 CPU Fan Connector
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
 USB 3.1
Connectors/Ports Details Connector
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
  • 4 x SATA3 6.0 Gb/s connectors
  • 1 x IR header
  • 1 x CIR header
  • 1 x Print Port header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x Power LED header
  • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 1 x Power Fan connector (3-pin)
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

    • Rear Panel I/O
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 4 x Ready-to-Use USB 2.0 Ports
  • 1 x eSATA3 Connector
  • 2 x Ready-to-Use USB 3.1 Gen1 Ports
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  Z77-PRO4-M

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z77-PRO4-M. Or Request a Quote below:



    General Information

  • Z77-PRO4-M ASRock Z77 Pro4-M Socket LGA 1155 Intel Z77 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)
